2003 Suzuki GSX-R600 Rear Wheel Diagram

← All diagrams

Find the part on the Rear Wheel diagram for your 2003 Suzuki GSX-R600, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

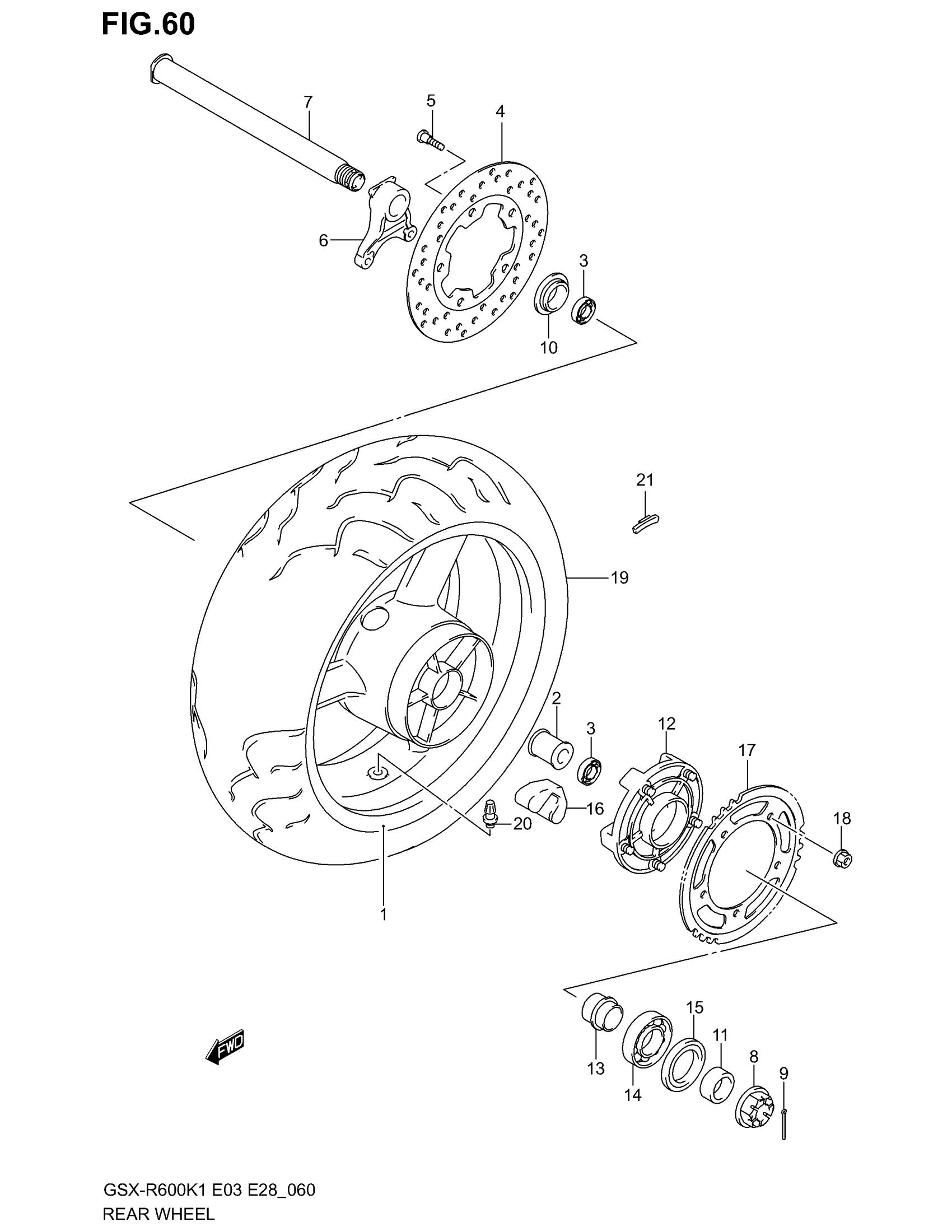

2003 Suzuki GSX-R600 Rear Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

WHEEL, REAR (17M/CXMT5.50) (BLACK) | MODEL K1 FOR BP9 MODEL K2 FOR BP9,GZ8 GSX-R600K3 FOR CT5,KU2 This part replaces 64111-35F00-019.

64111-35F01-019

1
Out of stock

1

WHEEL,RR,17M/CX | MODEL K1/K2 FOR L99 GSX-R600K3 FOR LR5 This part replaces 64111-35F00-28W.

64111-35F01-28W

1
Out of stock

1

NO DESCRIPTION AVAILABLE | GSX-R600ZK3 FOR LS6 This part replaces 64111-35F00-19T.

64111-35F01-19T

1
Out of stock

2

SPACER,RR HUB BEARING This part replaces 64731-35F00.

64731-35F10

1
Out of stock

3

BEARING This part replaces 09262-28043.

09262-28063

2
Out of stock

4

DISC, REAR BRAKE | MODEL K1

69211-33E00

1
Out of stock

4

DISC, REAR BRAKE | MODEL K2/K3

69211-33E10

1
Out of stock

5

BOLT

09106-08148

5
Out of stock

6

BRACKET, REAR CALIPER

69721-35F00

1
Out of stock

7

AXLE, REAR

64711-33E10

1
Out of stock

8

NUT

09141-25001

1
Out of stock

9

PIN, COTTER This part replaces 04111-40408.

04111-4040A

1
Out of stock

10

SPACER, AXLE RH

64740-35F00

1
Out of stock

11

SPACER, AXLE LH

64751-35F00

1
Out of stock

12

DRUM, RR SPROCKET | MODEL K1 This part replaces 64610-35F00.

64610-35F40

1
Out of stock

12

DRUM, RR SPROCKET | MODEL K2/K3 This part replaces 64610-35F10.

64610-35F40

1
Out of stock

13

RETAINER, SPROCKET DRUM

64733-35F00

1
Out of stock

14

BEARING (32X65X17) This part replaces 09262-32007.

09262-32024

1
Out of stock

15

SEAL (39X65X7)

09285-39001

1
Out of stock

16

ABSORBER, HUB SHOCK

64651-35F00

5
Out of stock

17

SPROCKET,REAR,45T-525 (NT:45)

64511-39F00

1
Out of stock

18

NUT

08319-31107

5
Out of stock

19

TIRE, REAR,180/55 ZR17 (73W) (DUNLOP)

65110-39F10

1
Out of stock

20

VALVE ASSY, WHEEL RIM (TR412)

43130-24A00

1
Out of stock

21

BALANCER (10G) This part replaces 43232-82000.

43222-73H10

1
Out of stock

21

BALANCER (20G) This part replaces 43234-82000.

43224-73H10

1
Out of stock

21

BALANCER (30G) This part replaces 43236-82000.

43226-73H10

1
Out of stock
