2003 Suzuki GSX-R600 Handle Lever Diagram

← All diagrams

Find the part on the Handle Lever diagram for your 2003 Suzuki GSX-R600, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

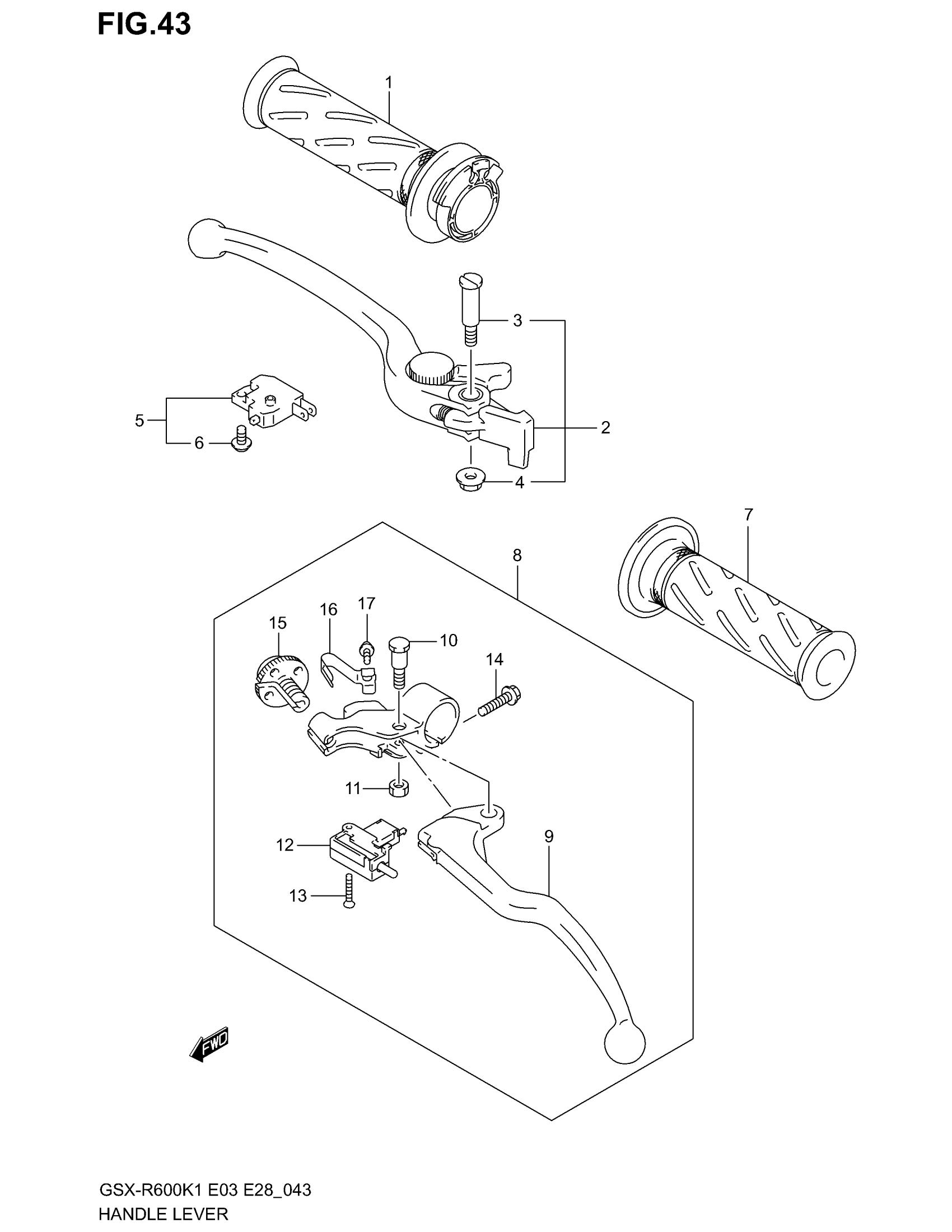

2003 Suzuki GSX-R600 Handle Lever Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GRIP,THROTTLE This part replaces 57110-46E01.

57110-46E02

1
Out of stock

2

LEVER ASSY, BRAKE | Includes Item(s) 3 - 4

57300-33E01

1
Out of stock

3

BOLT, KNOCKER

57431-17C00

1
Out of stock

4

NUT This part replaces 08316-10063.

08316-1006B

1
Out of stock

5

SWITCH ASSY,FR BRAKE | Includes Item(s) 6 This part replaces 57460-17C00.

57460-14J02

1
Out of stock

6

SCREW

57465-17C00

1
Out of stock

7

GRIP, LH (BLACK) This part replaces 57211-22D01.

57211-22D02-291

1
Out of stock

8

LEVER ASSY,CLUT | MODEL K1 This part replaces 57500-33E21.

57500-40F11

1
Out of stock

8

LEVER ASSY,CLUT | MODEL K2/K3; Includes Item(s) 9 - 17 This part replaces 57500-40F00.

57500-40F11

1
Out of stock

9

LEVER ASSY, CLUTCH | MODEL K1 This part replaces 57621-33E01.

57621-40F00

1
Out of stock

9

LEVER, CLUTCH | MODEL K2/K3

57621-40F00

1
Out of stock

10

..BOLT,LEVER PIVOT This part replaces 57431-45C01.

57431-21D11

1
Out of stock

11

.NUT This part replaces 08319-21063.

08319-2106B

1
Out of stock

12

.SWITCH,CLUTCH

57560-05A00

1
Out of stock

13

SCREW This part replaces 02122-03208.

02122-0320A

1
Out of stock

14

..BOLT This part replaces 01547-06203.

01547-0620B

1
Out of stock

15

.NUT, CABLE ADJUSTER This part replaces 57641-33E20.

57641-33E21

1
Out of stock

16

SPRING

57644-33E00

1
Out of stock

17

SCREW, SPRING

57642-33E00

1
Out of stock
