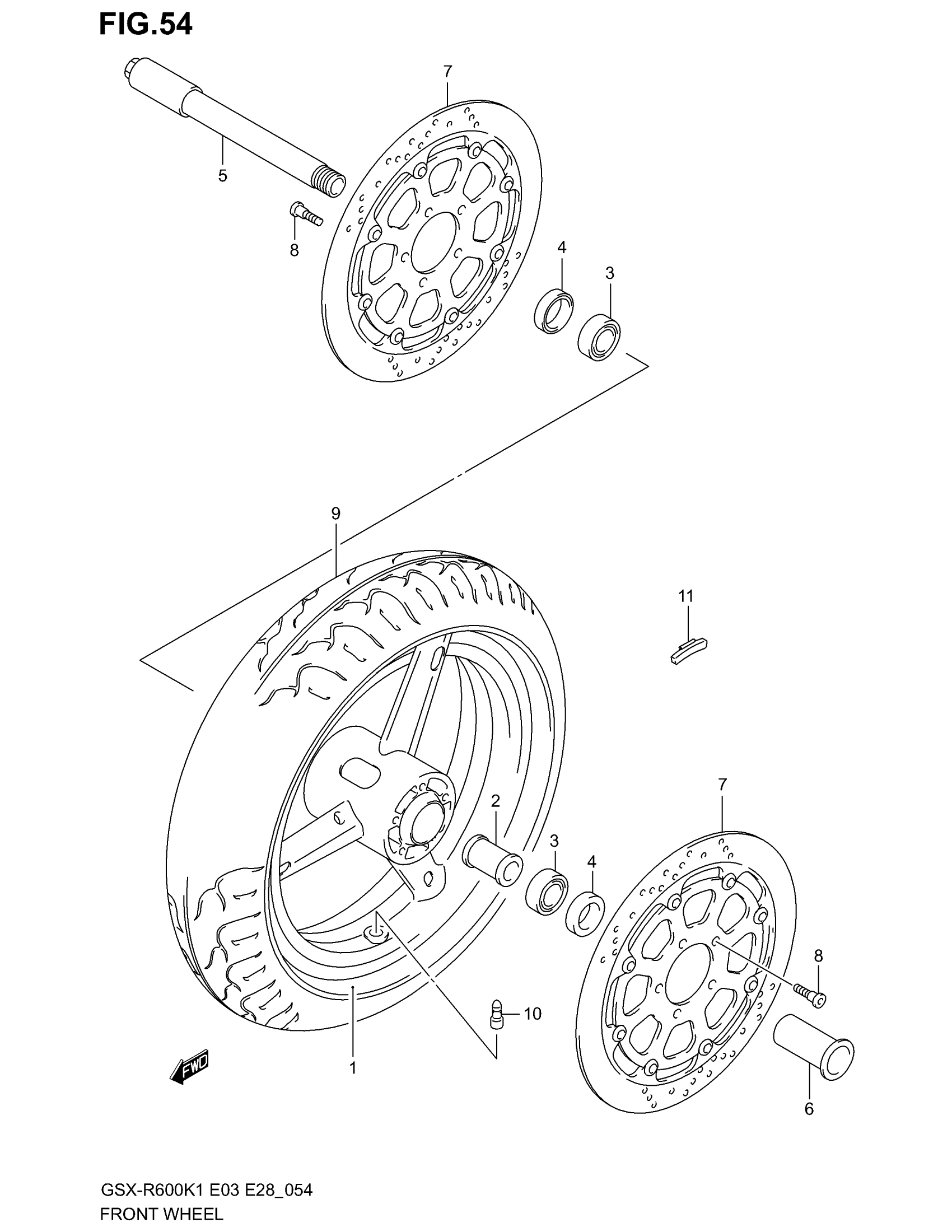

Suzuki GSX-R600 (2003) FRONT WHEEL Diagram

#

Description
Price

1

WHEEL, FRONT 17M/CXMT3.50 (BLACK) | MODEL K1 FOR BP9 MODEL K2 FOR BP9,GZ8 GSX-R600K3 FOR CT5,KU2 This part replaces 54111-35F00-019.

54111-35F11-019

$1,068.43

1

WHEEL,FR,17M/CX | MODEL K1/K2 FOR L99 GSX-R600K3 FOR LR5 This part replaces 54111-35F00-28W.

54111-35F01-28W

Unavailable

1

WHEEL,FR,17M/CX | GSX-R600ZK3 FOR LS6 This part replaces 54111-35F00-19T.

54111-35F01-19T

Unavailable

2

SPACER,FR HUB BEARING This part replaces 54731-35F00.

54731-35F10

$34.29

3

BEARING (25X52X15)

09262-25061

$29.88

4

.SEAL,OIL (32X52X7)

09285-32004

$7.20

5

AXLE, FRONT | MODEL K1

54711-35F00

Unavailable

5

AXLE, FRONT | MODEL K2/K3

54711-35F10

$167.32

6

NUT, AXLE

54712-33E00

$55.51

7

DISC, FRONT BRAKE | MODEL K1

59210-33E70

Unavailable

7

DISC, FRONT BRAKE | MODEL K2

59210-33E40

Unavailable

7

DISC,FRONT BRAK | MODEL K3 This part replaces 59210-33E90.

59210-33E91

Unavailable

8

BOLT

09106-08148

$4.33

9

TIRE, FRONT 120/70 ZR17 (58W) (DUNLOP)

55110-39F10

Unavailable

10

VALVE ASSY, WHEEL RIM (TR412)

43130-24A00

$8.10

11

BALANCER (10G) This part replaces 43232-82000.

43222-73H10

$6.57

11

BALANCER (20G) This part replaces 43234-82000.

43224-73H10

$4.02

11

BALANCER (30G) This part replaces 43236-82000.

43226-73H10

$4.69
