2003 Suzuki GSX-R600 Cylinder Head Diagram

← All diagrams

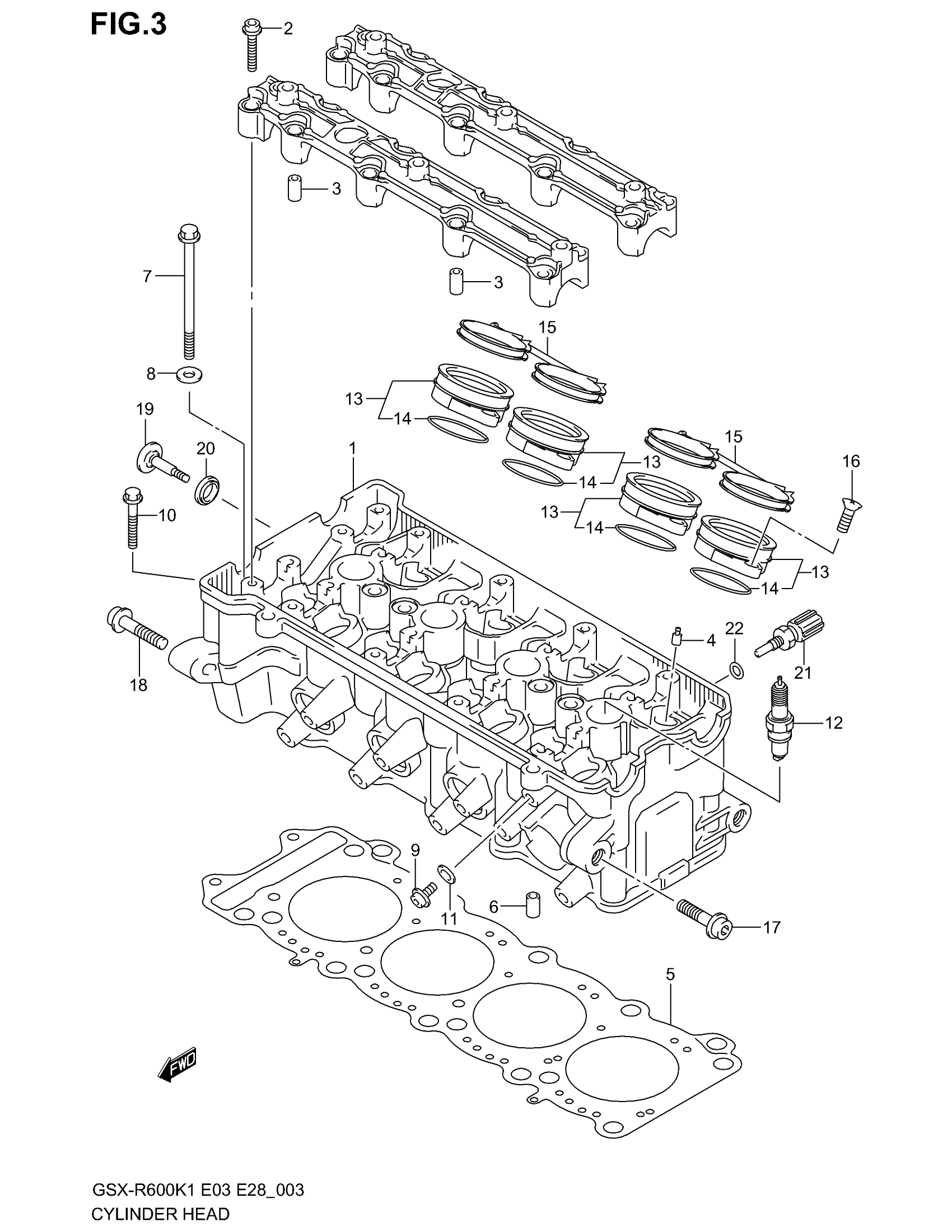

Find the part on the Cylinder Head diagram for your 2003 Suzuki GSX-R600, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2003 Suzuki GSX-R600 Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEAD ASSY, CYLINDER | Includes Item(s) 2 - 4

11100-39F00

1
Out of stock

2

BOLT This part replaces 07120-06403.

07120-0640B

20
Out of stock

3

PIN

09206-08007

4
Out of stock

4

GUIDE, VALVE (OS 0.5)

11115-11D70

16
Out of stock

5

GASKET, CYLINDER HEAD

11141-39F00

1
Out of stock

6

PIN

04211-11169

2
Out of stock

7

BOLT (10X95)

09103-10319

10
Out of stock

8

WASHER

09160-10082

10
Out of stock

9

BOLT, OIL GALLERY This part replaces 07120-06123.

07120-0612B

1
Out of stock

10

BOLT, RECTIFIER This part replaces 07120-06503.

07120-0650B

2
Out of stock

11

GASKET

09168-06023

1
Out of stock

12

PLUG SPARK (CR9E)

09482-00458

4
Out of stock

12

SPARK PLUG (DENSO,U27ESR-N)

09482-00459

4
Out of stock

12

SPARK PLUG (NGK,CR8E) | OPT

09482-00456

4
Out of stock

12

SPARK PLUG (NGK,CR10E) | OPT

09482-00460

4
Out of stock

12

SPARK PLUG (DENSO,U24ESR-N) | OPT

09482-00457

4
Out of stock

12

SPARK PLUG (DENSO,U31ESR-N) | OPT

09482-00461

4
Out of stock

13

PIPE, INTAKE | Includes Item(s) 14

13101-39F00

4
Out of stock

14

O RING (D:2.40,ID:41.7)

09280-42003

4
Out of stock

15

CLAMP, INTAKE PIPE

13170-34E02

2
Out of stock

16

SCREW This part replaces 02122-06163.

02122-0616A

8
Out of stock

17

BOLT, ENG MOUNTING HEAD (10X45)

09106-10069

2
Out of stock

18

BOLT, ENG MOUNTING HEAD (10X55)

09106-10070

1
Out of stock

19

BOLT, CYL HEAD SIDE FACE

11161-33E00

1
Out of stock

20

WASHER

11191-13E00

1
Out of stock

21

SENSOR, WATER TEMPERATURE | MODEL K1/K2

13650-51G10

1
Out of stock

21

SENSOR, WATER TEMPERATURE | MODEL K3

13650-10G00

1
Out of stock

22

GASKET

09168-12017

1
Out of stock
