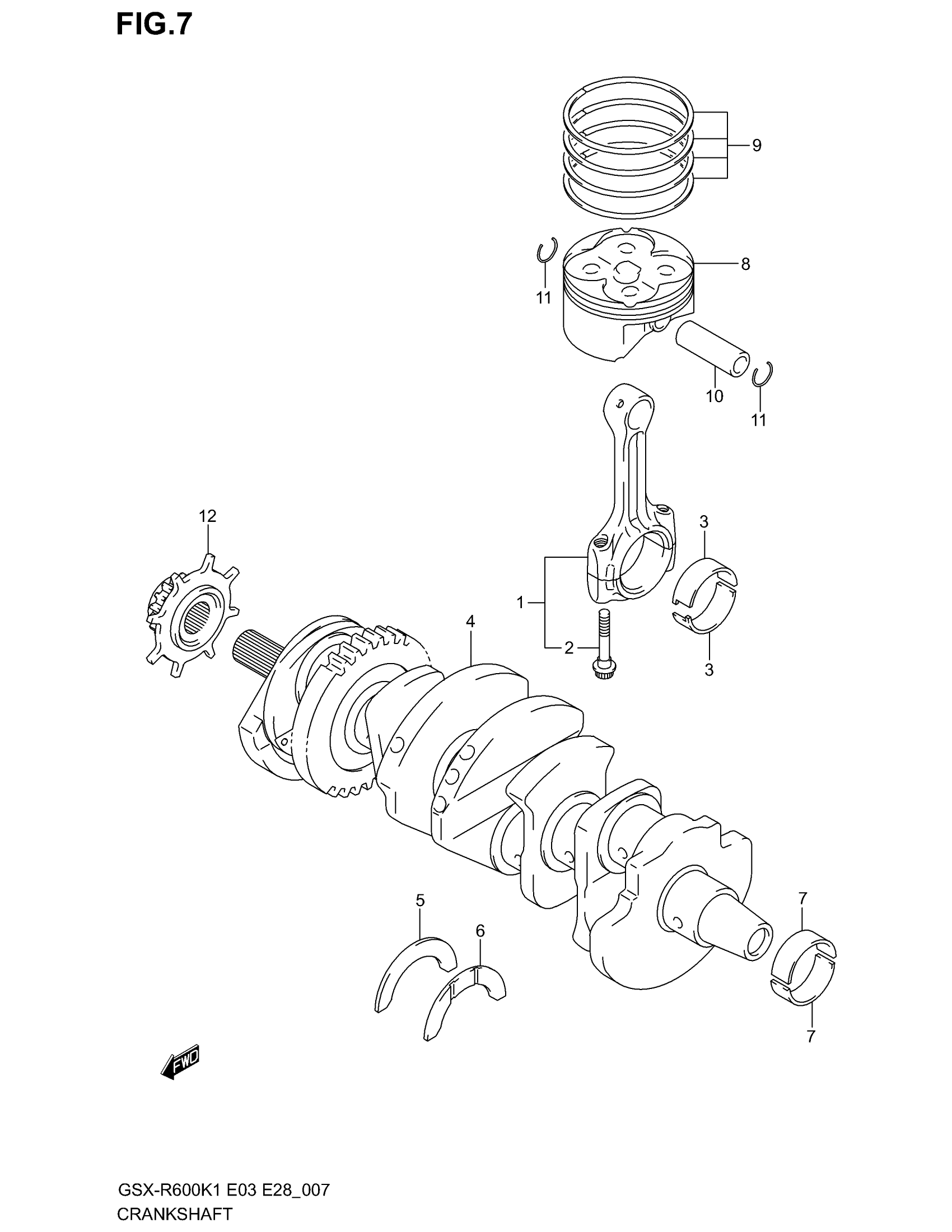

Find the part on the Crankshaft diagram for your 2003 Suzuki GSX-R600, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2003 Suzuki GSX-R600 Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

ROD ASSY, CONNECTING | Includes Item(s) 2 - 2A

12160-39F00

4
Out of stock

2

BOLT

12163-35F00

8
Out of stock

2A

PIN

12165-27A50

8
Out of stock

3

BEARING,CRANK PIN | *SEE NOTE

12164-39F00-0A0

8
Out of stock

3

BEARING,CRANK PIN | *SEE NOTE

12164-39F00-0B0

8
Out of stock

3

BEARING,CRANK PIN | *SEE NOTE

12164-39F00-0C0

8
Out of stock

3

BEARING,CRANK PIN | *SEE NOTE

12164-39F00-0D0

8
Out of stock

4

CRANKSHAFT SET | Includes Item(s) 5 - 6

12000-39830

1
Out of stock

5

BEARING, THRUST RH (GREEN)

12228-17E00-0D0

1
Out of stock

6

BEARING, THRUST LH (RED)

12228-17E00-0A0

1
Out of stock

6

BEARING, THRUST LH (BLACK)

12228-17E00-0B0

1
Out of stock

6

BEARING, THRUST LH (BLUE)

12228-17E00-0C0

1
Out of stock

6

BEARING, THRUST LH (GREEN)

12228-17E00-0D0

1
Out of stock

6

BEARING, THRUST LH (YELLOW)

12228-17E00-0E0

1
Out of stock

6

BEARING, THRUST LH (WHITE)

12228-17E00-0F0

1
Out of stock

7

BEARING, CRANKSHAFT (GREEN) | *SEE NOTE

12229-35F00-0A0

10
Out of stock

7

BEARING, CRANKSHAFT (BLACK) | *SEE NOTE

12229-35F00-0B0

10
Out of stock

7

BEARING, CRANKSHAFT (BROWN) | *SEE NOTE

12229-35F00-0C0

10
Out of stock

7

BEARING, CRANKSHAFT (YELLOW) | *SEE NOTE

12229-35F00-0D0

10
Out of stock

8

PISTON

12111-39F00-0F0

4
Out of stock

9

RING SET, PISTON

12140-39F00

4
Out of stock

10

PIN, PISTON

12151-39F00

4
Out of stock

11

RING

09381-14001

8
Out of stock

12

SPROCKET, CAM CHAIN

12731-35F00

1
Out of stock
