2000 Suzuki GSX-R600 Rear Caliper Diagram

← All diagrams

Find the part on the Rear Caliper diagram for your 2000 Suzuki GSX-R600, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

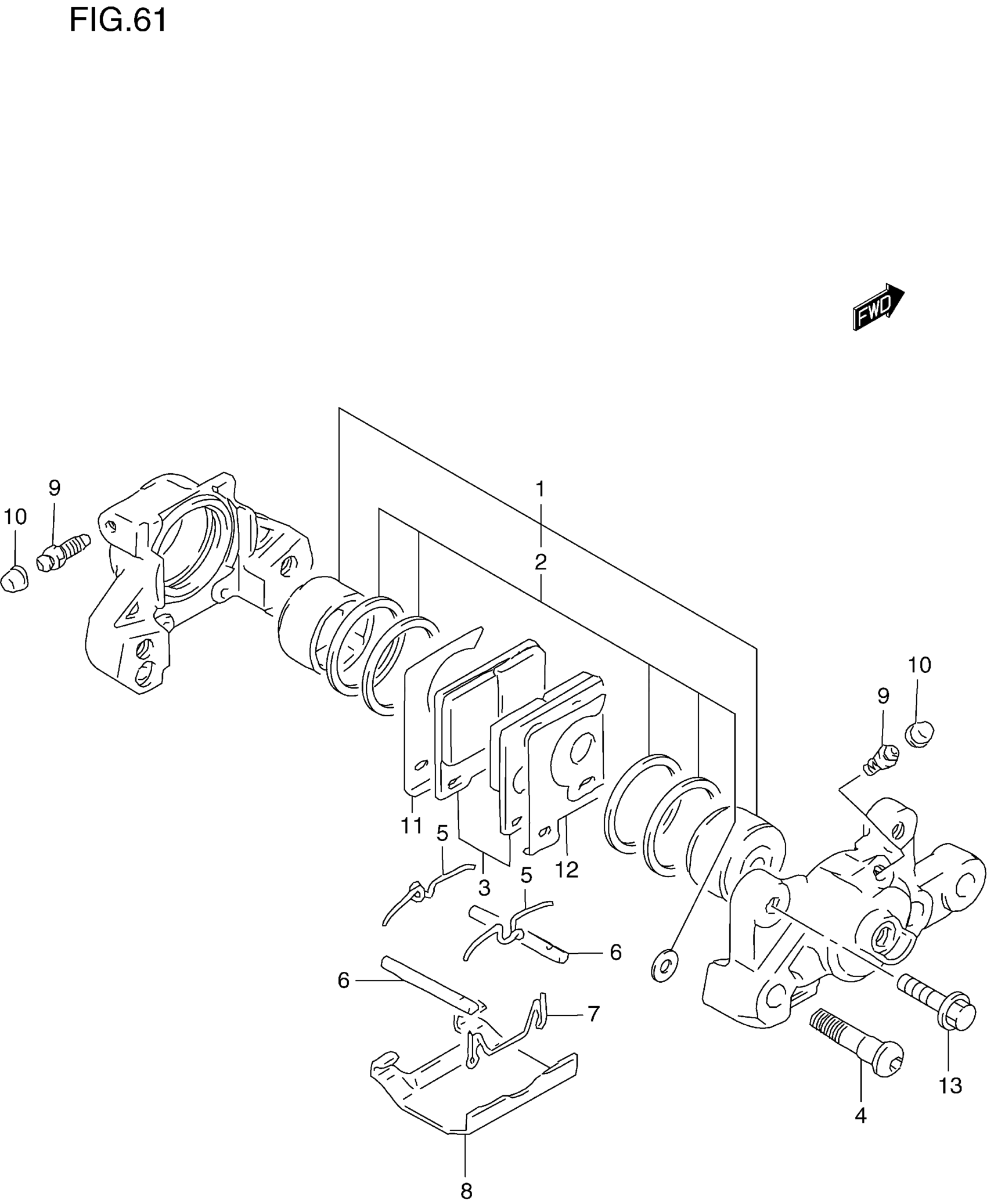

2000 Suzuki GSX-R600 Rear Caliper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

CALIPER ASSY, REAR | Includes Item(s) 1 - 12 This part replaces 69100-05C51.

69100-05CG0-999

1
Out of stock

1

PISTON SET This part replaces 69100-05850.

69100-05851

1
Out of stock

2

SEAL SET, PISTON This part replaces 69100-32820.

69101-05840

1
Out of stock

3

PAD SET

69100-21820

1
Out of stock

4

BOLT

59145-05C50

2
Out of stock

5

SPRING

59143-16700

2
Out of stock

6

PIN

69141-46E01

2
Out of stock

7

CLIP

69142-46E01

1
Out of stock

8

COVER

59151-16701

1
Out of stock

9

BLEEDER

59121-18410

2
Out of stock

10

CAP

55156-66310

2
Out of stock

11

SHIM, INNER

59371-20C00

1
Out of stock

12

SHIM, OUTER

59381-20C00

1
Out of stock

13

BOLT This part replaces 01550-08303.

01550-0830A

2
Out of stock
