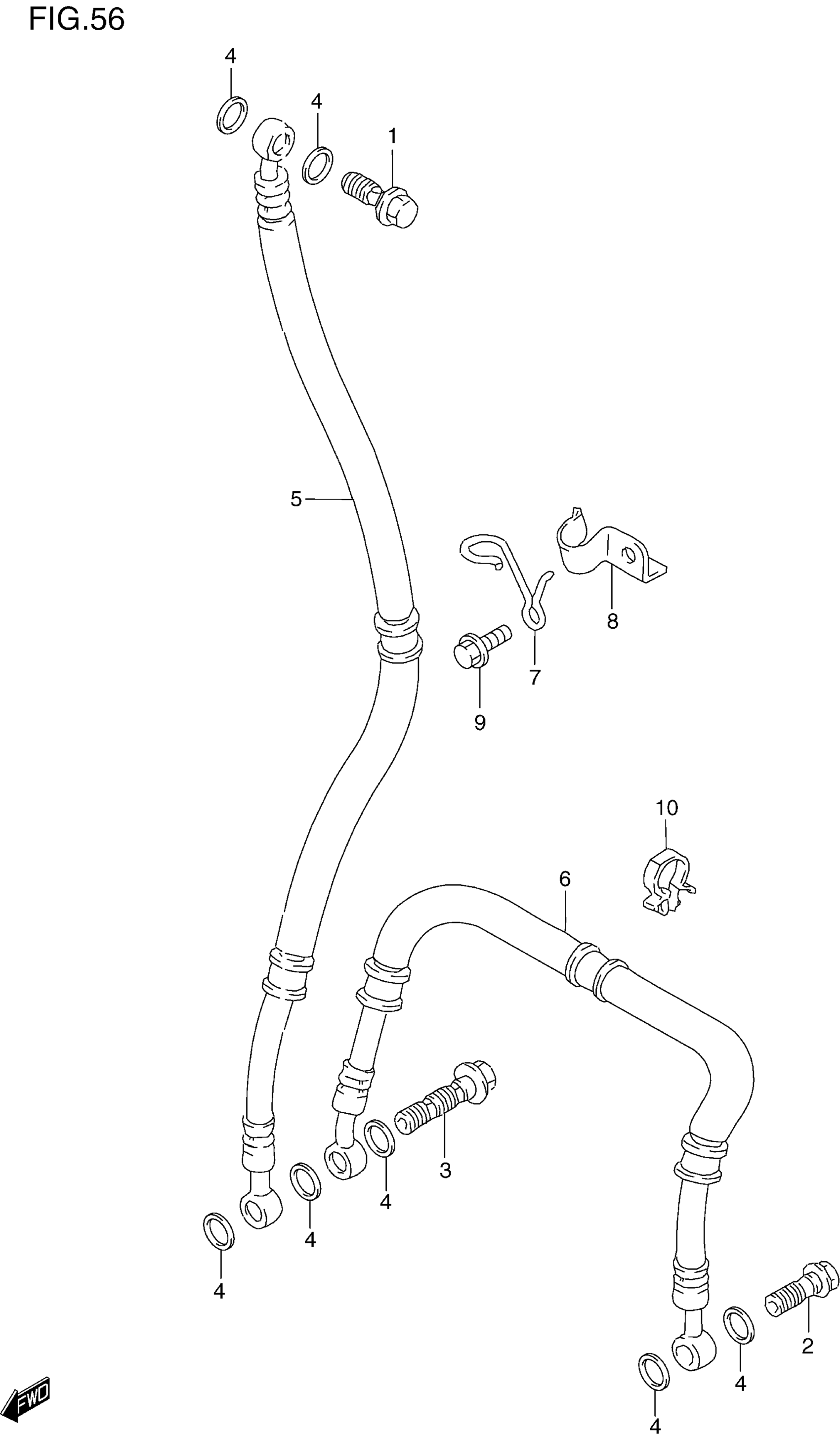

Suzuki GSX-R600 (2000) FRONT BRAKE HOSE Diagram

#

Description

Price

1

UNION This part replaces 09360-10041.

09360-10061

$6.07

2

UNION This part replaces 09360-10042.

09360-10062

$5.99

3

UNION This part replaces 09360-10044.

09360-10064

$5.99

4

WASHER (10X15X1.5)

09161-10009

$1.89

5

HOSE COMP,FRT B This part replaces 59480-33E00.

59480-33E01

Unavailable

6

HOSE, FRONT BRAKE NO.2

59240-33E00

Unavailable

7

GUIDE, BRAKE HOSE NO.1

59268-33E01

$14.63

8

CLAMP, BRAKE HOSE NO.1

59266-38D00

$15.83

9

BOLT This part replaces 01550-06163.

01550-0616A

$2.01

10

CLAMP, BRAKE HOSE NO.2

09403-14304

$3.05
