2000 Suzuki GSX-R600 Front Master Cylinder Diagram

← All diagrams

Find the part on the Front Master Cylinder diagram for your 2000 Suzuki GSX-R600, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

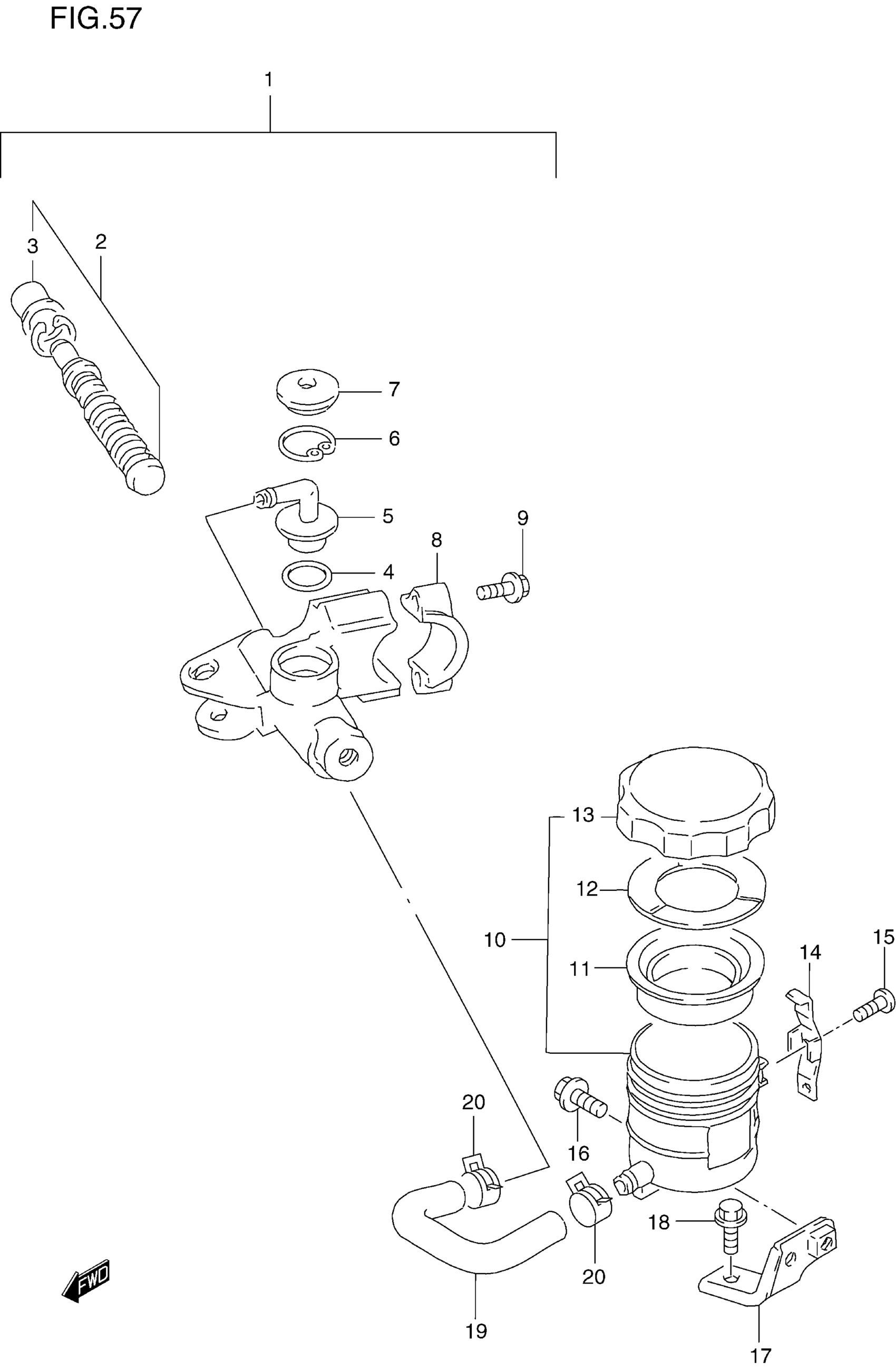

2000 Suzuki GSX-R600 Front Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CYLINDER ASSY, FRONT MASTER | Includes Item(s) 2 - 9

59600-17C00

1
Out of stock

2

PISTON/CUP SET

59600-45850

1
Out of stock

3

BOOT

59666-44300

1
Out of stock

4

O RING

69686-34200

1

$2.92

In stock

5

CONNECTOR

59672-17C00

1

$9.29

In stock

6

CIRCLIP

69674-00B20

1

$4.07

In stock

7

COVER, DUST

59673-17C00

1
Out of stock

8

.HOLDER

59671-36500

1
Out of stock

9

BOLT HOLDER SET

59675-19C00

2

$4.53

In stock

10

1

$60.21

In stock

11

DIAPHRAGM

59667-18441

1
Out of stock

12

PLATE

59668-18441

1
Out of stock

13

CAP

59669-07D00

1

$35.80

In stock

14

PLATE, TANK CAP

59743-17C00

1
Out of stock

15

SCREW This part replaces 02142-04103.

02142-0410A

1
Out of stock

16

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

1
Out of stock

17

1

$10.60

In stock

18

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

1
Out of stock

19

HOSE, RESERVOIR TANK

59731-17E00

1

$26.32

In stock

20

CLAMP, HOSE

59735-17C00

2
Out of stock
