2013 Suzuki GSX-R250L3 Radiator Diagram

← All diagrams

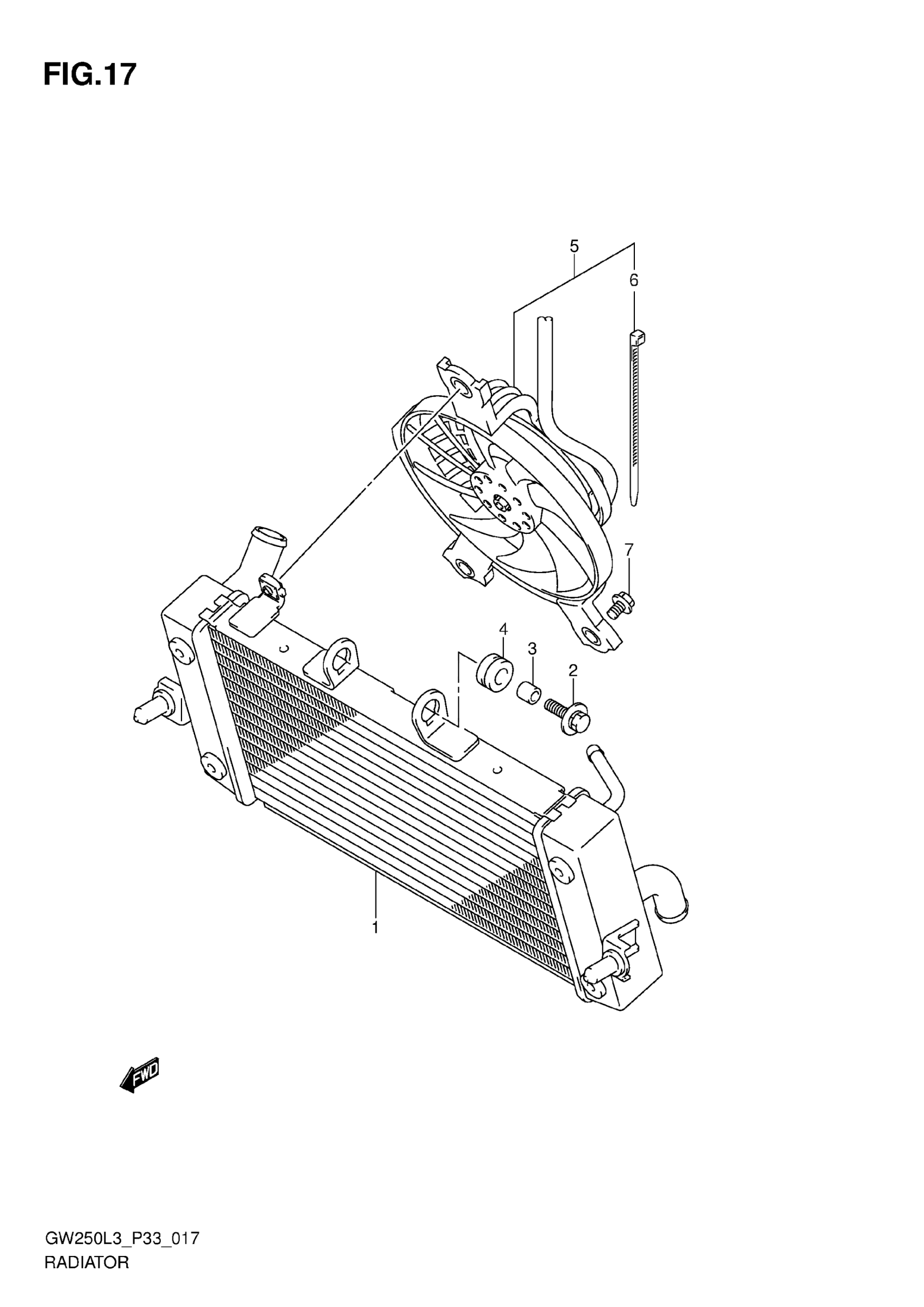

Find the part on the Radiator diagram for your 2013 Suzuki GSX-R250L3, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2013 Suzuki GSX-R250L3 Radiator Diagram

#

Description
Price
Status
Order Qty

1

RADIATOR ASSY, WATER

17710-48H10-000

Out of stock

2

BOLT (6X25)

09118-06097-000

Out of stock

3

SPACER (6.5X10X10)

09180-06364-000

Out of stock

4

CUSHION (10X20X10)

09320-10501-000

Out of stock

5

FAN ASSY, RADIATOR

17800-48H00-000

Out of stock

6

CLAMP, FAN MOTOR LEAD

36990-48H20-000

Out of stock

7

BOLT

01550-0612A-000

Out of stock
