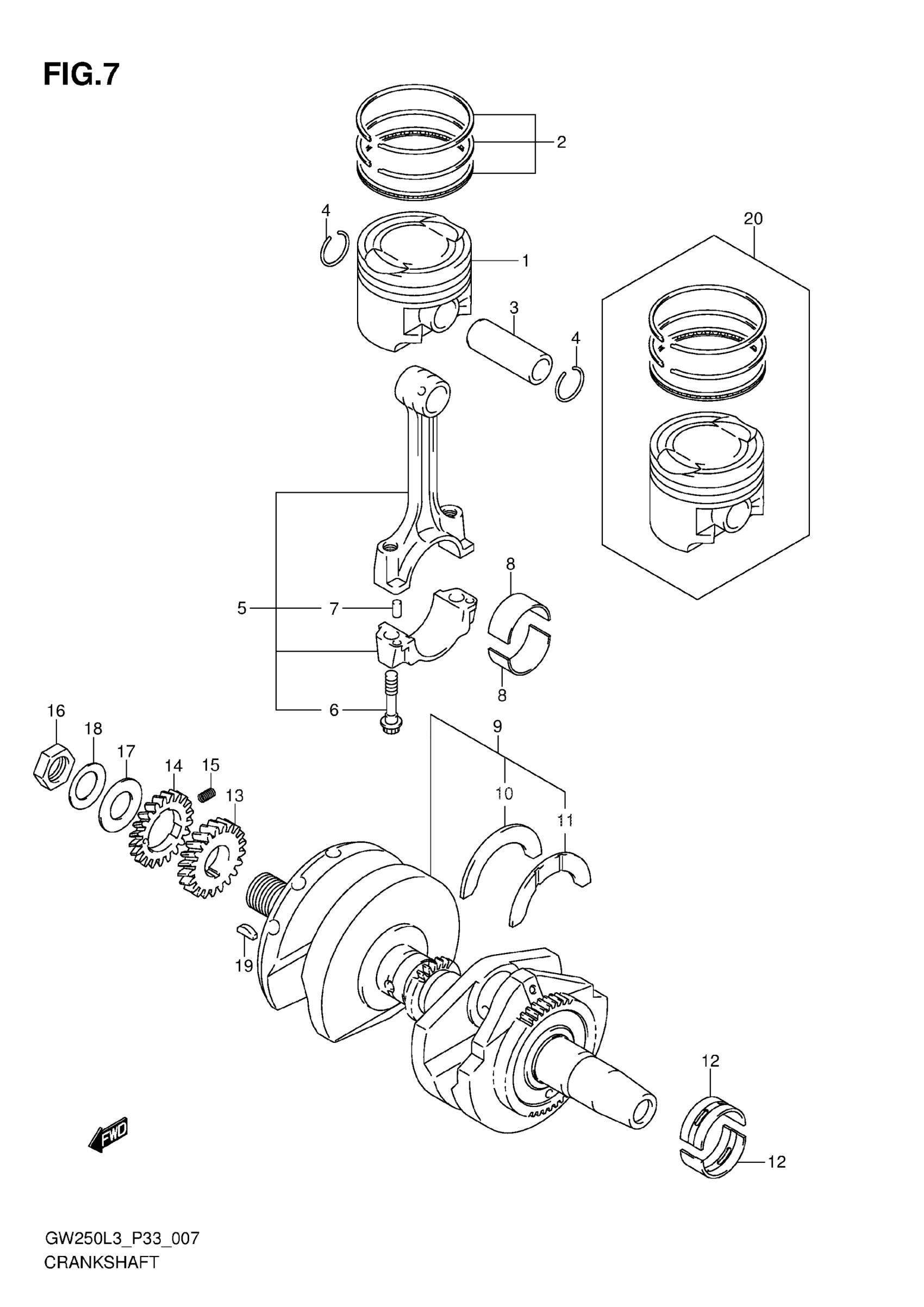

Suzuki GSX-R250L3 (2013) CRANKSHAFT Diagram

#

Description
Price

1

PISTON (YELLOW)

12111-48H00-0F0

Unavailable

2

RING SET, PISTON

12140-48H00-000

Unavailable

3

PIN, PISTON

12151-48H00-000

Unavailable

4

CIRCLIP

09381-15001-000

Unavailable

5

CONNROD ASSY

12160-48H00-000

Unavailable

6

BOLT, CONNROD

12163-35F00-000

Unavailable

7

.PIN

04221-04089-000

Unavailable

8

BEARING,CRANK PIN

12164-39F00-0A0

$8.82

8

BEARING,CRANK PIN

12164-39F00-0B0

$15.43

8

BEARING,CRANK PIN

12164-39F00-0C0

$10.94

8

BEARING,CRANK PIN

12164-39F00-0D0

$11.37

9

CRANKSHAFT SET

12200-48830-000

Unavailable

10

BEARING, THRUST LH (YELLOW)

12228-17E00-0E0

$12.85

11

BEARING, THRUST RH (YELLOW)

12228-17E00-0E0

$12.85

11

BEARING, THRUST RH (WHITE)

12228-17E00-0F0

$13.10

11

BEARING, THRUST RH (ORANGE)

12228-17E00-0G0

Unavailable

11

BEARING, THRUST RH (PINK)

12228-17E00-0H0

Unavailable

11

BEARING, THRUST RH (BROWN)

12228-17E00-0J0

Unavailable

11

BEARING, THRUST RH (PURPLE)

12228-17E00-0K0

Unavailable

11

BEARING, THRUST RH (NO COLOR)

12228-17E00-0L0

Unavailable

12

BEARING,CRANKSHAFT

12229-48H10-0A0

Unavailable

12

BEARING,CRANKSHAFT

12229-48H10-0B0

$36.90

12

BEARING ,CRANKSHAFT (BROWN)

12229-48H10-0C0

$20.30

12

BEARING,CRANKSHAFT

12229-48H10-0D0

Unavailable

13

GEAR, PRIMARY DRIVE (NT:21)

21111-48H00-000

Unavailable

14

GEAR, PRIMARY DRIVE NO.2 (NT:21)

21112-48H00-000

Unavailable

15

SPRING, PRI DRIVE GEAR

21114-35C00-000

Unavailable

16

NUT

09140-18023-000

Unavailable

17

WASHER (18X36X1.5)

09160-18039-000

Unavailable

18

WASHER

09164-18012-000

Unavailable

19

KEY (B:4,D:16,H6.5)

09420-04008-000

Unavailable

20

PISTON SET (OS 0.5) | OPT

12100-48H00-050

$91.51
