2013 Suzuki GSX-R250L3 Crankcase Diagram

← All diagrams

Find the part on the Crankcase diagram for your 2013 Suzuki GSX-R250L3, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

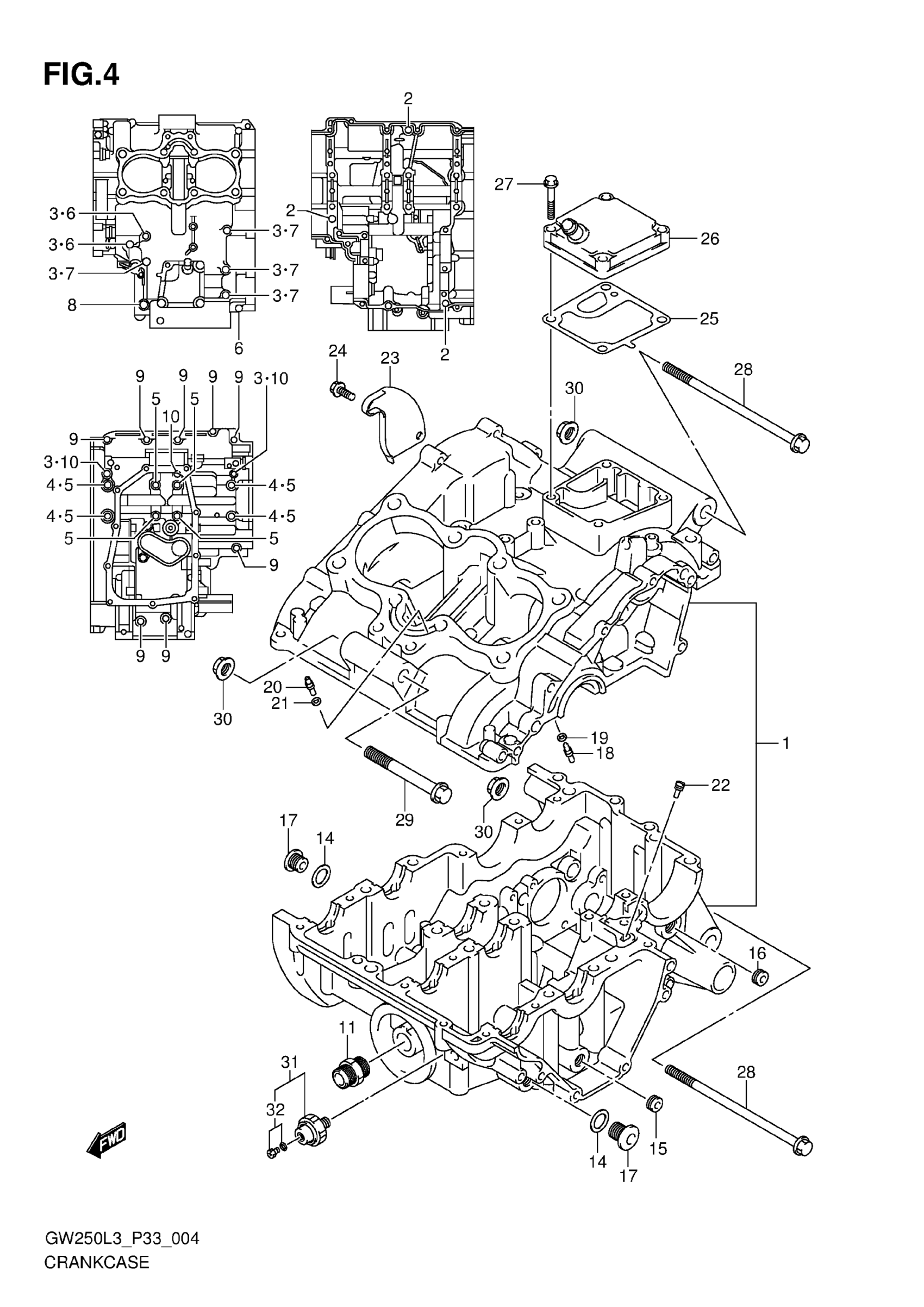

2013 Suzuki GSX-R250L3 Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE SET

11300-48871-000

—
Out of stock

2

PIN

04211-11169-000

—
Out of stock

3

GASKET (5.8X13X1.8)

09168-06L04-000

—
Out of stock

4

GASKET (8.2X14X1)

09168-08035-000

—
Out of stock

5

BOLT (8X105)

09103-08133-000

—
Out of stock

6

BOLT

01547-0635A-000

—
Out of stock

7

BOLT

01547-0655A-000

—
Out of stock

8

BOLT

01550-0855A-000

—
Out of stock

9

BOLT

01547-0635A-000

—
Out of stock

10

BOLT

01547-0690A-000

—
Out of stock

11

UNION, OIL FILTER STAND

16591-48H00-000

—
Out of stock

12

BEARING,CRANK THRUST (YELLOW) | SEE ILLUSTRATION ON FIG.7

12228-17E00-0E0

1
Out of stock

13

BEARING,CRANK THRUST (YELLOW) | SEE ILLUSTRATION ON FIG.7

12228-17E00-0E0

1
Out of stock

13

BEARING,CRANK THRUST (WHITE)

12228-17E00-0F0

1
Out of stock

13

BEARING,CRANK THRUST (ORANGE)

12228-17E00-0G0

1
Out of stock

13

BEARING,CRANK THRUST (PINK)

12228-17E00-0H0

1
Out of stock

13

BEARING,CRANK THRUST (BROWN)

12228-17E00-0J0

1
Out of stock

13

BEARING,CRANK THRUST (PURPLE)

12228-17E00-0K0

1
Out of stock

13

BEARING,CRANK THRUST (NO COLOR)

12228-17E00-0L0

1
Out of stock

14

GASKET (14X18.3X4.8)

09168-14L01-000

—
Out of stock

15

PLUG (1/4PT, H:7.5)

09246-06001-000

—
Out of stock

16

PLUG (1/4PT, H:7.5)

09246-06001-000

—
Out of stock

17

PLUG (14X12)

09248-14013-000

—
Out of stock

18

JET, PISTON COOLING

11390-48H00-000

—
Out of stock

19

O-RING (D:1.2,ID:4)

09280-04004-000

—
Out of stock

20

JET, OIL GALLERY CYLINDER

11329-48H00-000

—
Out of stock

21

O-RING (D:1.2,ID:4)

09280-04004-000

—
Out of stock

22

JET, T/M COOLING

11313-48H00-000

—
Out of stock

23

PLATE, OIL SEPARATOR

11317-48H00-000

—
Out of stock

24

BOLT

01547-0612A-000

—
Out of stock

25

GASKET, BREATHER COVER

11318-48H00-000

—
Out of stock

26

COVER, BREATHER

11330-48H00-000

—
Out of stock

27

BOLT

01547-0630A-000

—
Out of stock

28

BOLT (10X155)

09103-10115-000

—
Out of stock

29

BOLT (10X85)

09103-10445-000

—
Out of stock

30

NUT

09159-10L06-000

—
Out of stock

31

SWITCH ASSY,OIL PRESSURE

37820-33D10-000

—
Out of stock

32

.BOLT,OIL PRESSURE SWITCH

37822-33D00-000

—
Out of stock
