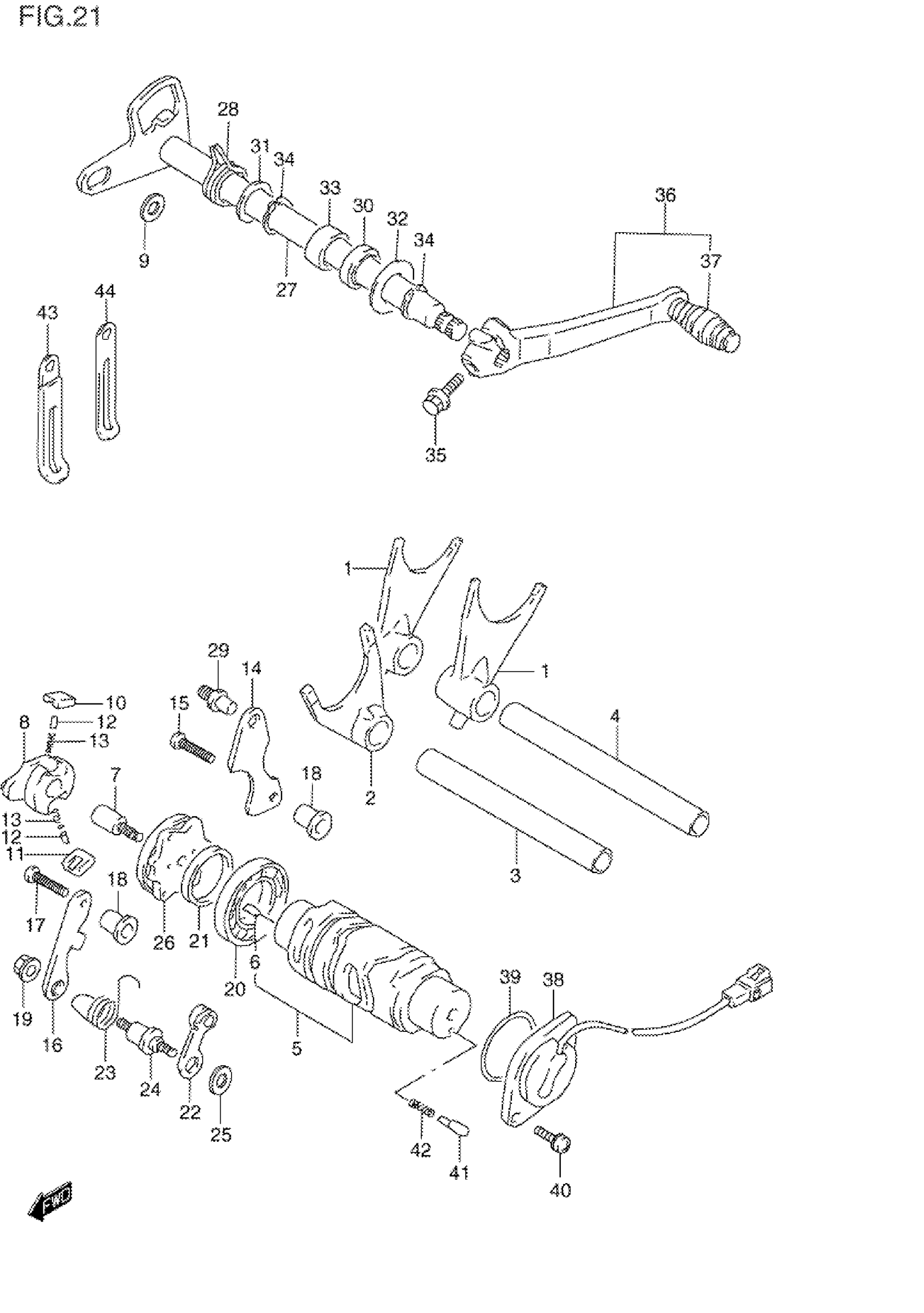

Suzuki GSX-R1100W (1998) GEAR SHIFTING Diagram

#

Description
Price

1

FORK, GEAR SHIFT This part replaces 25211-17E00.

25211-17E02

$81.95

2

FORK, GEAR SHIFTING NO.3

25231-46E00

Unavailable

3

SHAFT,GEAR SHIFT FORK (L:110)

25411-26D01

$28.98

4

SHAFT, FORK (L:128)

25411-27A00

$33.02

5

CAM, GEAR SHIFTING | Includes Item(s) 6

25310-46E00

Unavailable

6

PIN (4X13.8)

04221-04089

$1.10

7

PIN, SHIFT CAM DRIVEN GEAR

25312-12C00

$9.08

8

SHIFTER, GEAR SHIFT CAM | MODEL P/R/S/T This part replaces 25322-33C00.

25322-33C01

$73.01

8

SHIFTER, CAM | MODEL V/W

25322-33C01

$73.01

9

ROLLER

09180-07014

$3.71

10

PAWL, GEAR SHIFT NO.1

25323-34201

$6.61

11

PAWL, GEAR SHIFT NO.2

25324-34201

$6.80

12

PIN

09261-05003

$1.69

13

SPRING

09440-04003

$1.48

14

LIFTER, PAWL

25331-26D00

Unavailable

15

SCREW | MODEL P/R This part replaces 02112-06308.

02112-06307

$1.99

15

SCREW, SEAT SUPPORT BRK | MODEL S/T/V/W This part replaces 02112-06303.

02112-0630A

$1.80

16

GUIDE, CAM

25341-17E00

Unavailable

17

SCREW | MODEL P/R This part replaces 02122-06308.

02122-0630B

$2.07

17

SCREW | MODEL S/T/V/W This part replaces 02122-06303.

02122-0630B

$2.07

18

SPACER

09180-06202

Unavailable

19

NUT | MODEL P This part replaces 09159-06017.

08319-31067

$2.01

19

NUT | MODEL R/S/T/V/W This part replaces 08316-10063.

08316-1006B

$2.50

20

BEARING (25X47X8) | MODEL P This part replaces 09262-25002.

09262-25006

$23.05

20

BEARING (25X47X8) | MODEL R/S/T/V/W

09262-25006

$23.05

21

WASHER (25X32X3)

09160-25059

$7.20

22

STOPPER, CAM

25350-26D01

$18.30

23

SPRING | MODEL P/R/S This part replaces 25355-26D20.

25355-26D21

Unavailable

23

SPRING | MODEL T/V/W

25355-26D21

Unavailable

24

SUPPORT, STOPPER

25356-12C00

$19.60

25

WASHER

08211-06141

$1.61

26

PLATE, STOPPER

25380-12B00

Unavailable

27

SHAFT, GEAR SHIFTING This part replaces 25510-17E00.

25510-17E10

Unavailable

28

SPRING

09444-20003

$8.05

29

STOPPER, ARM This part replaces 25671-01000.

25671-01011

$4.09

30

SEAL, SHIFT SHAFT (14X22X6) | MODEL P This part replaces 09283-14005.

09283-14006

$6.04

30

OIL SEAL | MODEL R/S/T/V/W

09283-14006

$6.04

31

WASHER, RH (14X22X1.0) | MODEL P/R/S/T This part replaces 08211-14221.

09181-14167

$2.55

31

WASHER, RH (14X22X1.0) | MODEL V/W

09181-14167

$2.55

32

WASHER, KNUCKLE END | MODEL P This part replaces 09160-14034.

09160-14060

$2.74

32

WASHER, LH (14X29X0.8) | MODEL R/S/T/V/W

09160-14016

$1.91

33

BEARING (14X20X12)

09263-14027

$12.21

34

CIRCLIP, SHIFT SHAFT This part replaces 08331-31146.

08331-3114A

$1.89

35

BOLT | MODEL P This part replaces 01107-06357.

01500-06357

$3.42

35

BOLT | MODEL R/S/T/V/W This part replaces 01500-06353.

01500-0635A

$2.21

36

LEVER ASSY, GEAR SHIFTING | MODEL P/R/S This part replaces 25600-46E00.

25600-46E10

Unavailable

36

LEVER ASSY, GEAR SHIFTING | MODEL T/V/W; Includes Item(s) 37

25600-46E10

Unavailable

37

.RUBBER,GEAR SHIFT PEDAL This part replaces 25652-16500.

25652-16510

$3.42

38

BODY, GEAR SHIFTING SWITCH

37720-46E00

Unavailable

39

O RING (D:2.4,ID:36.2) | MODEL P

09280-36001

$3.01

39

O RING (D:2.4,ID:35.5) | MODEL R/S/T/V/W

09280-35006

$2.80

40

SCREW | MODEL P/R This part replaces 02112-75168.

02112-7516A

$2.42

40

SCREW | MODEL S/T/V/W This part replaces 02112-75163.

02112-7516A

$2.42

41

CONTACT

09209-05011

$2.02

42

SPRING

09440-04010

$1.52

43

CLAMP | MODEL P/R This part replaces 09404-06402.

09404-06039

$1.73

43

CLAMP (L:45) | MODEL S/T/V/W

09404-06429

$1.82

44

CLAMP(L:80) This part replaces 09404-06404.

09404-06036

$1.76

44

CLAMP(L:80) This part replaces 09404-06426.

09404-06036

$1.76

44

CLAMP | MODEL S/T/V/W This part replaces 09404-06431.

09404-06039

$1.73

44

CLAMP(L:80) | MODEL S/T/V/W This part replaces 09404-06433.

09404-06036

$1.76
