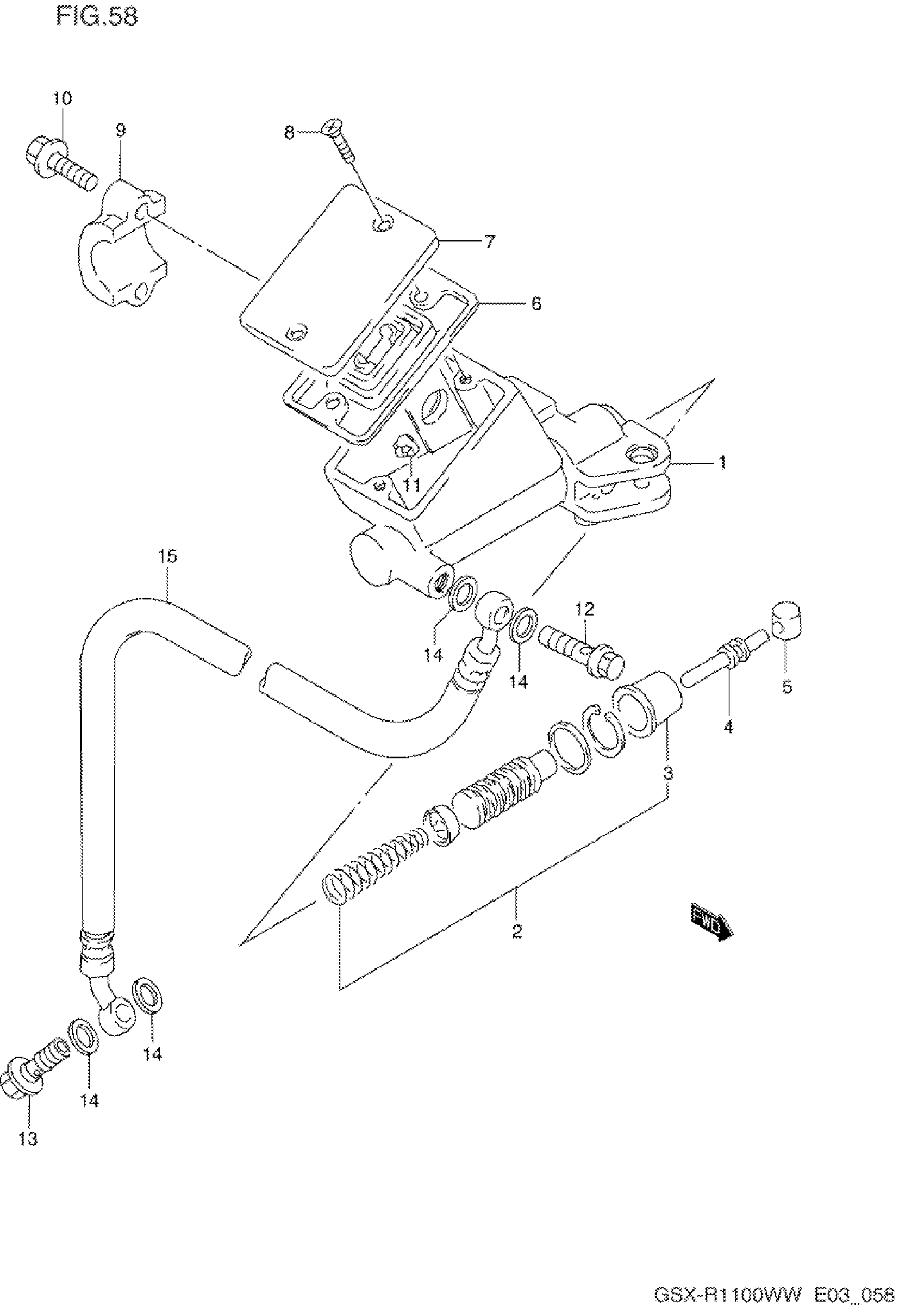

Suzuki GSX-R1100W (1998) CLUTCH MASTER CYLINDER (MODEL P/R) Diagram

CYLINDER ASSY, CLUTCH MASTER | Includes Item(s) 2 - 11

59800-46E00

Unavailable

PISTON & CUP SET

59800-08810

$36.14

BOOT

59666-44300

$5.30

PUSH ROD

59871-08A00

Unavailable

BUSH

59892-08A00

$4.63

DIAPHRAGM

59667-44B00

$8.95

CAP

69669-24A01

$14.23

SCREW

69689-49300

$1.81

.HOLDER

59671-36500

$11.50

BOLT HOLDER SET

59675-19C00

$4.53

PROTECTOR

59664-48B00

$12.43

UNION | MODEL P This part replaces 09360-10033.

09360-10062

$5.81

UNION | MODEL R This part replaces 09360-10040.

09360-10062

$5.81

BOLT (10X1.00X24) | MODEL P

09360-10017

$3.08

UNION | MODEL R This part replaces 09360-10039.

09360-10061

$5.89

WASHER (10X15X1.5)

09161-10009

$1.83

HOSE, CLUTCH

59910-46E00

Unavailable

REFER TO FIG.58A(L- 3) FOR

SPECIAL NOTE

Unavailable
