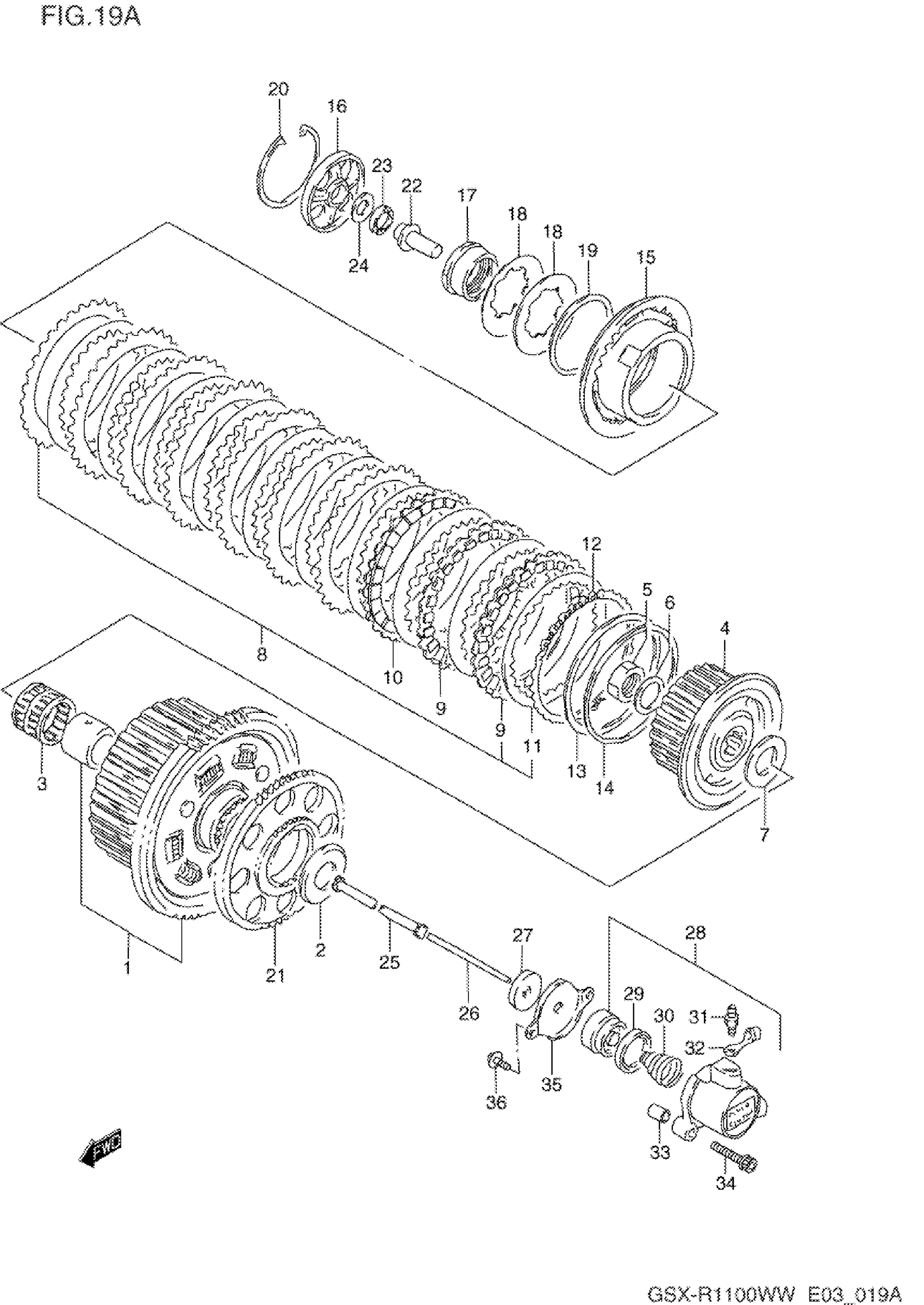

Suzuki GSX-R1100W (1998) CLUTCH (MODEL S/T/V/W) Diagram

#

Description
Price

1

GEAR, PRIMARY DRIVEN (NT:72) | MODEL S/T/V This part replaces 21200-40840.

21200-40841

Unavailable

1

GEAR, PRIMARY DRIVEN (NT:72) | MODEL W

21200-40841

Unavailable

2

WASHER (25X54X2.5) | MODEL S/T/V

09160-25067

Unavailable

2

WASHER (25.1X54X2.5) | MODEL W

09160-25037

$9.62

3

BEARING (35X40X35.8)

09263-35017

$37.12

4

HUB, SLEEVE

21410-46E00

Unavailable

5

NUT

09159-24008

Unavailable

6

WASHER

09164-24006

$3.38

7

.WASHER (25X50X2.5)

09160-25056

$10.63

8

PLATE ASSY, CLUTCH | Includes Item(s) 9 - 11

21400-40C01

Unavailable

9

PLATE, DRIVE

21441-48B10

Unavailable

10

PLATE, DRIVE NO.1 (T:2.6)

21441-48B00

$19.45

11

PLATE, DRIVEN (T:2)

21451-48B00

$15.18

12

PLATE, DRIVE NO.2 (T:2.6)

21442-46E00

Unavailable

13

WAVE WASHER

09164-00007

Unavailable

14

SEAT, WAVE WASHER

21471-40C01

Unavailable

15

DISC, PRESSURE

21462-40C02

Unavailable

16

LIFTER, CLUTCH PRESSURE DISK

21463-40C01

Unavailable

17

HOLDER, CLUTCH SPRING

21611-40C01

Unavailable

18

SPRING

09164-47001

$10.15

19

SEAT, CLUTCH SPRING

21623-40C00

Unavailable

20

CIRCLIP, CLUTCH PRESSURE This part replaces 09381-84002.

09381-84003

$13.28

21

GEAR, ALTERNATOR (NT:34/61) | MODEL S/T/V This part replaces 22721-21E01.

22721-21E02

Unavailable

21

GEAR, ALTERNATOR (NT:34/61) | MODEL W

22721-21E02

Unavailable

22

PIECE, PUSH This part replaces 23121-07A00.

23121-31E00

$22.52

23

BEARING

09263-15003

$7.49

24

WASHER (15.5X28X1)

09160-15045

$3.52

25

ROD, PUSH RH

23110-27A00

$19.86

26

ROD, PUSH LH (L:108.5)

23111-24A01

$12.18

27

OIL SEAL

09285-06015

$7.20

28

CYLINDER,CLUTCH | Includes Item(s) 29 - 32 This part replaces 23160-06B02.

23160-06B03

$93.07

29

CUP

23163-06B00

$6.61

30

SPRING

23164-05A00

$3.97

31

BLEEDER

59121-01A00

$7.99

32

CAP, BLEEDER

59122-01A00

$3.97

33

PIN

04211-09129

$1.64

34

BOLT This part replaces 07130-06253.

07130-0625B

$2.80

35

COVER, CYLINDER

23117-46E00

$6.21

36

SCREW This part replaces 02112-06103.

02112-0610B

$1.83
