1992 Suzuki GSX-R1100N Steering Stem Diagram

← All diagrams

Find the part on the Steering Stem diagram for your 1992 Suzuki GSX-R1100N, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

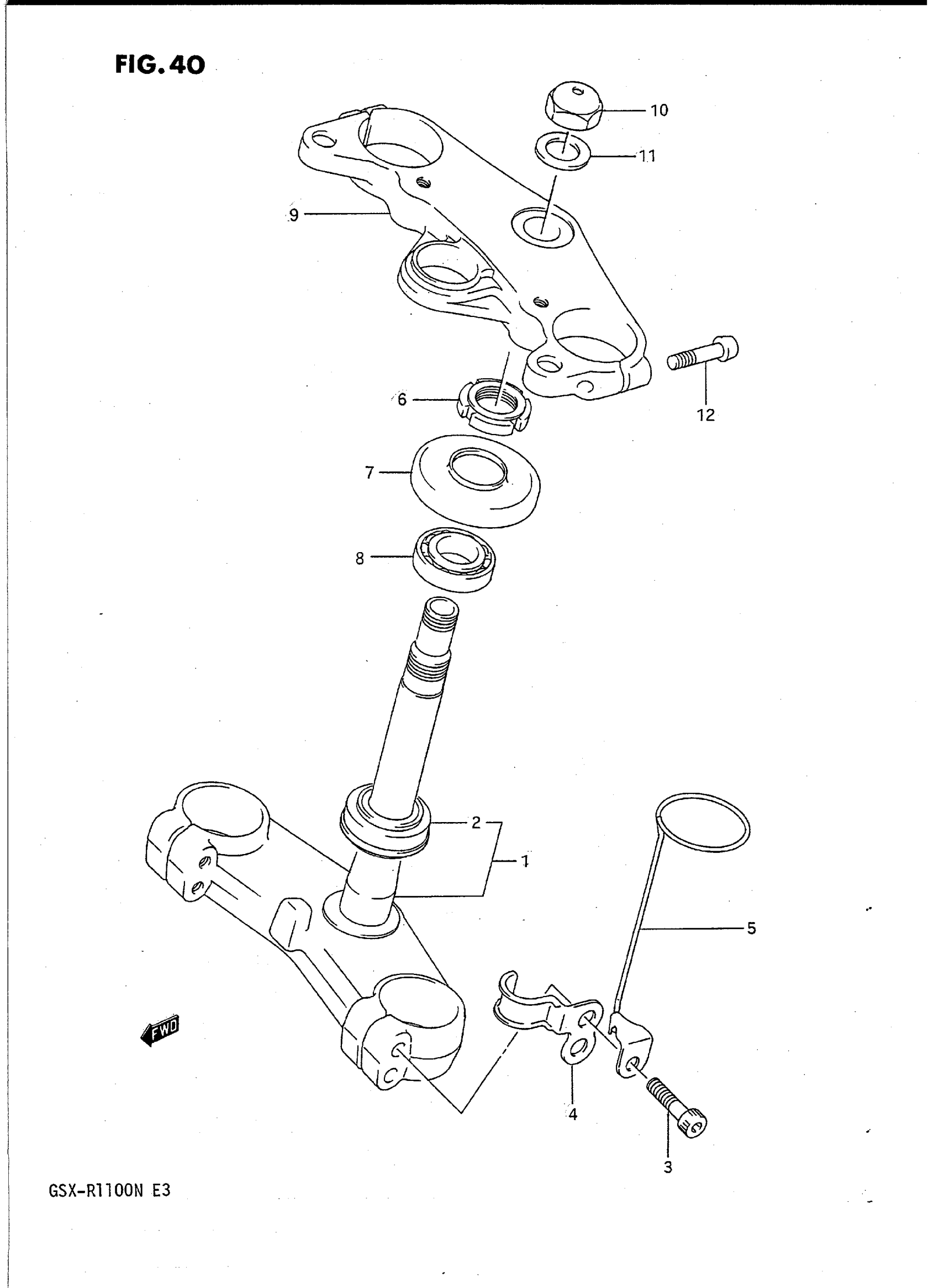

1992 Suzuki GSX-R1100N Steering Stem Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STEM, STEERING | Includes Item(s) 2

51410-40C40

1
Out of stock

2

RT 30X55X17 BEA This part replaces 09265-30009.

09265-30034

1
Out of stock

3

BOLT,10X45 This part replaces 09106-10022.

09106-10022-XC0

4
Out of stock

4

GUIDE, CABLE NO.1 This part replaces 34938-41C00.

34938-17E00

1
Out of stock

5

HOLDER, STEERING DAMPER

51740-40C10

1
Out of stock

6

NUT, STEERING STEM

51631-28000

1
Out of stock

7

SEAL,OIL This part replaces 09285-34007.

09285-34010

1
Out of stock

8

BEARING

09265-25008

1
Out of stock

9

BRACKET, UPPER

51311-40C40

1
Out of stock

10

NUT

51353-28A10

1
Out of stock

11

WASHER

51356-24B01

1
Out of stock

12

BOLT, UPPER

51451-41C00

2
Out of stock
