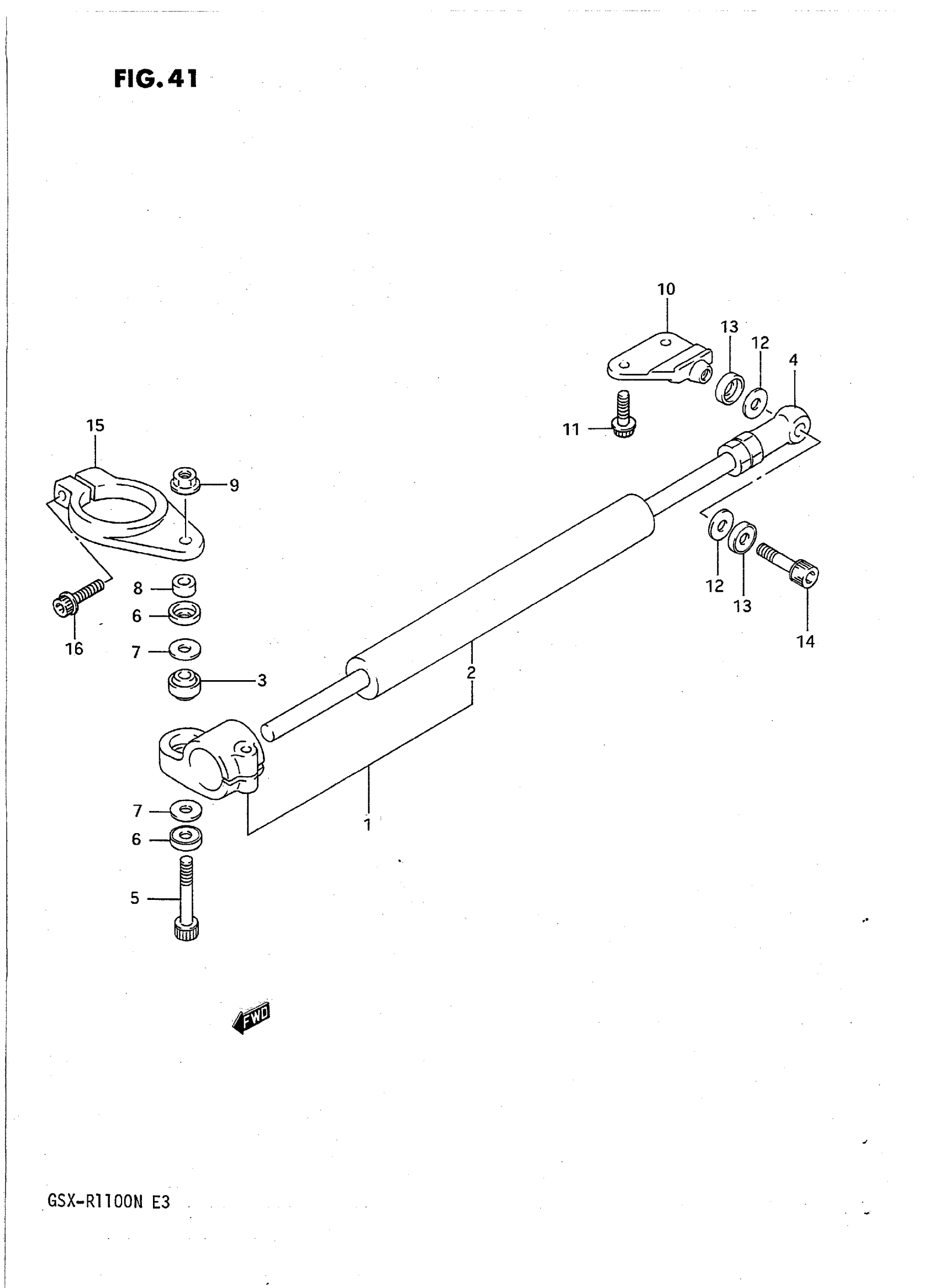

Suzuki GSX-R1100N (1992) STEERING DAMPER Diagram

#

Description
Price

1

DAMPER ASSY, STEERING | Includes Item(s) 2 - 4 This part replaces 51750-40C21.

51750-17E00

Unavailable

2

DAMPER

51759-40C21

Unavailable

3

BEARING

09269-08003

$46.80

4

END, LOD

51760-40C01

Unavailable

5

BOLT This part replaces 07110-08407.

07130-08407

$2.88

6

DUST SEAL TORQU This part replaces 64339-40410.

64339-40411

$6.62

7

SHIM (8X12X0.8) This part replaces 08221-08126.

09181-08106

$2.38

8

SPACER,8.4X14X6 This part replaces 09180-08130.

09180-08130-XC0

Unavailable

9

NUT

08319-31087

$2.31

10

NO DESCRIPTION AVAILABLE This part replaces 41684-40C00.

41684-40C01

Unavailable

11

BOLT This part replaces 07120-06208.

07120-06207

$4.18

12

SHIM (8X12X0.8) This part replaces 08221-08126.

09181-08106

$2.38

13

DUST SEAL TORQU This part replaces 64339-40410.

64339-40411

$6.62

14

BOLT This part replaces 07110-08357.

07130-08357

$2.92

15

BRACKET, FORK

51781-40C41

Unavailable

16

BOLT This part replaces 07120-06358.

07120-0635B

$3.10
