1990 Suzuki GSX-R1100 Front Wheel Diagram

← All diagrams

Find the part on the Front Wheel diagram for your 1990 Suzuki GSX-R1100, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

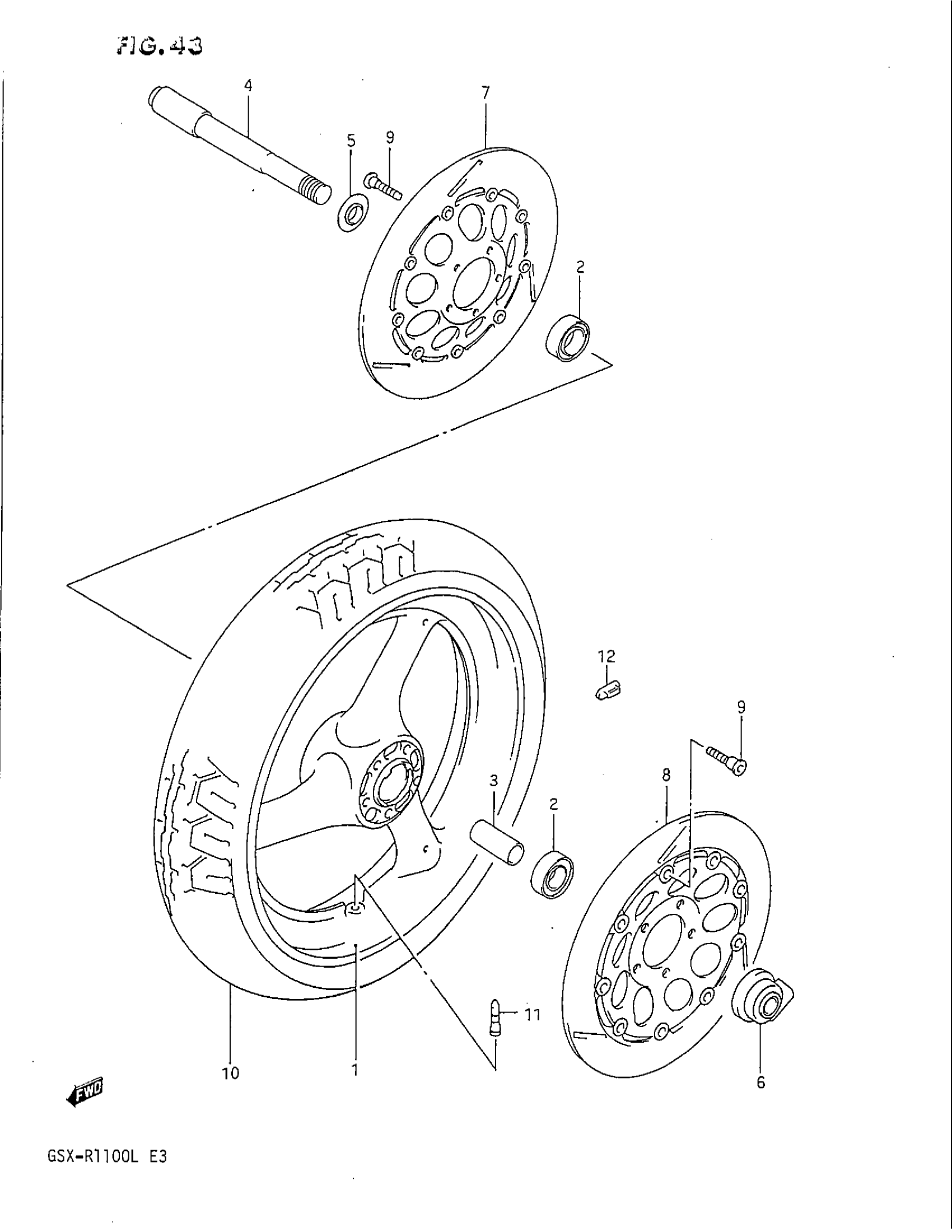

1990 Suzuki GSX-R1100 Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE | FOR 9SR,3SH This part replaces 54111-17C00-28W.

54111-17C10-28W

1
Out of stock

1

NO DESCRIPTION AVAILABLE | FOR 3CG This part replaces 54111-17C00-12R.

54111-17C10-12R

1
Out of stock

2

BEARING This part replaces 08123-62047.

08123-6204B

2
Out of stock

3

SPACER

09180-20103

1
Out of stock

4

AXLE, FRONT This part replaces 54711-17C00.

54711-17C10

1
Out of stock

5

SPACER, BEARING RH

54740-17C00

1
Out of stock

6

BOX ASSY, SPEEDOMETER GEAR This part replaces 54600-17C00.

54600-17C01

1
Out of stock

7

DISC,FRONT BRAK This part replaces 59210-40C01.

59210-40C03

1
Out of stock

8

NO DESCRIPTION AVAILABLE This part replaces 59220-40C01.

59220-40C03

1
Out of stock

9

BOLT (8X33) This part replaces 09106-08062.

09106-08148

10
Out of stock

10

NO DESCRIPTION AVAILABLE | MODEL KEXECUTED LOCALLY This part replaces 55110-17C20.

55110-40C10

1
Out of stock

10

TIRE, FRONT (130/60 ZR17) | MODEL LEXECUTED LOCALLY

55110-40C20

1
Out of stock

11

VALVE

43130-24A00

1
Out of stock

12

BALANCER (10G)

55411-00A00

1
Out of stock

12

BALANCER, WHEEL NO.2 This part replaces 55412-00A00.

55412-17G00

1
Out of stock

12

BALANCER (30G) This part replaces 55413-00A00.

55413-00A01

1
Out of stock
