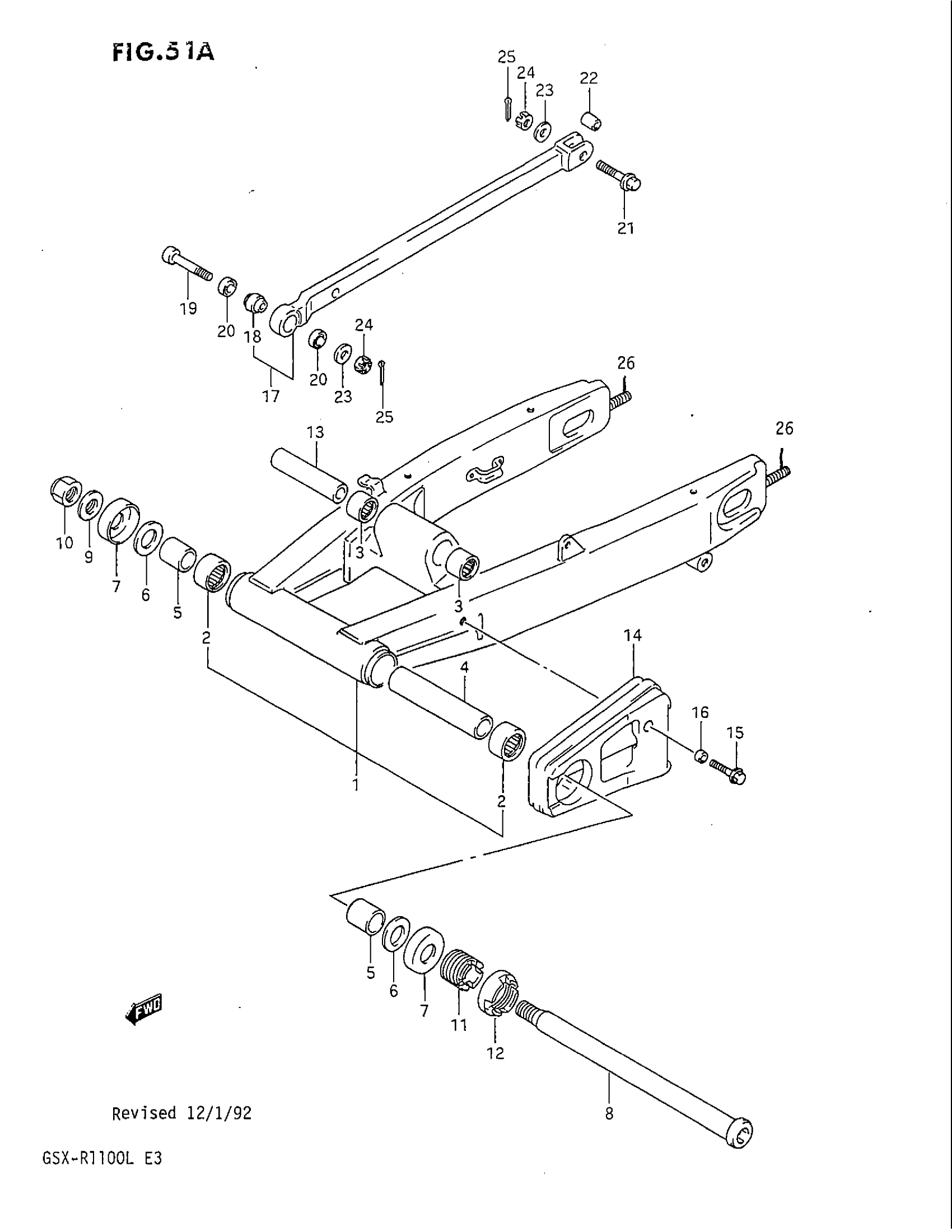

Suzuki GSX-R1100 (1990) REAR SWINGING ARM (MODEL L) Diagram

#

Description
Price

1

SWINGING ARM ASSY, REAR | Includes Item(s) 2 - 4

61000-40C10

Unavailable

2

BEARING, PIVOT

09263-25024

$23.72

3

BEARING

09263-20071

$23.72

4

.SPACER,RR SWGARM PIVOT CTR

61282-17C00

$32.08

5

SPACER, BEARING

61251-17C00

$48.95

6

WASHER, THRUST (T:1)

08211-20381

Unavailable

6

WASHER, THRUST (T:1.5)

08211-20382

Unavailable

7

DUST SEAL,RR SW This part replaces 61262-17C00.

61262-17C01

$7.67

8

SHAFT, PIVOT

61211-40C00

Unavailable

9

WASHER This part replaces 08322-11188.

08322-0118B

$2.95

10

NUT

09159-18007

$21.28

11

BOLT, PIVOT

61213-40C30

Unavailable

12

NUT, PIVOT BOLT This part replaces 61214-40C30.

61214-40C31

$64.22

13

SPACER, LEVER

62317-40C10

Unavailable

14

BUFFER, CHAIN TOUCH DEFENCE

61273-40C00

Unavailable

15

BOLT This part replaces 09116-06111.

09116-06152

$2.14

16

SPACER (6.5X10X7) This part replaces 09180-06002.

09180-06283

$1.89

17

NO DESCRIPTION AVAILABLE | Includes Item(s) 18 This part replaces 64300-40820.

64300-40821

Unavailable

18

BEARING This part replaces 64352-40411.

64352-40401

Unavailable

19

BOLT, FRONT

09106-08048

$6.23

20

DUST SEAL TORQU This part replaces 64339-40410.

64339-40411

$6.62

21

BOLT, REAR

09103-08160

Unavailable

22

SPACER

64336-20A00

Unavailable

23

WASHER This part replaces 08322-11088.

08322-01087

$1.86

24

NUT This part replaces 08314-41088.

08314-4008B

$3.30

25

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.22
