1990 Suzuki GSX-R1100 Front Damper Diagram

← All diagrams

Find the part on the Front Damper diagram for your 1990 Suzuki GSX-R1100, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

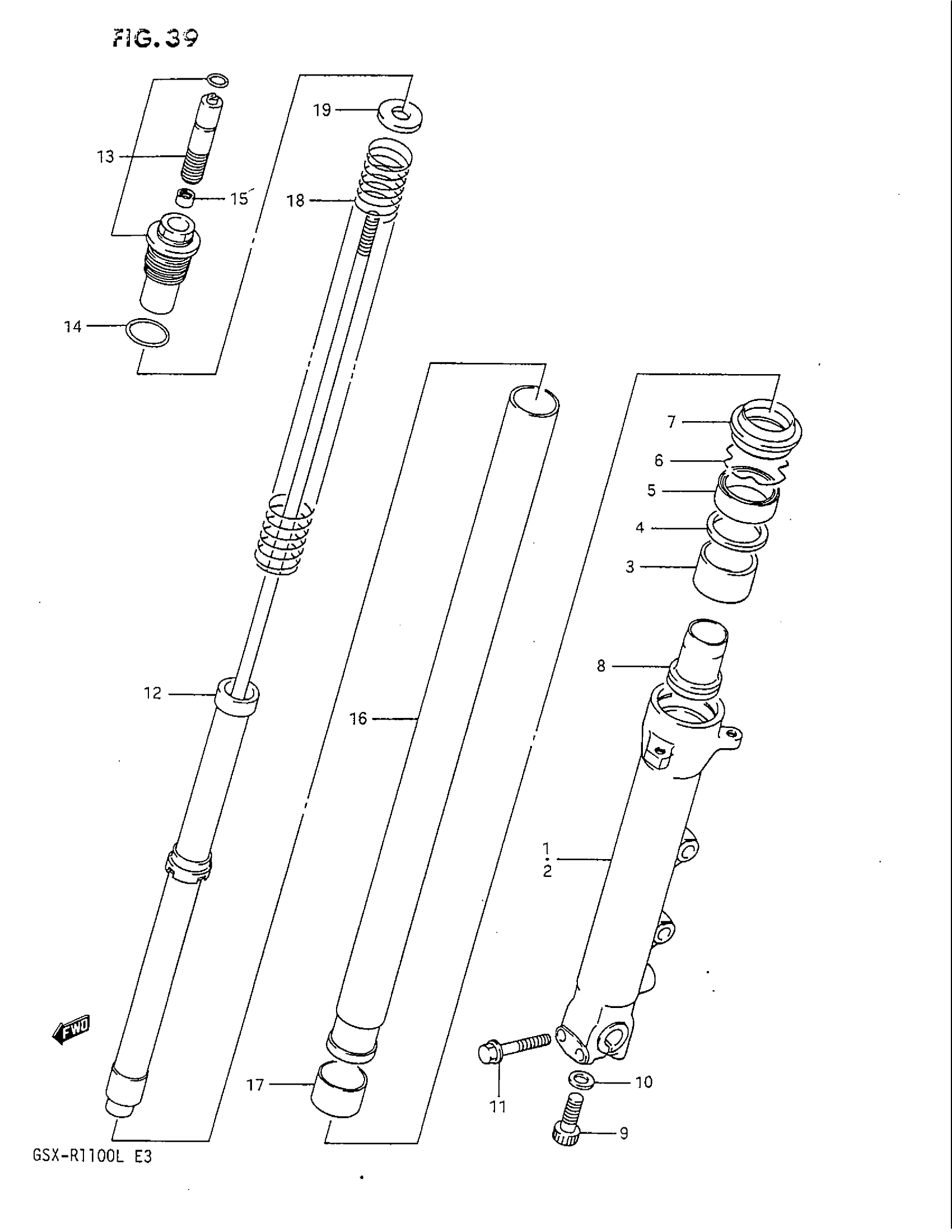

1990 Suzuki GSX-R1100 Front Damper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

DAMPER ASSY, RH | MODEL K

51103-40C10

1
Out of stock

DAMPER ASSY, RH | MODEL L

51103-40C30

1
Out of stock

DAMPER ASSY, LH | MODEL K

51104-40C10

1
Out of stock

DAMPER ASSY, LH | MODEL L; Includes Item(s) 1 - 19

51104-40C30

1
Out of stock

1

TUBE, OUTER RH

51130-40C00

1
Out of stock

2

TUBE, OUTER LH

51140-40C00

1
Out of stock

3

METAL, SLIDE

51167-40C00

2
Out of stock

4

WASHER

51158-14200

2
Out of stock

5

SEAL, OIL This part replaces 51153-40C00.

51153-46E20

2
Out of stock

6

RING, STOPPER

51156-14200

2
Out of stock

7

DUST SEAL

51173-40C00

2
Out of stock

8

PIECE, OIL LOCK

51195-40C00

2
Out of stock

9

BOLT

51147-40C00

2
Out of stock

10

GASKET

51148-40300

2
Out of stock

11

CAP HEAD BOLT M8X45 This part replaces 51766-40C00.

07130-08457

2
Out of stock

12

NO DESCRIPTION AVAILABLE | MODEL K This part replaces 51146-40C00.

51146-40C90

2
Out of stock

12

NO DESCRIPTION AVAILABLE | MODEL L This part replaces 51146-40C30.

51146-40C90

2
Out of stock

13

BOLT, FORK

51351-40C00

2
Out of stock

14

.O RING This part replaces 51117-14200.

51117-14201

2
Out of stock

15

.NUT, ROD

51352-13A60

2
Out of stock

16

TUBE, INNER | MODEL K

51110-40C00

2
Out of stock

16

TUBE, INNER | MODEL L

51110-40C30

2
Out of stock

17

BUSH, SLIDE

51121-40C00

2
Out of stock

18

SPRING | MODEL K

51171-40C10

2
Out of stock

18

SPRING | MODEL L

51171-40C30

2
Out of stock

19

WASHER

51192-40C00

2
Out of stock
