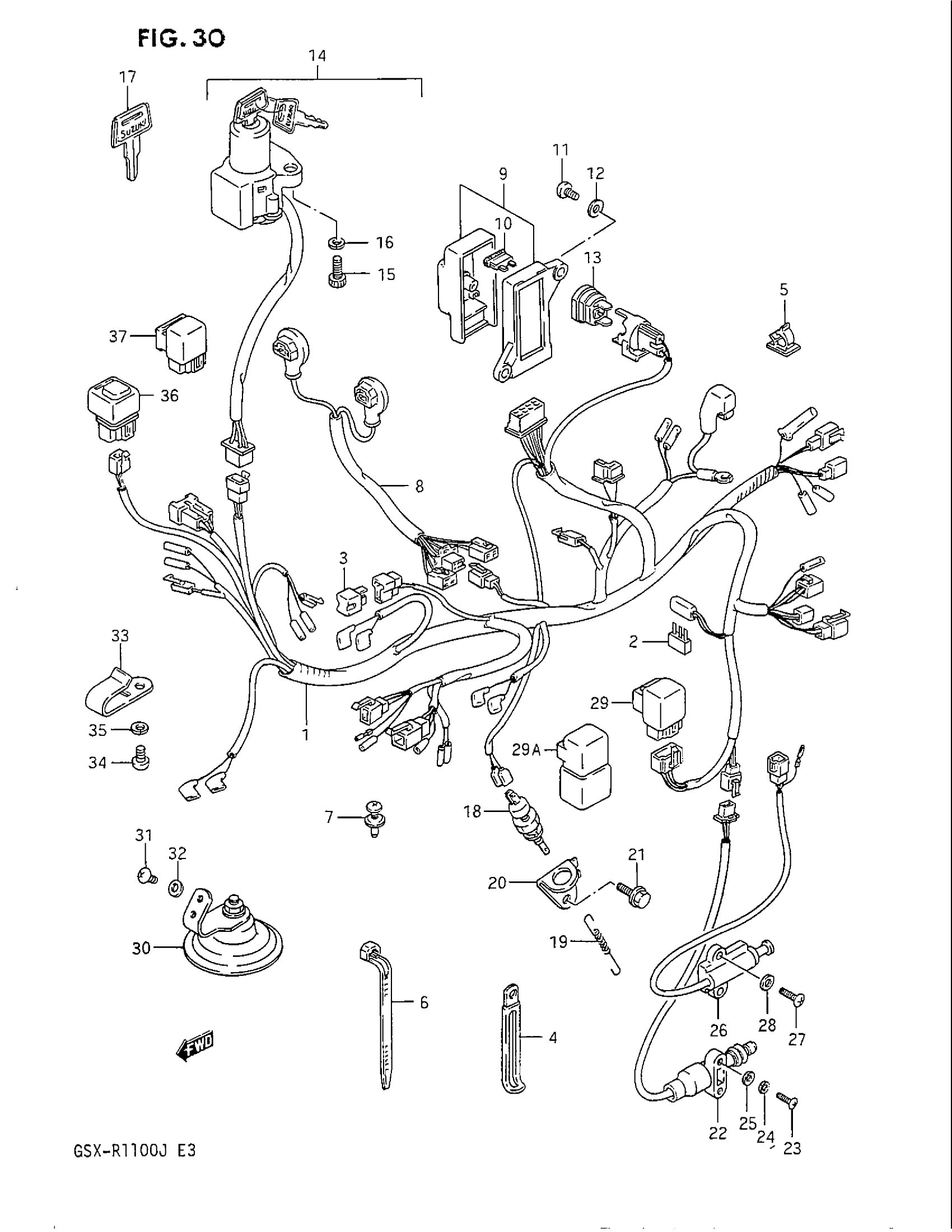

Suzuki GSX-R1100 (1988) WIRING HARNESS Diagram

#

Description
Price

1

HARNESS, WIRING | MODEL G

36610-06B00

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL H/J; Includes Item(s) 2 - 3 This part replaces 36610-06B30.

36610-06B32

Unavailable

2

.DIODE | MODEL H/J This part replaces 36611-38A00.

36611-38A10

$13.16

3

DIODE

32800-16A00

$23.07

4

CLAMP(L:80) This part replaces 09404-06415.

09404-06036

$1.74

5

CLAMP This part replaces 09403-07315.

09403-04310

$5.35

6

CLAMP (L:125) | MODEL G/HMODEL J

09407-14403

$2.26

6

CLAMP (L:165) | MODEL G/HMODEL J

09407-18402

$2.19

6

CLAMP (L:235) This part replaces 09407-25403.

09407-25401

$4.66

7

CLIP This part replaces 09409-07305.

09409-07305-5PK

$2.21

8

WIRE,HEADLAMP L This part replaces 36856-06B11.

36856-06B02

Unavailable

9

BOX ASSY, FUSE | Includes Item(s) 10 This part replaces 36740-05A01.

36740-27A00

Unavailable

10

FUSE (10A)

09481-10101

$2.07

11

SCREW This part replaces 02112-06128.

02112-06127

$1.84

12

WASHER This part replaces 08322-21067.

08322-01067

$2.13

13

BREAKER ASSY, CIRCUIT

36750-05A00

$44.50

14

SWITCH ASSY, IGNITION | Includes Item(s) 15 - 16

37110-06B00

Unavailable

15

BOLT This part replaces 37152-47011.

07130-0616B

$2.39

16

LOCK WASHER This part replaces 08321-21067.

08321-01067

$2.13

17

KEY, BLANK | OPT

37145-16700

$13.74

18

SWITCH ASSY, STOP LAMP

37740-24A00

$18.20

19

SPRING This part replaces 09443-06056.

09443-06056-XC0

Unavailable

20

BRACKET, STOP LAMP SWITCH

43251-27A00

Unavailable

21

BOLT

01547-06207

$2.01

22

SWITCH, SIDE STAND WARNING | MODEL G

37840-14A01

Unavailable

23

SCREW | MODEL G This part replaces 02112-05205.

02112-0520B

$1.84

24

LOCK WASHER | MODEL G This part replaces 08321-21055.

08321-0105A

$1.84

25

WASHER, FRONT | MODEL G This part replaces 08322-21055.

08322-0105A

$1.84

26

SWITCH ASSY,SID | MODEL H This part replaces 37840-06B00.

37840-26X52

$74.31

26

SWITCH ASSY,SID | MODEL J This part replaces 37840-06B10.

37840-26X52

$74.31

27

SCREW | MODEL H/J This part replaces 02112-06164.

02112-0616A

$1.49

28

.WASHER | MODEL H/J This part replaces 08322-21064.

08322-0106B

$2.26

29

RELAY ASSY, SIDE STAND | MODEL H This part replaces 38740-24B00.

38740-24X50

$45.20

29A

RELAY ASSY, SIDE STAND | MODEL J This part replaces 38740-24B10.

38740-24X50

$45.20

30

HORN ASSY | MODEL G/H This part replaces 38500-06B21.

38500-06B22

Unavailable

30

HORN ASSY | MODEL J

38500-06B22

Unavailable

31

SCREW This part replaces 02112-06104.

02112-0610B

$1.84

32

.WASHER This part replaces 08322-21064.

08322-0106B

$2.26

33

CLAMP, HANDLE SWITCH WIRE

36619-06B00

Unavailable

34

SCREW This part replaces 02112-06125.

02112-0612A

$1.49

35

LOCK WASHER This part replaces 08321-21064.

08321-0106A

$1.84

36

RELAY ASSY, SIDE STAND | MODEL G/H This part replaces 38640-06B00.

38740-24X50

$45.20

37

RELAY ASSY, SIDE STAND | MODEL J This part replaces 38640-06B10.

38740-24X50

$45.20
