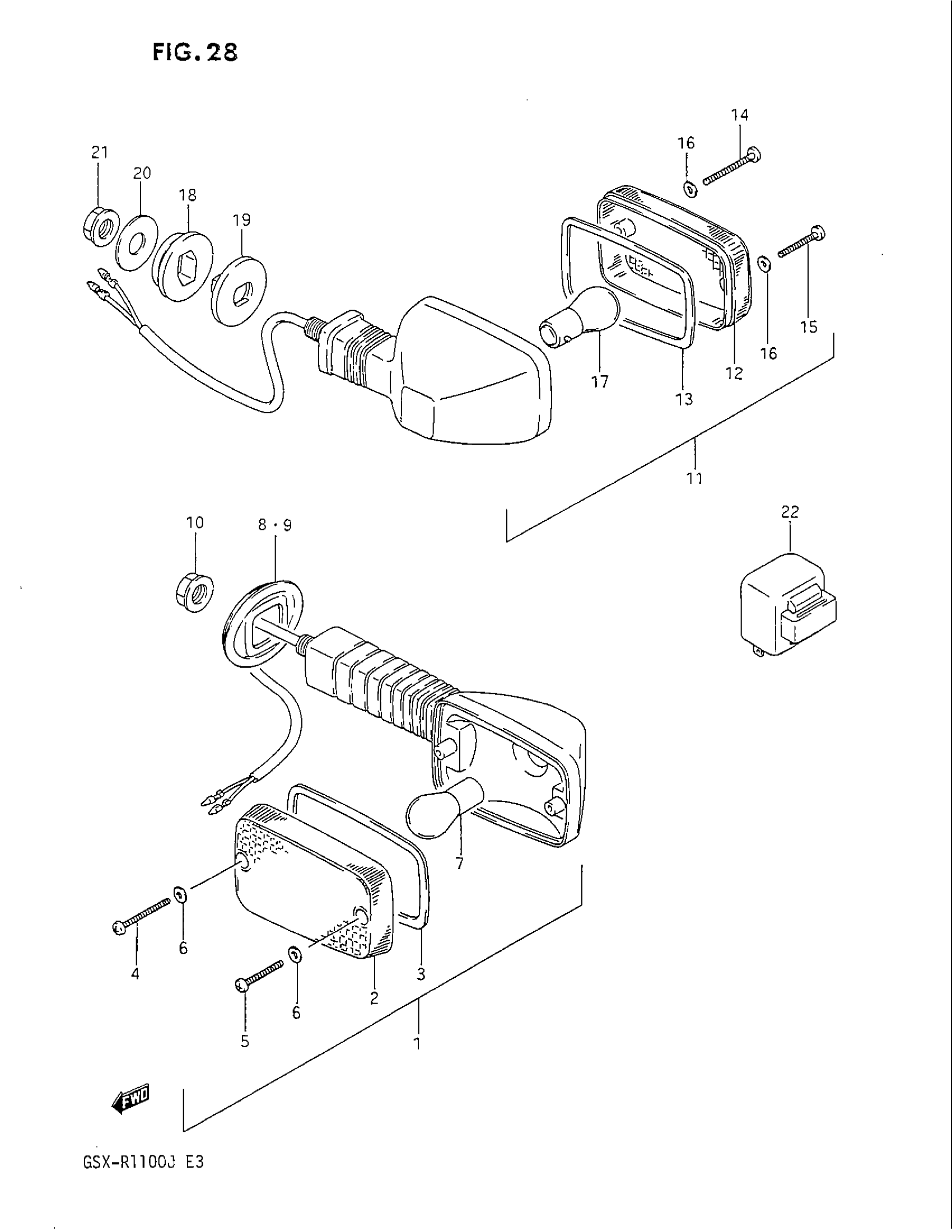

Suzuki GSX-R1100 (1988) TURN SIGNAL LAMP Diagram

#

Description
Price

1

LAMP ASSY,FR TR | Includes Item(s) 2 - 7 This part replaces 35601-06B30.

35601-14A42-999

Unavailable

2

LENS

35612-02181

Unavailable

3

GASKET

35613-48700

Unavailable

4

SCREW (4X38)

35623-02180

Unavailable

5

SCREW This part replaces 03211-04308.

03211-04306

$1.78

6

GASKET

35627-43010

$2.28

7

BULB (12V,23W)

09471-12006

$3.98

8

GROMMET, FRONT RH

35674-27A30

Unavailable

9

GROMMET, FRONT LH

35684-27A30

Unavailable

10

NUT This part replaces 08316-26105.

08316-2010B

$3.43

11

LAMP ASSY,RR TR | Includes Item(s) 12 - 17 This part replaces 35603-06B30.

35603-06B30-999

Unavailable

12

LENS

35652-02181

Unavailable

13

GASKET

35613-48700

Unavailable

14

SCREW (4X38)

35623-02180

Unavailable

15

SCREW This part replaces 03211-04308.

03211-04306

$1.78

16

GASKET

35627-43010

$2.28

17

BULB (12V,23W)

09471-12006

$3.98

18

CUSHION This part replaces 35692-06B00.

35692-06B01

Unavailable

19

SPACER

35695-06B00

Unavailable

20

WASHER This part replaces 09160-10078.

09160-10035

$1.78

21

NUT This part replaces 08316-26105.

08316-2010B

$3.43

22

RELAY ASSY, TURNSIGNAL This part replaces 38610-31310.

38610-31X50

$80.15
