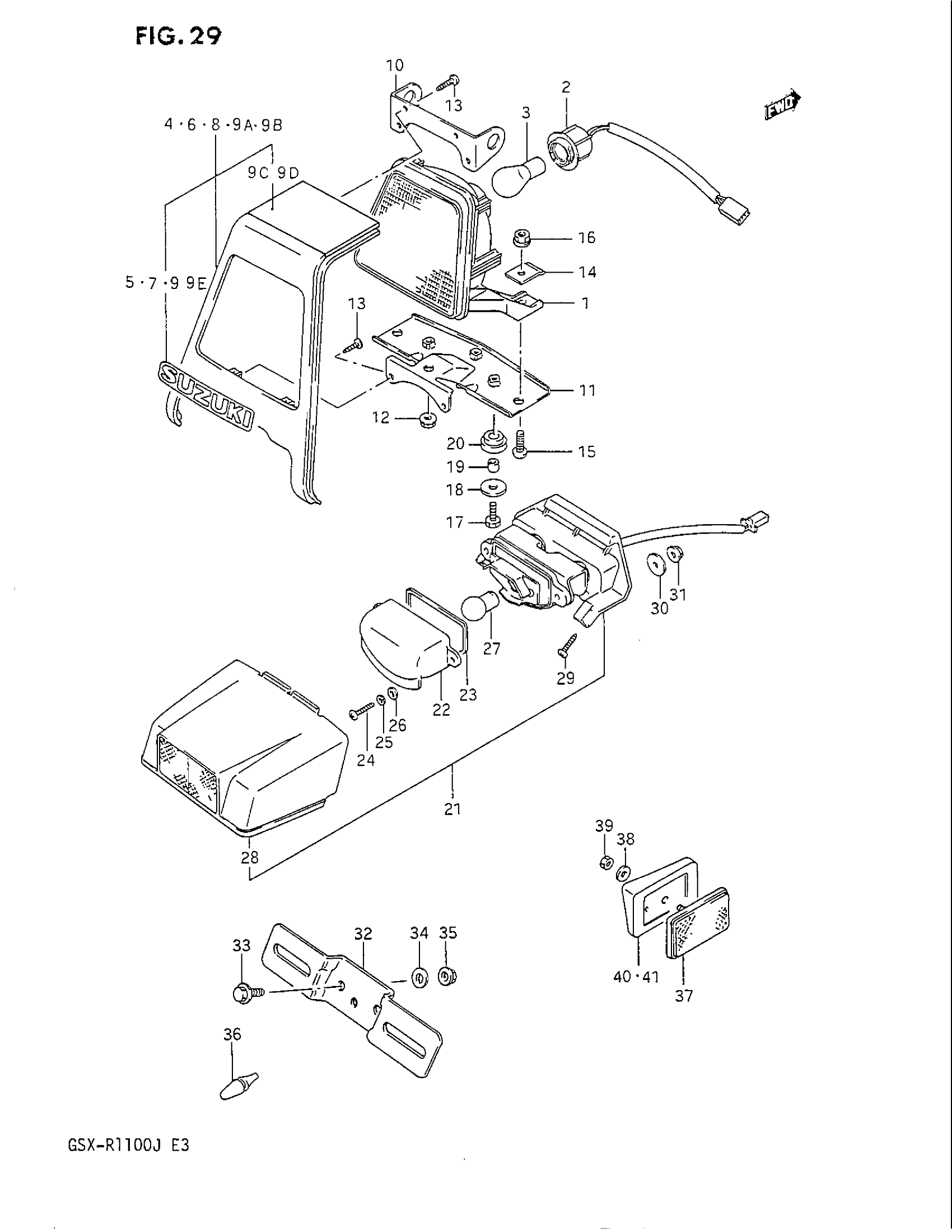

Suzuki GSX-R1100 (1988) TAIL LAMP - LICENSE LAMP Diagram

#

Description
Price

1

UNIT, REAR COMBINATION LAMP

35740-27A31

Unavailable

2

NO DESCRIPTION AVAILABLE This part replaces 35718-27A00.

35718-20A50

Unavailable

3

BULB (12V,23/8W) | MODEL G/H

09471-12084

Unavailable

3

BULB (12V,21/5W) | MODEL J

09471-12128

$6.73

4

NO DESCRIPTION AVAILABLE | MODEL G; Includes Item(s) 5 This part replaces 35796-27A10-23Z.

35796-27A10-291

Unavailable

5

EMBLEM,"SUZUKI" This part replaces 68166-31300-742.

68166-31310-13L

$4.52

6

NO DESCRIPTION AVAILABLE | MODEL H; Includes Item(s) 7 This part replaces 35796-27A10-13Z.

35796-27A10-291

Unavailable

7

EMBLEM,"SUZUKI" This part replaces 68166-31300-742.

68166-31310-13L

$4.52

8

NO DESCRIPTION AVAILABLE | MODEL H; Includes Item(s) 9 This part replaces 35796-27A10-34R.

35796-27A10-291

Unavailable

9

EMBLEM,"SUZUKI" | MODEL H This part replaces 68166-31300-064.

68166-31310-064

Unavailable

9A

NO DESCRIPTION AVAILABLE | MODEL J This part replaces 35796-06B10-22P.

35796-06B11-22P

Unavailable

9B

NO DESCRIPTION AVAILABLE | MODEL J; Includes Item(s) 9C - 9E This part replaces 35796-06B10-30X.

35796-06B11

Unavailable

9C

NO DESCRIPTION AVAILABLE | FOR 22P This part replaces 68655-06B00-13Z.

68655-06B01-13Z

Unavailable

9D

NO DESCRIPTION AVAILABLE | FOR 30X This part replaces 68655-06B00-22R.

68655-06B01-22R

Unavailable

9E

EMBLEM,"SUZUKI" This part replaces 68166-31300-22R.

68166-31310-13L

$4.52

10

PLATE

35716-27A00

Unavailable

11

BRACKET

35726-27A00

Unavailable

12

NUT This part replaces 08316-26066.

08316-1006B

$2.50

13

SCREW

03212-04169

$1.49

14

PLATE

35716-40A00

Unavailable

15

SCREW This part replaces 02112-06166.

02112-0616A

$1.49

16

NUT This part replaces 08316-26066.

08316-1006B

$2.50

17

BOLT, GEAR SHIFT LINK This part replaces 01107-06206.

01500-0620A

$1.78

18

WASHER (6.5X20X1.6) This part replaces 09160-06020.

09160-06066

$1.89

19

SPACER This part replaces 09180-06084.

09180-06038

$1.98

20

CUSHION

09320-09028

Unavailable

21

LAMP ASSY, LICENSE | Includes Item(s) 22 - 29 This part replaces 35910-06B30.

35910-28A30

Unavailable

22

LENS

35912-00A10

Unavailable

23

GASKET

35913-04A00

Unavailable

24

SCREW This part replaces 02112-04167.

02112-0416A

$1.49

25

LOCK WASHER This part replaces 08321-21047.

08321-0104A

$1.84

26

WASHER This part replaces 08322-21047.

08322-01047

$1.86

27

BULB (12V, BW) This part replaces 09471-12037.

09471-12141

Unavailable

28

COVER, LICENSE LAMP

35917-06B30

Unavailable

29

SCREW This part replaces 03241-04165.

03242-0416B

$2.93

30

WASHER (5.5X20X1.2) This part replaces 09160-05011.

09160-05501

$1.84

31

NUT This part replaces 08316-26056.

08316-2005A

$2.19

32

BRACKET, LICENSE PLATE

35927-27A30

Unavailable

33

BOLT This part replaces 01517-06168.

01550-06167

$2.30

34

WASHER (6.5X20X1.6) This part replaces 09160-06020.

09160-06066

$1.89

35

NUT This part replaces 08316-26066.

08316-1006B

$2.50

36

CUSHION

09321-06023

$2.50

37

REFLEX REFLECTOR, REAR SIDE This part replaces 35970-49310.

35970-08A30

Unavailable

38

WASHER

09160-05013

$1.49

39

NUT This part replaces 08310-11058.

08310-00057

$1.84

40

SPACER, RH

35977-27A00

Unavailable

41

SPACER, LH

35978-27A00

Unavailable
