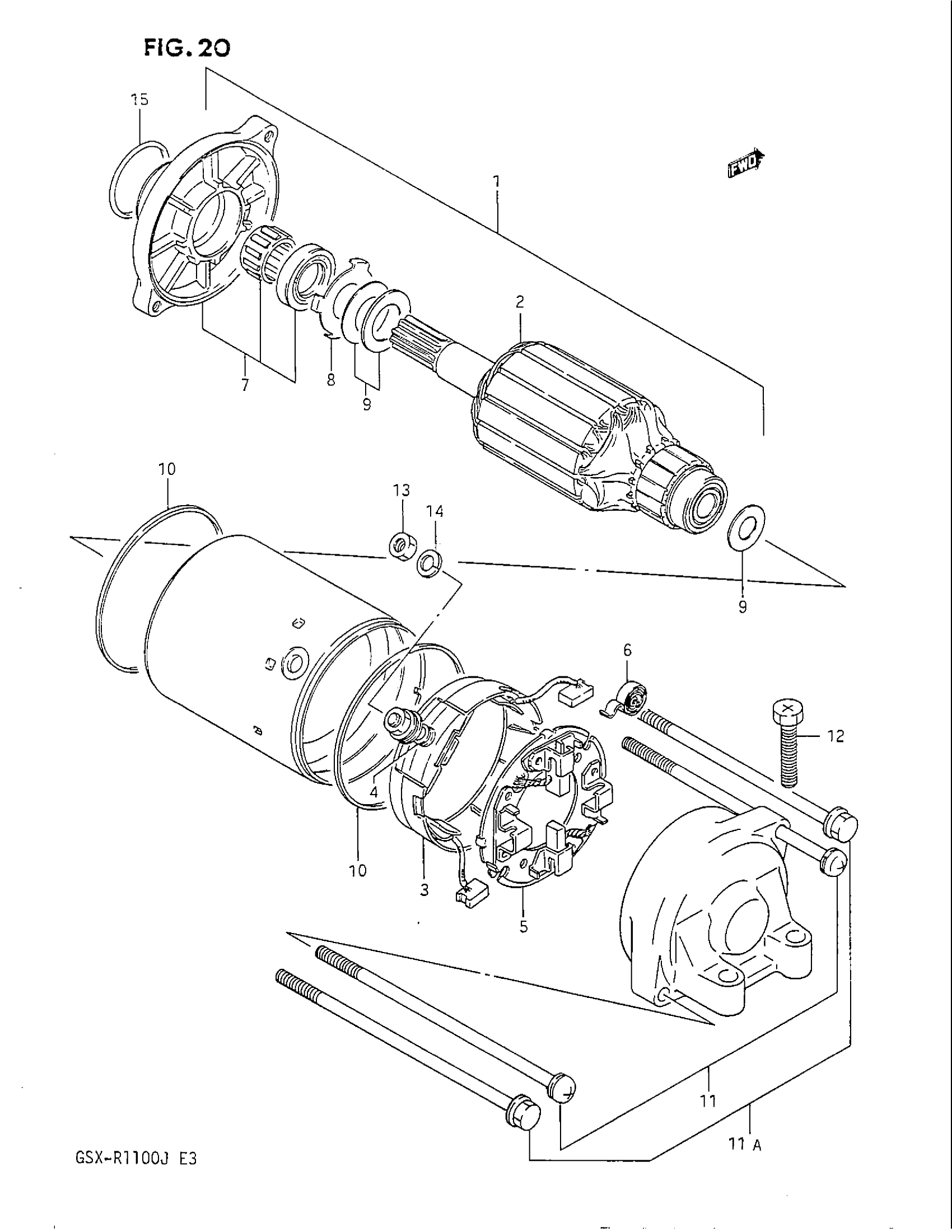

Suzuki GSX-R1100 (1988) STARTING MOTOR Diagram

#

Description
Price

1

MOTOR ASSY,STAR | MODEL G This part replaces 31100-06B00.

31100-19C03

Unavailable

1

MOTOR ASSY,STAR | MODEL H This part replaces 31100-06B01.

31100-19C03

Unavailable

1

MOTOR ASSY,STAR | MODEL J; Includes Item(s) 2 - 11A This part replaces 31100-06B02.

31100-19C03

Unavailable

2

ARMATURE

31311-06B00

Unavailable

3

TERMINAL SET, BRUSH (+)

31130-06B00

Unavailable

4

O RING

31143-49040

$3.71

5

HOLDER SET, BRUSH (-)

31132-06B00

Unavailable

6

SPRING, BRUSH

31135-49040

Unavailable

7

BRACKET SET

31150-05A00

Unavailable

8

SHIM SET This part replaces 31360-19B00.

31170-19B00

Unavailable

9

SHIM SET

31360-06B00

Unavailable

10

O RING

31264-49040

Unavailable

11

BOLT | MODEL G/H This part replaces 31280-05A00.

31280-06B00

Unavailable

11A

BOLT | MODEL J

31280-06B00

Unavailable

12

BOLT, STARTING MOTOR This part replaces 09128-06024.

09103-06212

$2.47

13

NUT This part replaces 08310-11066.

08310-0006A

$1.84

14

LOCK WASHER This part replaces 08321-21066.

08321-0106A

$1.84

15

.O-RING (D:3,ID:24.5)

09280-24003

$1.55
