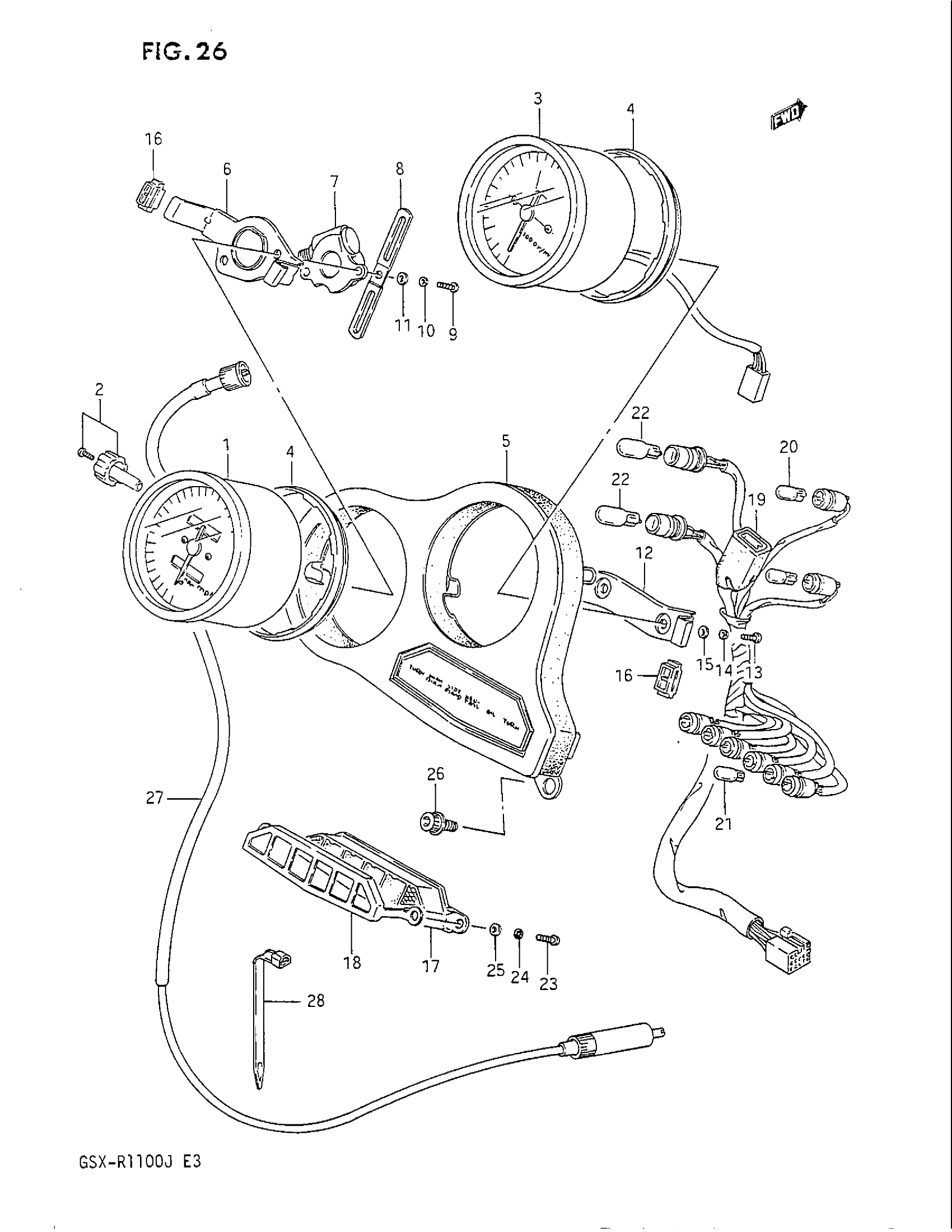

Suzuki GSX-R1100 (1988) SPEEDOMETER Diagram

#

Description
Price

1

SPEEDOMETER (MILE/KILO) | MODEL G/H This part replaces 34110-06B30.

34110-06B20

Unavailable

1

SPEEDOMETER (MILE/KILO) | MODEL J

34110-06B20

Unavailable

2

KNOB, TRIP

34124-04A30

$7.08

3

TACHOMETER

34210-06B10

Unavailable

4

CUSHION, METER

34288-06B10

Unavailable

5

BRACKET, METER | MODEL G

34950-06B10

Unavailable

5

BRACKET, METER | MODEL H/J

34950-06B50

Unavailable

6

PLATE, SPEEDOMETER

34111-04A30

Unavailable

7

BOX, METER GEAR

34131-04A00

Unavailable

8

CLAMP

36385-06B10

Unavailable

9

SCREW This part replaces 02112-04124.

02112-0412A

$1.49

10

LOCK WASHER This part replaces 08321-21045.

08321-0104A

$1.84

11

WASHER This part replaces 08322-21045.

08322-0104A

$1.91

12

PLATE, TACHOMETER

34211-06B10

Unavailable

13

SCREW This part replaces 02112-04085.

02112-0408A

$1.49

14

LOCK WASHER This part replaces 08321-21045.

08321-0104A

$1.84

15

WASHER This part replaces 08322-21045.

08322-0104A

$1.91

16

CUSHION This part replaces 34189-04A30.

34189-27A00

$6.17

17

BOX, PILOT LAMP

36380-04A30

Unavailable

18

PLATE, PILOT LAMP

36383-04A30

Unavailable

19

SOCKET, METER | MODEL G

34170-06B10

Unavailable

19

SOCKET, METER | MODEL H/J This part replaces 34170-06B50.

34170-06B10

Unavailable

20

BULB (12V,3W) | MODEL GMODEL H/J

09471-12103

$3.83

21

.BULB (12V1.7W)

09471-12108

$3.42

22

BULB (12V,3.4W)

09471-12028

$1.99

23

SCREW This part replaces 02112-04124.

02112-0412A

$1.49

24

LOCK WASHER This part replaces 08321-21045.

08321-0104A

$1.84

25

WASHER This part replaces 08322-21045.

08322-0104A

$1.91

26

BOLT, OIL GALLERY This part replaces 07120-06125.

07120-0612B

$3.04

27

CABLE ASSY, SPEEDOMETER

34910-06B00

Unavailable

28

CLAMP, METER CABLE

09407-14403

$2.26
