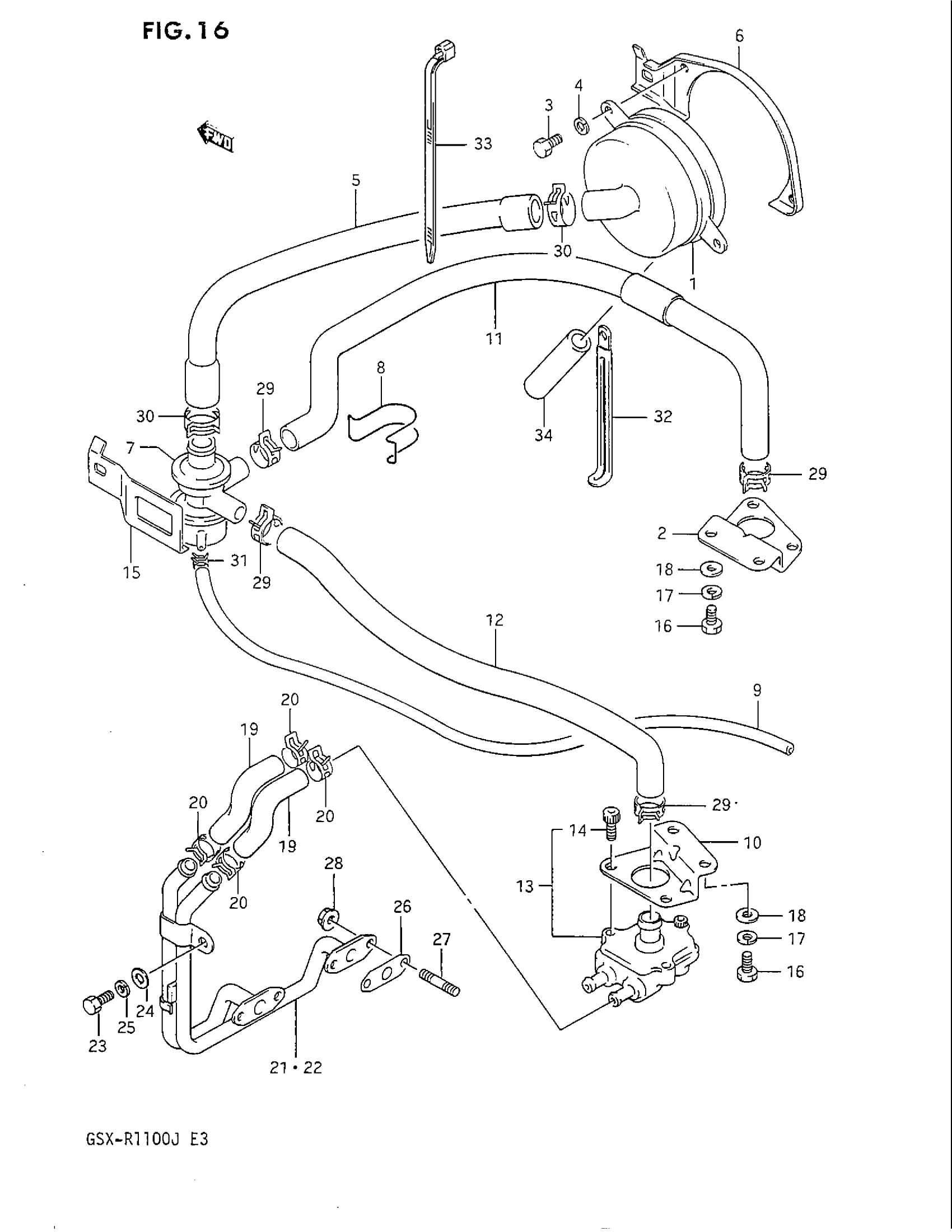

Suzuki GSX-R1100 (1988) SECOND AIR (MODEL J CALIFORNIA ONLY) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 18700-06B00.

18700-06B02

Unavailable

2

BRACKET, REED VALVE,RH

18471-06B00

Unavailable

3

BOLT This part replaces 01107-06125.

01500-0612A

$1.78

4

.WASHER This part replaces 08322-21064.

08322-0106B

$2.26

5

NO DESCRIPTION AVAILABLE This part replaces 18551-06B00.

18551-06B01

Unavailable

6

BRACKET, 2ND AIR CLEANER

18750-06B00

Unavailable

7

VALVE ASSY, AIR SWITCING

18510-06B00

Unavailable

8

CLAMP, SWITCHING VALVE

18522-17C00

Unavailable

9

HOSE, 2ND AIR VALVE VACUUM This part replaces 09359-45852-550.

09359-45852-600

Unavailable

10

BRACKET, REED VALVE,LH

18472-06B00

Unavailable

11

HOSE, 2ND AIR,NO.2,RH

18480-06B00

Unavailable

12

HOSE, 2ND AIR,NO.2,LH

18482-06B00

Unavailable

13

VALVE ASSY, 2ND AIR REED | Includes Item(s) 14

18450-48B00

Unavailable

14

BOLT This part replaces 07110-05167.

07130-05167

$3.15

15

BRACKET, SWITCHING

18521-06B00

Unavailable

16

BOLT, CANISTER This part replaces 01107-06167.

01500-06167

$1.97

17

LOCK WASHER This part replaces 08321-21067.

08321-01067

$2.13

18

WASHER This part replaces 08322-21067.

08322-01067

$2.13

19

HOSE, 2ND AIR,NO.1

18445-06B00

Unavailable

20

CLAMP This part replaces 09401-13408.

09401-13417

$2.26

21

PIPE, 2ND AIR,RH

18401-06B00

Unavailable

22

PIPE, 2ND AIR,LH

18402-06B00

Unavailable

23

BOLT This part replaces 01107-06126.

01500-0612A

$1.78

24

WASHER

09160-06019

$1.49

25

LOCK WASHER This part replaces 08321-21066.

08321-0106A

$1.84

26

GASKET, 2ND AIR PIPE This part replaces 18441-17C00.

18441-17C11

$7.25

27

BOLT,STUD This part replaces 01421-06125.

01421-0612A

Unavailable

28

NUT This part replaces 08316-16064.

08316-1006B

$2.50

29

CLIP, NO.2 HOSE

09401-21401

Unavailable

30

CLIP, NO.3 HOSE

09401-25402

Unavailable

31

CLIP, VACUUM HOSE

09401-07401

Unavailable

32

CLAMP, AIR VENT HOSE This part replaces 09404-06419.

09404-06435

$3.68

33

CLAMP

09407-18402

$2.19

34

HOSE, INLET

18731-06B00

Unavailable
