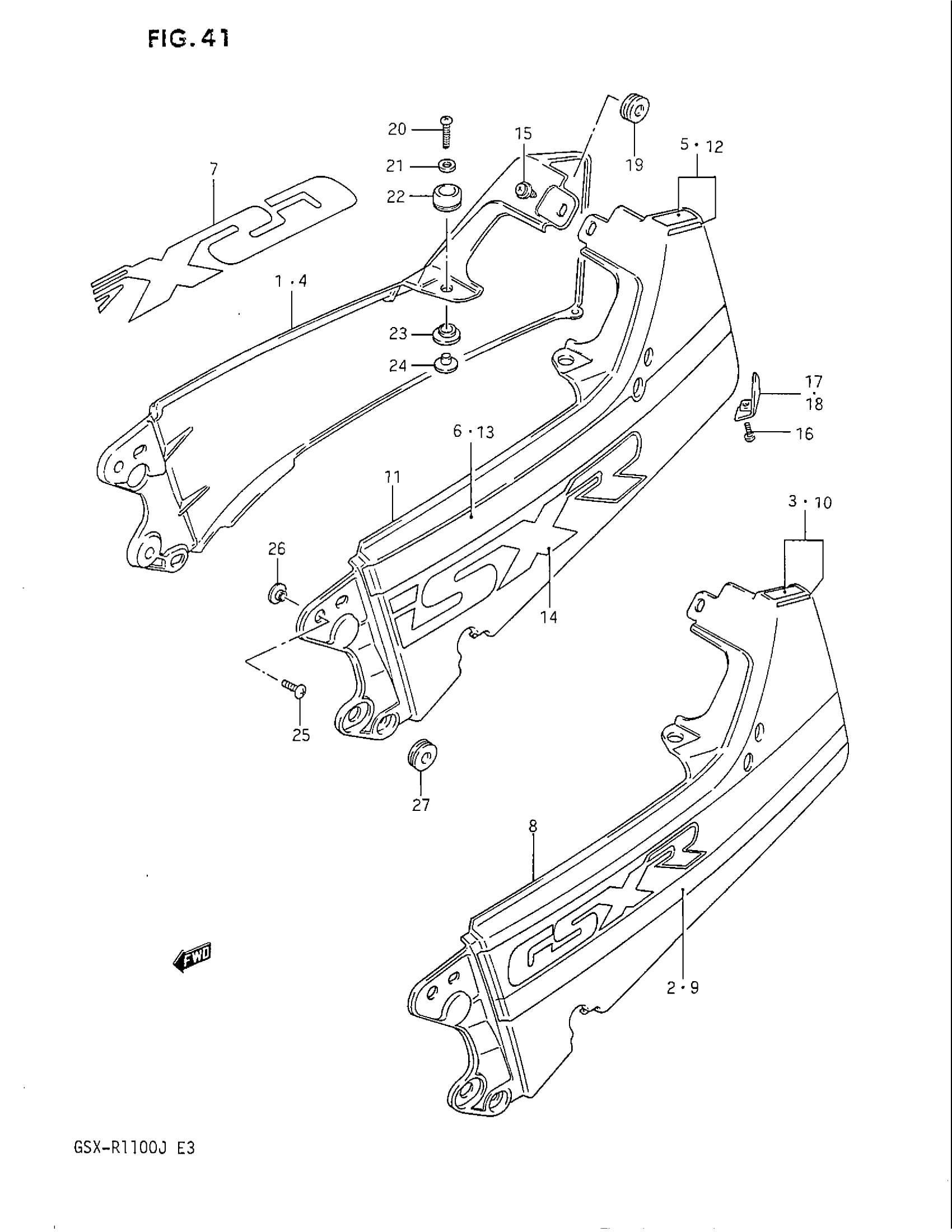

Suzuki GSX-R1100 (1988) SEAT TAIL COVER (MODEL J) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | FOR 9HD; Includes Item(s) 2 - 3 This part replaces 45510-06B60-22P.

45511-27A25

Unavailable

2

TAPE SET, RH | FOR 22P

68165-06B00-2GL

Unavailable

3

TAPE SET, RH (BLACK) | FOR 22P

68165-06B10-13Z

Unavailable

4

NO DESCRIPTION AVAILABLE | FOR 9SR; Includes Item(s) 5 - 7 This part replaces 45510-06B80-2FF.

45511-27A25

Unavailable

5

TAPE SET, RH (WHITE) | FOR 2FF

68165-06B10-22R

Unavailable

6

TAPE SET, RH (WHITE) | FOR 2FF

68165-06B20-22R

Unavailable

7

EMBLEM (WHITE) | FOR 2FF

68161-06B00-22R

Unavailable

8

NO DESCRIPTION AVAILABLE | FOR 9HD; Includes Item(s) 9 - 10 This part replaces 45590-06B60-22P.

45591-27A05

Unavailable

9

TAPE SET, LH | FOR 22P

68245-06B00-2GL

Unavailable

10

TAPE SET, LH (BLACK) | FOR 22P

68245-06B10-13Z

Unavailable

11

NO DESCRIPTION AVAILABLE | FOR 9SR; Includes Item(s) 12 - 14 This part replaces 45590-06B80-2FF.

45591-27A05

Unavailable

12

TAPE SET, LH (WHITE) | FOR 2FF

68245-06B10-22R

Unavailable

13

TAPE SET, LH (WHITE) | FOR 2FF

68245-06B20-22R

Unavailable

14

EMBLEM (WHITE) | FOR 2FF

68241-06B00-22R

Unavailable

15

CLIP This part replaces 09409-06307.

09409-06322-5PK

$3.10

16

.SCREW This part replaces 02142-05126.

02142-0512A

$1.49

17

PLATE, SEAT TAIL COVER RH

45530-27A00

Unavailable

18

PLATE, SEAT TAIL COVER LH

45530-27A10

Unavailable

19

CUSHION (8X22X7) This part replaces 09320-08013.

09320-08509

$1.93

20

SCREW This part replaces 02142-06305.

02142-0630B

$2.62

21

WASHER, CLUTCH RLSE NO.2 This part replaces 09160-06069.

09160-06052

$1.49

22

CUSHION, UPPER

45149-04A00

$3.59

23

CUSHION, LOWER

45326-04A00

$3.32

24

SPACER

45537-04A00

$1.92

25

SCREW This part replaces 02142-06166.

02142-0616A

$1.49

26

WASHER This part replaces 09169-06031.

09169-06041

$2.20

27

CUSHION, FRONT

09320-08018

$3.04
