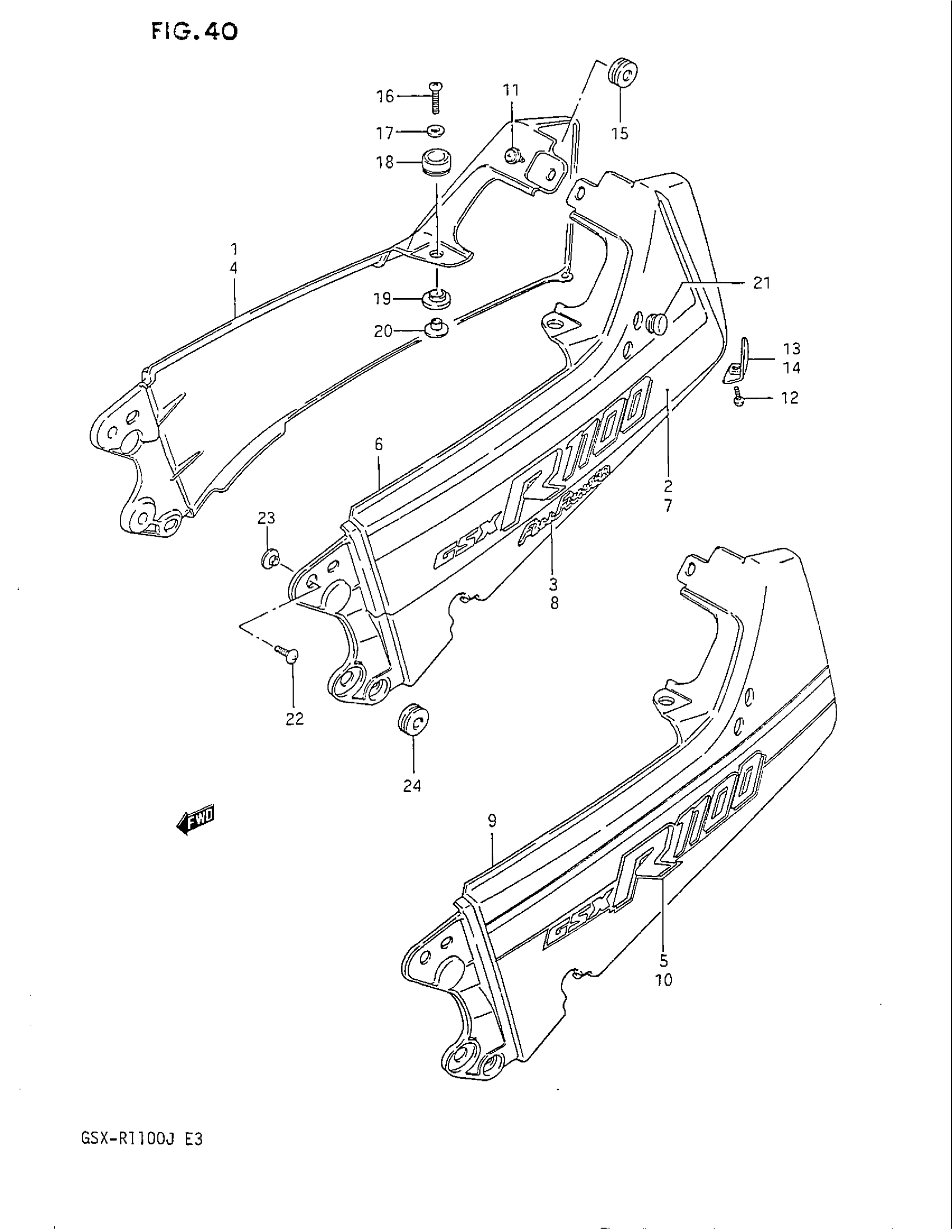

Suzuki GSX-R1100 (1988) SEAT TAIL COVER (MODEL G/H) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL G This part replaces 45510-27A40-8JV.

45511-27A25

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL G; Includes Item(s) 2 - 3 This part replaces 45510-27A40-8JW.

45511-27A25

Unavailable

2

TAPE SET, RH (BLUE) | MODEL G FOR 8JV

68167-06B01-28G

Unavailable

2

TAPE SET, RH (SILVER) | MODEL G FOR 8JW

68167-06B01-28H

Unavailable

3

EMBLEM, FULL FLOATER | MODEL G

68235-40A10-66P

Unavailable

4

NO DESCRIPTION AVAILABLE | MODEL H This part replaces 45510-06B10-9HD.

45511-27A25

Unavailable

4

NO DESCRIPTION AVAILABLE | MODEL H; Includes Item(s) 5 - 5 This part replaces 45510-06B10-9HJ.

45511-27A25

Unavailable

5

TAPE SET, RH | MODEL H FOR 9HD

68167-27A50-9HU

Unavailable

5

TAPE SET, RH | MODEL H FOR 9HJ

68167-27A50-9HV

Unavailable

6

NO DESCRIPTION AVAILABLE | MODEL G This part replaces 45590-27A40-8JV.

45591-27A05

Unavailable

6

NO DESCRIPTION AVAILABLE | MODEL G; Includes Item(s) 7 - 8 This part replaces 45590-27A40-8JW.

45591-27A05

Unavailable

7

TAPE SET, LH (BLUE) | MODEL G FOR 8JV

68168-06B01-28G

Unavailable

7

TAPE SET, LH (SILVER) | MODEL G FOR 8JW

68168-06B01-28H

Unavailable

8

EMBLEM, FULL FLOATER | MODEL G

68235-40A10-66P

Unavailable

9

NO DESCRIPTION AVAILABLE | MODEL H This part replaces 45590-06B10-9HD.

45591-27A05

Unavailable

9

NO DESCRIPTION AVAILABLE | MODEL H; Includes Item(s) 10 - 10 This part replaces 45590-06B10-9HJ.

45591-27A05

Unavailable

10

TAPE SET, LH | MODEL H FOR 9HD

68168-27A50-9HU

Unavailable

10

TAPE SET, LH | MODEL H FOR 9HJ

68168-27A50-9HV

Unavailable

11

CLIP This part replaces 09409-06307.

09409-06322-5PK

$3.10

12

.SCREW This part replaces 02142-05126.

02142-0512A

$1.49

13

PLATE, SEAT TAIL COVER RH

45530-27A00

Unavailable

14

PLATE, SEAT TAIL COVER LH

45530-27A10

Unavailable

15

CUSHION (8X22X7) This part replaces 09320-08013.

09320-08509

$1.93

16

SCREW This part replaces 02142-06305.

02142-0630B

$2.62

17

WASHER, CLUTCH RLSE NO.2 This part replaces 09160-06069.

09160-06052

$1.49

18

CUSHION, UPPER

45149-04A00

$3.59

19

CUSHION, LOWER

45326-04A00

$3.32

20

SPACER

45537-04A00

$1.92

21

CAP

45581-27A00

Unavailable

22

SCREW This part replaces 02142-06166.

02142-0616A

$1.49

23

WASHER This part replaces 09169-06031.

09169-06041

$2.20

24

CUSHION, FRONT

09320-08018

$3.04
