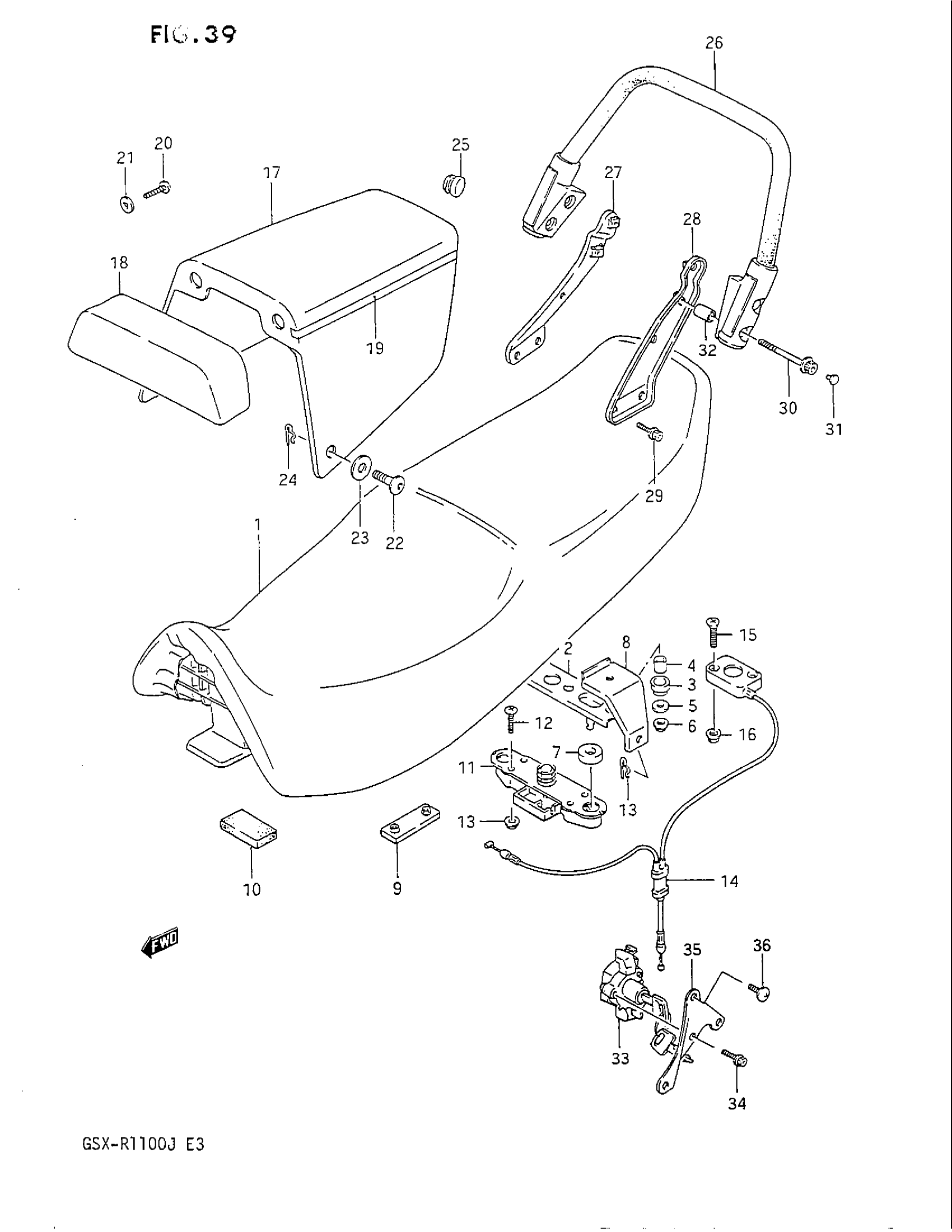

Suzuki GSX-R1100 (1988) SEAT (MODEL J) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | FOR 9HD This part replaces 45100-06B11-4VP.

45100-06B01-58R

Unavailable

1

NO DESCRIPTION AVAILABLE | FOR 9SR; Includes Item(s) 2 - 10 This part replaces 45100-06B11-5DK.

45100-06B01-58R

Unavailable

2

STRIKER, SEAT LOCK

45210-06B00

Unavailable

3

CUSHION This part replaces 45215-06B00.

45215-06B01

$3.47

4

SPACER

45216-06B00

$3.37

5

WASHER (6.5X20X1.6) This part replaces 09160-06020.

09160-06066

$1.89

6

NUT This part replaces 08316-16066.

08316-1006B

$2.50

7

CUSHION, BOSS

45213-31300

$2.81

8

BRACKET, SEAT SIDE

45230-06B00

Unavailable

9

CUSHION

09321-08009

$3.05

10

CUSHION

45255-27A00

Unavailable

11

BRACKET, SEAT SUPPORT FRONT

45220-13601

$80.52

12

SCREW, SEAT SUPPORT BRK This part replaces 02112-06305.

02112-0630A

$1.78

13

NUT This part replaces 08316-26065.

08316-2006A

$2.63

14

BRACKET, SEAT SUPPORT REAR

45220-06B00

Unavailable

15

SCREW This part replaces 02122-06255.

02122-0625A

$1.49

16

NUT This part replaces 08316-26065.

08316-2006A

$2.63

17

BOX SET, SEAT TAIL (BLACK/RED

45550-06870-9HD

Unavailable

17

BOX SET, SEAT TAIL | Includes Item(s) 18 - 25

45550-06870-9SR

Unavailable

18

BACKREST, SEAT (BLACK) | FOR 9HD This part replaces 46220-27A01-4VP.

46220-27A01-58R

Unavailable

18

BACKREST, SEAT (BLACK) | FOR 9SR This part replaces 46220-27A01-5DK.

46220-27A01-58R

Unavailable

19

TAPE SET, SEAT TAIL BOX | FOR 9HD

68650-06B10-13Z

Unavailable

19

TAPE SET, SEAT TAIL BOX | FOR 9SR

68650-06B10-22R

Unavailable

20

SCREW This part replaces 02142-06205.

02142-0620A

$1.49

21

WASHER (6.5X18X1.6) This part replaces 09160-06039.

09160-06109

$1.49

22

BOLT

45186-06B00

Unavailable

23

WASHER

09161-10010

Unavailable

24

CLIP

09385-06001

$3.10

25

CAP

45581-27A00

Unavailable

26

NO DESCRIPTION AVAILABLE This part replaces 46210-27A01.

46210-27X00-019

Unavailable

27

PLATE, RH

46240-27A00

Unavailable

28

PLATE, LH

46250-27A00

Unavailable

29

BOLT This part replaces 07120-06168.

07120-06167

$3.16

30

BOLT This part replaces 07120-08605.

07120-0860B

$4.41

31

CAP This part replaces 09250-06008.

09250-06016

$1.96

32

SPACER, FRONT (8.5X14X21.50) This part replaces 09180-08125.

09180-08205

$3.49

33

LOCK SET, SEAT This part replaces 95700-27A00-KEY.

95700-27820

Unavailable

34

BOLT, FRONT This part replaces 07120-06205.

07120-0620B

$3.04

35

BRACKET, SEAT LOCK

45285-27A00

Unavailable

36

SCREW This part replaces 02142-06125.

02142-0612A

$1.49
