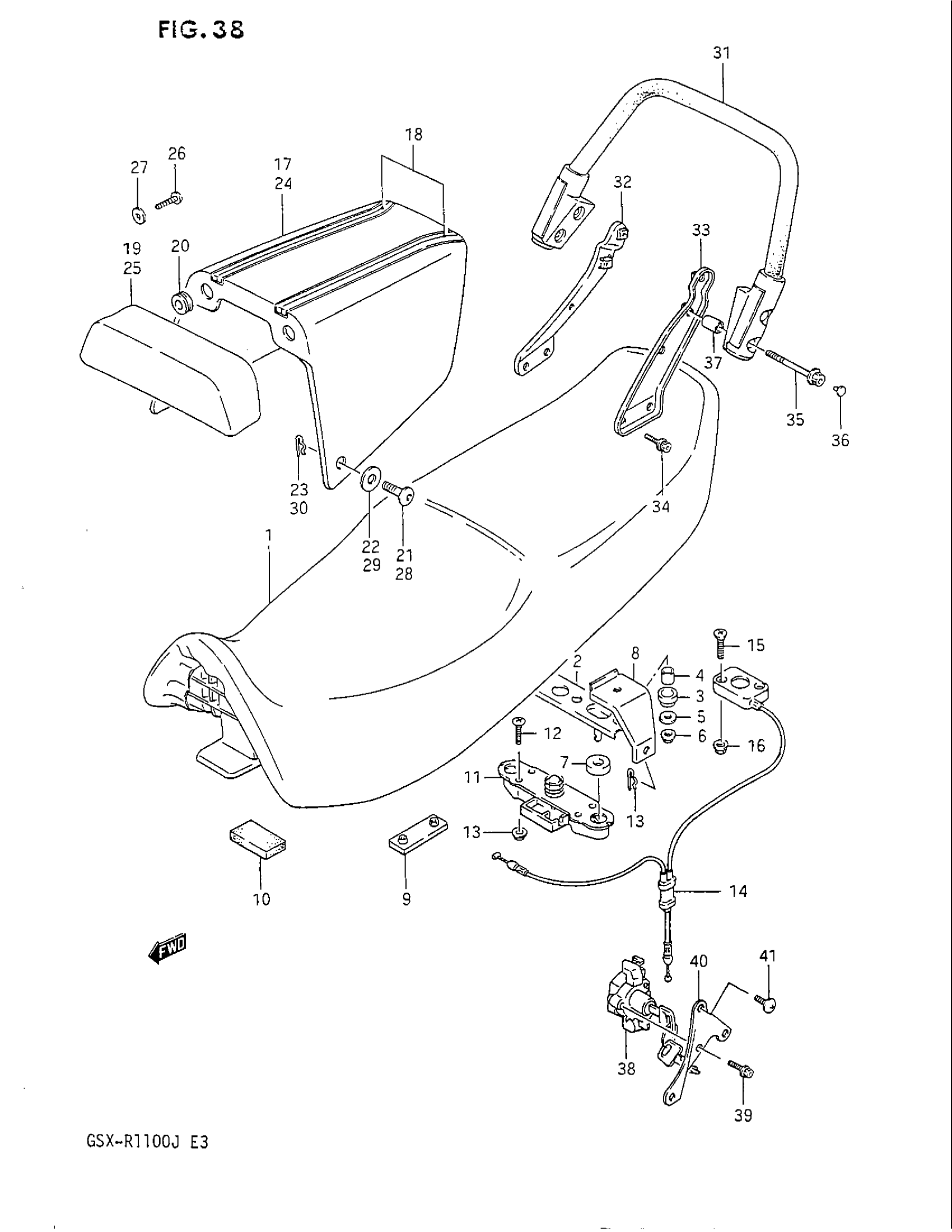

Suzuki GSX-R1100 (1988) SEAT (MODEL G/H) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL G FOR 8JV This part replaces 45100-06B10-58D.

45100-06B01-58R

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL G FOR 8JW This part replaces 45100-06B10-58E.

45100-06B01-58R

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL H FOR 9HD This part replaces 45100-06B10-58R.

45100-06B01-58R

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL H FOR 9HJ; Includes Item(s) 2 - 10 This part replaces 45100-06B10-49T.

45100-06B01-58R

Unavailable

2

STRIKER, SEAT LOCK

45210-06B00

Unavailable

3

CUSHION This part replaces 45215-06B00.

45215-06B01

$3.47

4

SPACER

45216-06B00

$3.37

5

WASHER (6.5X20X1.6) This part replaces 09160-06020.

09160-06066

$1.89

6

NUT This part replaces 08316-16066.

08316-1006B

$2.50

7

CUSHION, BOSS

45213-31300

$2.81

8

BRACKET, SEAT SIDE

45230-06B00

Unavailable

9

CUSHION

09321-08009

$3.05

10

CUSHION

45255-27A00

Unavailable

11

BRACKET, SEAT SUPPORT FRONT

45220-13601

$80.52

12

SCREW, SEAT SUPPORT BRK This part replaces 02112-06305.

02112-0630A

$1.78

13

NUT This part replaces 08316-26065.

08316-2006A

$2.63

14

BRACKET, SEAT SUPPORT REAR

45220-06B00

Unavailable

15

SCREW This part replaces 02122-06255.

02122-0625A

$1.49

16

NUT This part replaces 08316-26065.

08316-2006A

$2.63

17

NO DESCRIPTION AVAILABLE | MODEL G FOR 58D This part replaces 45550-06850-8JV.

45550-06851-8JV

Unavailable

17

NO DESCRIPTION AVAILABLE | MODEL G FOR 58E; Includes Item(s) 18 - 23 This part replaces 45550-06850-8JW.

45550-06851-8JW

Unavailable

18

TAPE SET, TAIL BOX | MODEL G FOR 8JV

68650-06B00-8KA

Unavailable

18

TAPE SET, TAIL BOX | MODEL G FOR 8JW

68650-06B00-8KB

Unavailable

19

BACKREST, SEAT (BLACK) | MODEL G FOR 8JV This part replaces 46220-27A00-58D.

46220-27A01-58R

Unavailable

19

BACKREST, SEAT (BLACK) | MODEL G FOR 8JW This part replaces 46220-27A00-58E.

46220-27A01-58R

Unavailable

20

CUSHION | MODEL G

09320-12031

$2.34

21

BOLT | MODEL G

45186-06B00

Unavailable

22

WASHER | MODEL G

09160-10079

$3.93

23

CLIP | MODEL G

09385-06001

$3.10

24

NO DESCRIPTION AVAILABLE | MODEL H FOR 58R This part replaces 45550-06862-13Z.

45550-06881

Unavailable

24

NO DESCRIPTION AVAILABLE | MODEL H FOR 49T; Includes Item(s) 25 - 30 This part replaces 45550-06862-34R.

45550-06881

Unavailable

25

BACKREST, SEAT (BLACK) | MODEL H FOR 13Z

46220-27A01-58R

Unavailable

25

BACKREST, SEAT (BLACK) | MODEL H FOR 34R This part replaces 46220-27A01-49T.

46220-27A01-58R

Unavailable

26

SCREW | MODEL H This part replaces 02142-06205.

02142-0620A

$1.49

27

WASHER (6.5X18X1.6) | MODEL H This part replaces 09160-06039.

09160-06109

$1.49

28

BOLT | MODEL H

45186-06B00

Unavailable

29

WASHER | MODEL H

09161-10010

Unavailable

30

CLIP | MODEL H

09385-06001

$3.10

31

NO DESCRIPTION AVAILABLE This part replaces 46210-27A01.

46210-27X00-019

Unavailable

32

PLATE, RH

46240-27A00

Unavailable

33

PLATE, LH

46250-27A00

Unavailable

34

BOLT This part replaces 07120-06168.

07120-06167

$3.16

35

BOLT This part replaces 09106-08061.

07120-0860B

$4.41

36

CAP This part replaces 09250-06008.

09250-06016

$1.96

37

SPACER, FRONT (8.5X14X21.50) This part replaces 09180-08125.

09180-08205

$3.49

38

LOCK SET, SEAT This part replaces 95700-27A00-KEY.

95700-27820

Unavailable

39

BOLT, FRONT This part replaces 07120-06205.

07120-0620B

$3.04

40

BRACKET, SEAT LOCK

45285-27A00

Unavailable

41

SCREW This part replaces 02142-06125.

02142-0612A

$1.49
