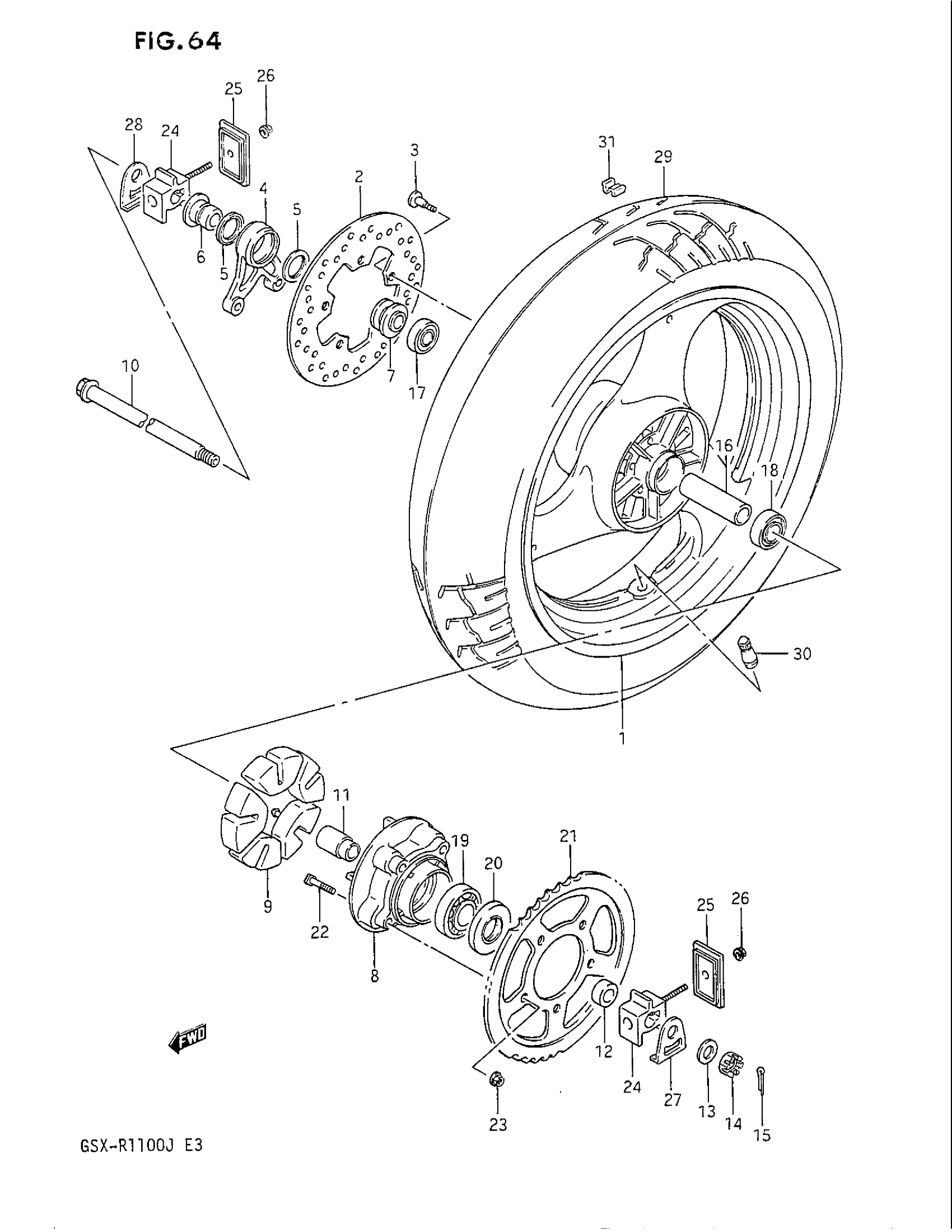

Suzuki GSX-R1100 (1988) REAR WHEEL (MODEL J) Diagram

#

Description
Price

1

WHEEL, REAR (18XMT4.50) WHITE

64111-06B10-28W

Unavailable

2

DISC, REAR BRAKE

69211-27A00

Unavailable

3

BOLT (8X33) This part replaces 09106-08062.

09106-08148

$4.80

4

BRACKET, REAR CALIPERS | Includes Item(s) 5

69720-27A01

Unavailable

5

OIL SEAL

09285-28002

$6.80

6

SPACER

69412-27A00

Unavailable

7

SPACER, RH

64740-48B00

Unavailable

8

DRUM, REAR SPROCKET This part replaces 64611-17C00.

64611-17C01

Unavailable

9

ABSORBER,RR HUB SHOCK

64651-27A01

$9.78

10

AXLE, REAR

64711-06B00

Unavailable

11

RETAINER,RR HUB BEARING

64733-27A00

$26.93

12

SPACER, LH

64751-27A00

Unavailable

13

WASHER This part replaces 08322-11188.

08322-0118B

$2.70

14

NUT

09141-18007

Unavailable

15

PIN, COTTER This part replaces 04111-40408.

04111-4040A

$1.49

16

SPACER, BEARING

09180-20104

Unavailable

17

BEARING This part replaces 08123-62047.

08123-6204B

$17.41

18

BEARING, LH

09262-20042

$23.28

19

BEARING

09262-25073

$25.92

20

SEAL,OIL (35X62X8)

09285-35001

$10.19

21

SPROCKET, REAR (NT:46)

64511-06B10

Unavailable

22

BOLT

09105-10007

$4.40

23

NUT

08319-31107

$2.73

24

ADJUSTER, CHAIN This part replaces 61410-06B00.

61410-27A10

Unavailable

25

PLATE

61421-06B00

Unavailable

26

NUT

08319-31087

$2.32

27

WASHER,CHAIN,AD This part replaces 61445-06B00.

64712-27A11

Unavailable

28

WASHER,CHAIN AD This part replaces 61455-06B00.

64713-27A11

Unavailable

29

TIRE, T/L REAR (160/60 VR18) | DUNLOP

65100-06B30

Unavailable

30

VALVE ASSY, WHEEL RIM This part replaces 43130-75150.

43130-78030

$9.25

31

BALANCER (10G)

55411-00A00

$1.49

31

BALANCER, WHEEL NO.2 This part replaces 55412-00A00.

55412-17G00

$7.05

31

BALANCER (30G) This part replaces 55413-00A00.

55413-00A01

Unavailable
