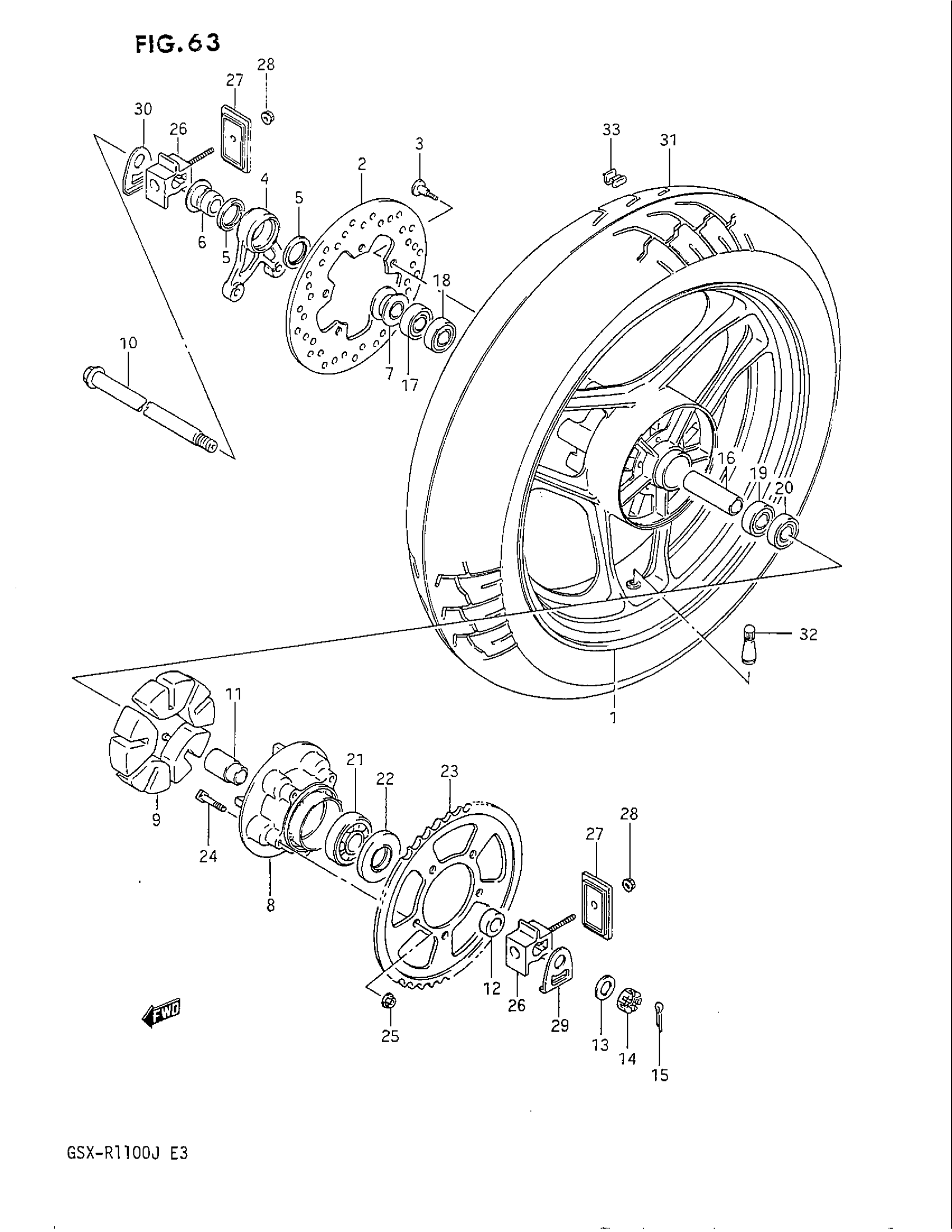

Suzuki GSX-R1100 (1988) REAR WHEEL (MODEL G/H) Diagram

#

Description
Price

1

WHEEL, REAR (18XMT4.00) BLACK

64111-06B00-291

Unavailable

2

DISC, REAR BRAKE

69211-27A00

Unavailable

3

BOLT (8X33) This part replaces 09106-08062.

09106-08148

$4.80

4

BRACKET, REAR CALIPERS | Includes Item(s) 5

69720-27A01

Unavailable

5

OIL SEAL

09285-28002

$6.80

6

SPACER

69412-27A00

Unavailable

7

SPACER, RH

64740-27A01

Unavailable

8

NO DESCRIPTION AVAILABLE This part replaces 64611-27A02.

64611-27A03

Unavailable

9

ABSORBER,RR HUB SHOCK

64651-27A01

$9.78

10

AXLE, REAR

64711-06B00

Unavailable

11

RETAINER,RR HUB BEARING

64733-27A00

$26.93

12

SPACER, LH

64751-27A00

Unavailable

13

WASHER This part replaces 08322-11188.

08322-0118B

$2.70

14

NUT

09141-18007

Unavailable

15

PIN, COTTER This part replaces 04111-40408.

04111-4040A

$1.49

16

SPACER, BEARING

64731-06B00

Unavailable

17

BEARING, RH This part replaces 08123-60047.

08133-60047

$25.82

18

BEARING, INNER RH

08113-60047

$23.43

19

BEARING, LH

08143-60047

$25.35

20

BEARING, OUTER LH

08113-60047

$23.43

21

BEARING

09262-25073

$25.92

22

SEAL,OIL (35X62X8)

09285-35001

$10.19

23

SPROCKET, REAR (NT:47)

64511-06B01

Unavailable

24

BOLT

09105-10007

$4.40

25

NUT

08319-31107

$2.73

26

ADJUSTER, CHAIN

61410-27A10

Unavailable

27

PLATE

61421-06B00

Unavailable

28

NUT

08319-31087

$2.32

29

WASHER,CHAIN,AD This part replaces 61445-06B00.

64712-27A11

Unavailable

30

WASHER,CHAIN AD This part replaces 61455-06B00.

64713-27A11

Unavailable

31

TIRE, T/L REAR (150/70 VR18) | DUNLOP

65100-06B20

Unavailable

32

VALVE ASSY, WHEEL RIM This part replaces 43130-75150.

43130-78030

$9.25

33

BALANCER (10G)

55411-00A00

$1.49

33

BALANCER, WHEEL NO.2 This part replaces 55412-00A00.

55412-17G00

$7.05

33

BALANCER (30G) This part replaces 55413-00A00.

55413-00A01

Unavailable
