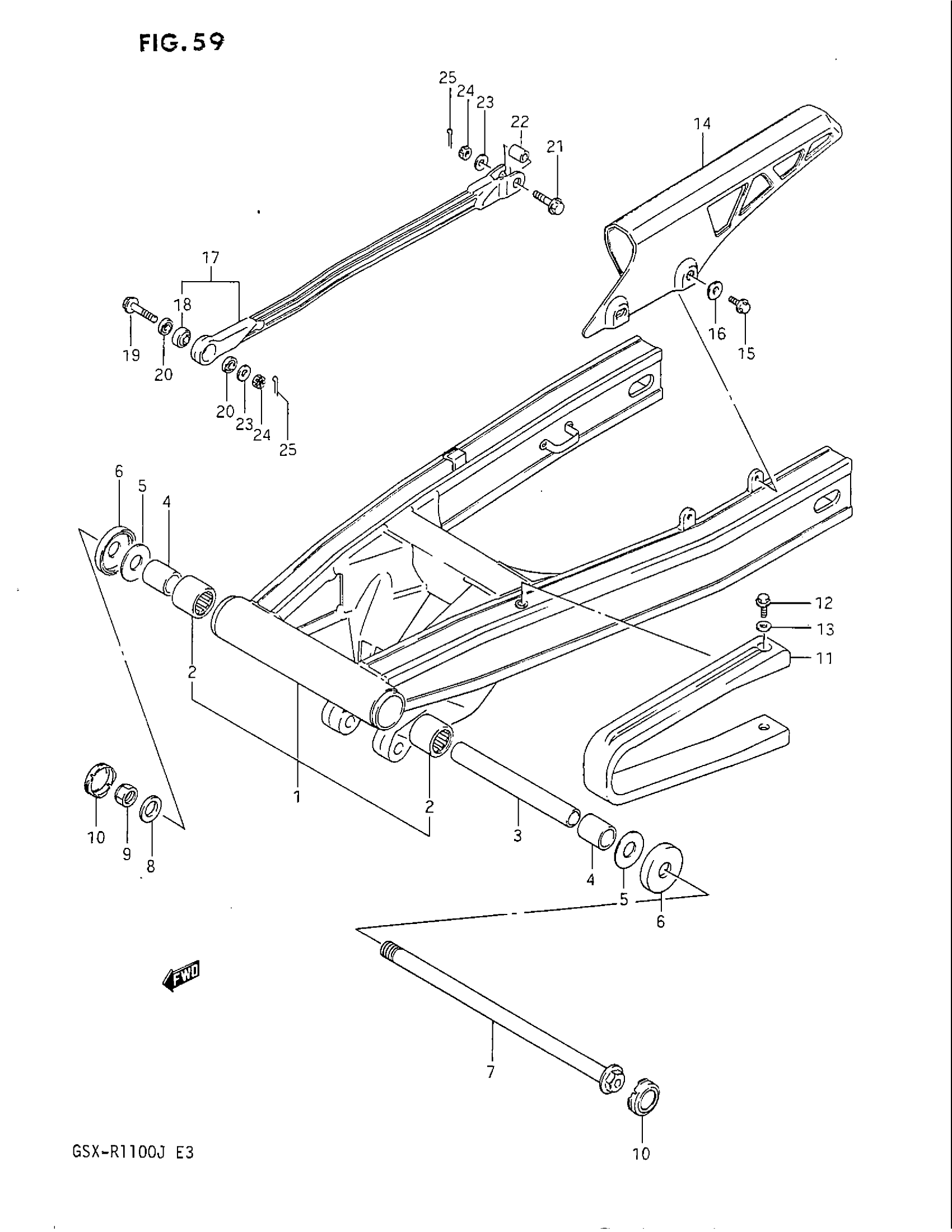

Suzuki GSX-R1100 (1988) REAR SWINGING ARM Diagram

#

Description
Price

1

SWINGING ARM ASSY, REAR | MODEL G/HTO 61000-06B01 This part replaces 61000-06B00.

61000-06B01

Unavailable

1

SWINGING ARM ASSY, REAR | MODEL J; Includes Item(s) 2

61000-06B01

Unavailable

2

BEARING

09263-25024

$25.92

3

NO DESCRIPTION AVAILABLE This part replaces 61282-06B00.

61282-06B0V

Unavailable

4

SPACER, PIVOT SHAFT

61251-49000

$26.43

5

WASHER

08211-16381

$2.42

6

COVER,RR SWINGI This part replaces 61262-49201.

61262-49202

$10.33

7

SHAFT, SWINGING ARM PIVOT

61211-06B00

Unavailable

8

WASHER

09160-14015

Unavailable

9

NUT This part replaces 09159-14013.

09159-14019

$11.61

10

CAP, SWINGING ARM PIVOT

61222-43400

$5.24

11

BUFFER, CHAIN TOUCH DEFENSE

61273-06B00

Unavailable

12

BOLT This part replaces 01517-06208.

01550-06207

$2.30

13

WASHER This part replaces 09169-06032.

09169-06071

$2.50

14

CASE, CHAIN

61310-27A01

$80.83

15

BOLT This part replaces 01517-06105.

01550-0610A

$1.97

16

WASHER

09169-06026

$2.20

17

NO DESCRIPTION AVAILABLE | Includes Item(s) 18 This part replaces 64300-06840.

64300-06841

Unavailable

18

BEARING This part replaces 64352-40411.

64352-40401

Unavailable

19

BOLT, REAR This part replaces 09103-08161.

09103-08160

Unavailable

20

DUST SEAL TORQU This part replaces 64339-40410.

64339-40411

$7.03

21

BOLT, REAR This part replaces 09103-08161.

09103-08160

Unavailable

22

SPACER, TORQUE LINK

64336-20A00

Unavailable

23

WASHER This part replaces 08322-11088.

08322-01087

$2.13

24

NUT This part replaces 08314-41088.

08314-4008B

$3.03

25

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49
