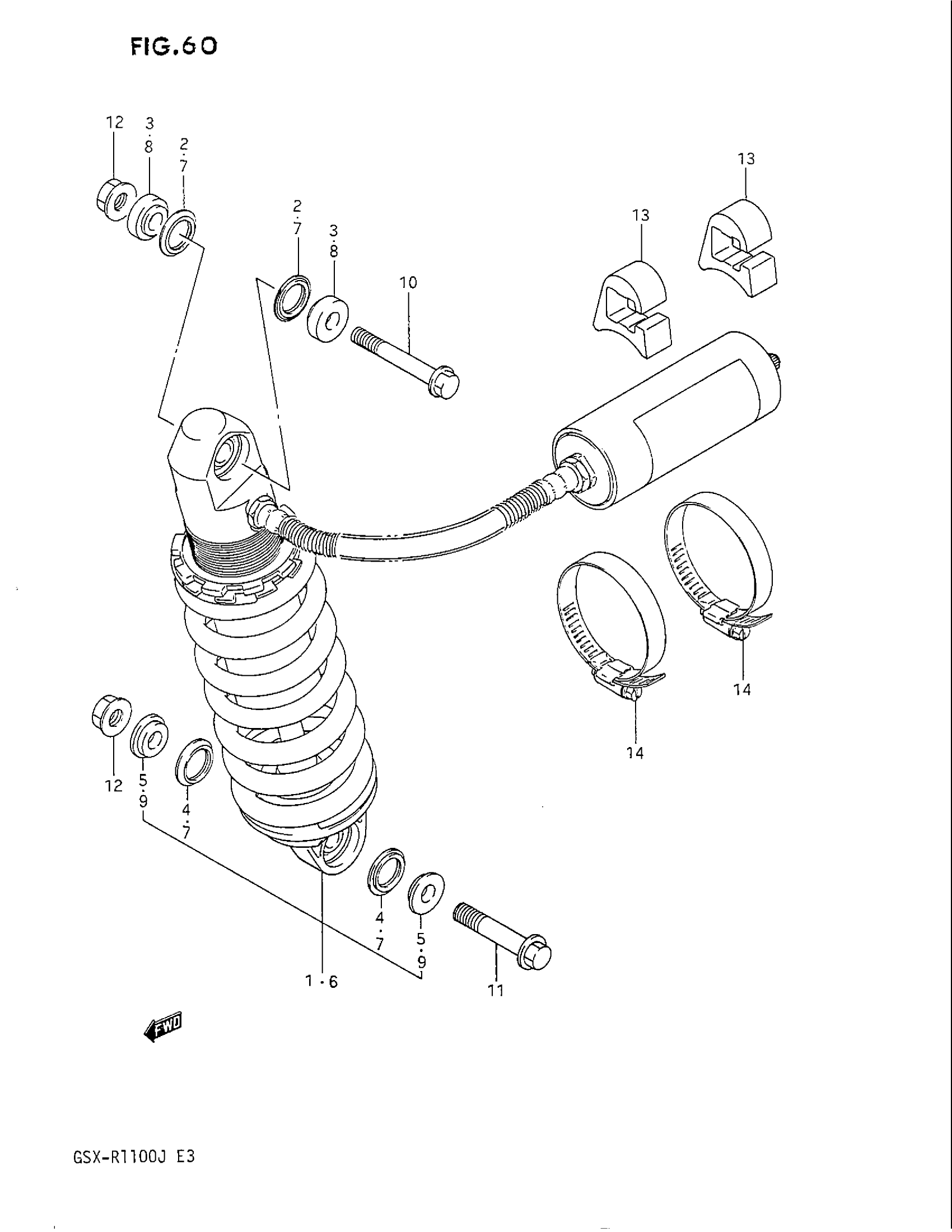

Suzuki GSX-R1100 (1988) REAR SHOCK ABSORBER Diagram

#

Description
Price

1

ABSORBER ASSY, REAR SHOCK | MODEL G; Includes Item(s) 2 - 5

62100-06B10

Unavailable

2

DUST SEAL, UPPER

62226-14520

Unavailable

3

COLLAR

62684-14520

Unavailable

4

O RING (D:2.4,ID:17.8) This part replaces 51181-43010.

09280-18004

$5.18

5

COLLAR This part replaces 62177-14410.

62177-38200

Unavailable

6

ABSORBER ASSY, REAR SHOCK | MODEL H This part replaces 62100-06B30.

62100-06B50

Unavailable

6

ABSORBER ASSY, REAR SHOCK | MODEL J; Includes Item(s) 7 - 9

62100-06B50

Unavailable

7

DUST SEAL

62226-27A20

$8.56

8

COLLAR, UPPER

62177-27A20

Unavailable

9

COLLAR

62684-27A50

Unavailable

10

BOLT, UPPER

62311-08300

Unavailable

11

BOLT, LOWER

09103-10126

$4.50

12

NUT

08319-31107

$2.73

13

CUSHION,RESERVO This part replaces 62331-06B00.

62331-06B01

Unavailable

14

CLAMP This part replaces 09402-70501.

09402-70503

$18.42
