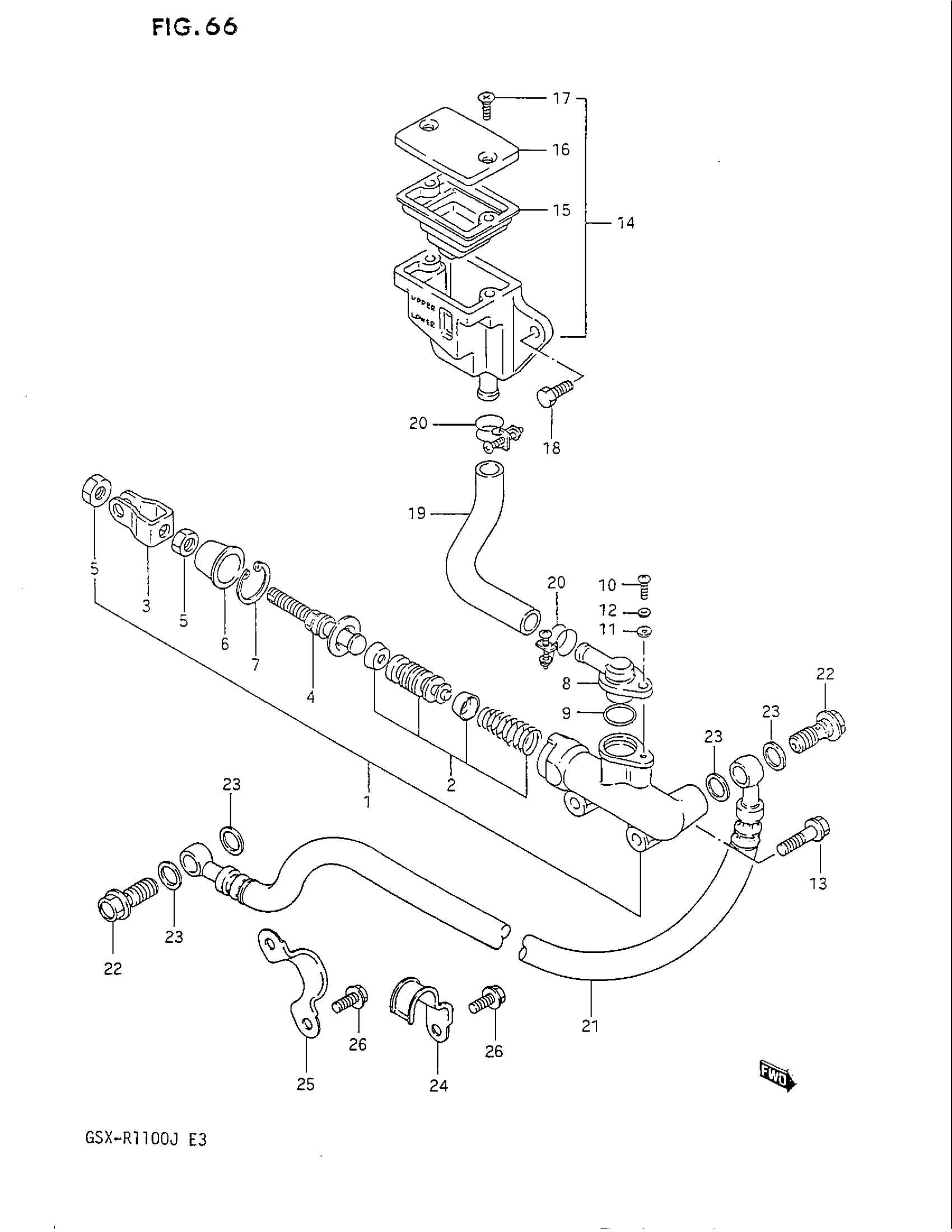

Suzuki GSX-R1100 (1988) REAR MASTER CYLINDER Diagram

#

Description
Price

1

CYLINDER ASSY, REAR MASTER | Includes Item(s) 2 - 12 This part replaces 69600-27A00.

69600-27A30

Unavailable

2

PISTON & CUP SET This part replaces 69600-16820.

69600-04810

$49.42

3

YOKE

69692-19A00

$16.87

4

ROD, PUSH This part replaces 69670-27A00.

69670-27A30

$26.23

5

NUT

69693-05A00

$1.96

6

.BOOT

69691-00A00

$5.30

7

CIRCLIP

51162-70040

$3.25

8

CONNECTOR

69672-05A00

$5.56

9

O RING

69686-34200

$2.93

10

SCREW This part replaces 02112-04124.

02112-0412A

$1.49

11

WASHER This part replaces 08322-21045.

08322-0104A

$1.91

12

LOCK WASHER This part replaces 08321-21045.

08321-0104A

$1.84

13

BOLT

09106-06056

Unavailable

14

TANK ASSY,RR RESERVOIR | Includes Item(s) 15 - 17 This part replaces 69740-27A31.

69740-01D02

$70.49

15

DIAPHRAGM

59667-04700

$9.78

16

CAP This part replaces 59669-04710.

69669-24A01

$15.10

17

SCREW

69689-04A00

$1.78

18

BOLT This part replaces 01107-06127.

01500-06127

$1.97

19

HOSE, RESERVOIR

69731-27A00

Unavailable

20

CLAMP This part replaces 09400-16302.

09400-16304

$3.10

21

HOSE, REAR BRAKE This part replaces 69480-06B00.

69480-27A11

Unavailable

22

BOLT

09360-10017

$3.42

23

WASHER (10X15X1.5)

09161-10009

$1.84

24

CLAMP | MODEL G/H

61196-06B01

Unavailable

25

CLAMP | MODEL G

61198-06B00

Unavailable

26

BOLT | MODEL G/H This part replaces 01517-05128.

01550-0512B

$2.87
