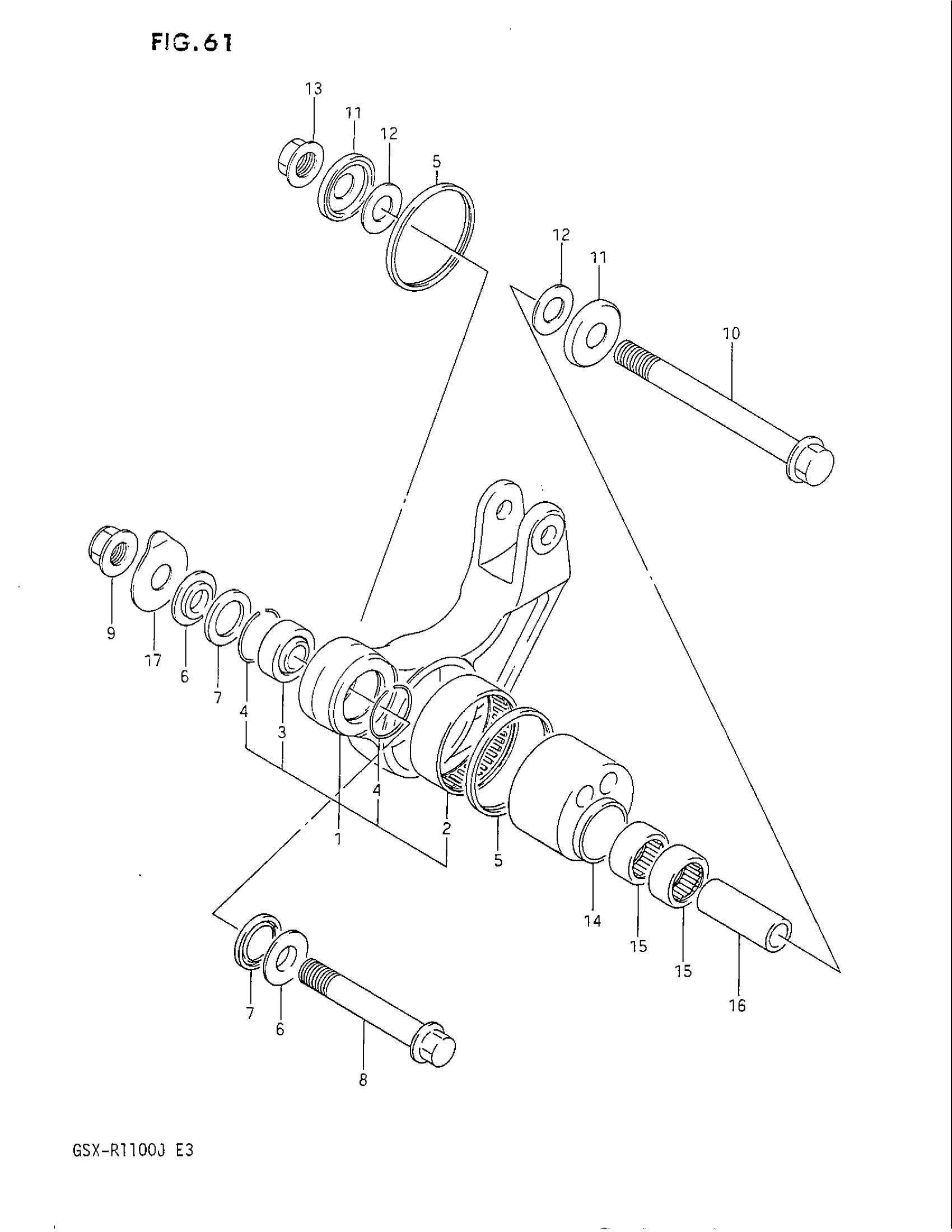

Suzuki GSX-R1100 (1988) REAR CUSHION LEVER Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 4 This part replaces 62600-06841.

62600-06842

Unavailable

2

BEARING

09263-45003

Unavailable

3

BEARING, FRONT

09269-12004

Unavailable

4

RING, STOPPER REAR This part replaces 62657-05A00.

62277-27C20

$3.92

5

DUST SEAL, CUSHION LEVER

62624-40A00

Unavailable

6

SPACER, FRONT

62316-05A01

$10.54

7

DUST SEAL

62647-05A00

$3.30

8

BOLT, CUSHION LEVER

62668-27A00

$12.28

9

NUT This part replaces 08319-31128.

08319-3112A

$3.76

10

SHAFT, REAR CUSHION

09103-12015

Unavailable

11

COVER SWGARM PIVOT This part replaces 61262-40200.

61262-03B01

$11.18

12

WASHER

08211-12281

$2.53

13

NUT This part replaces 08319-31128.

08319-3112A

$3.76

14

SPACER, ECCENTRIC

62623-40A01

Unavailable

15

BEARING

09263-17032

$27.45

16

SPACER, CUSHION LEVER

62646-40A01

Unavailable

17

SHIM

62667-27A00

Unavailable
