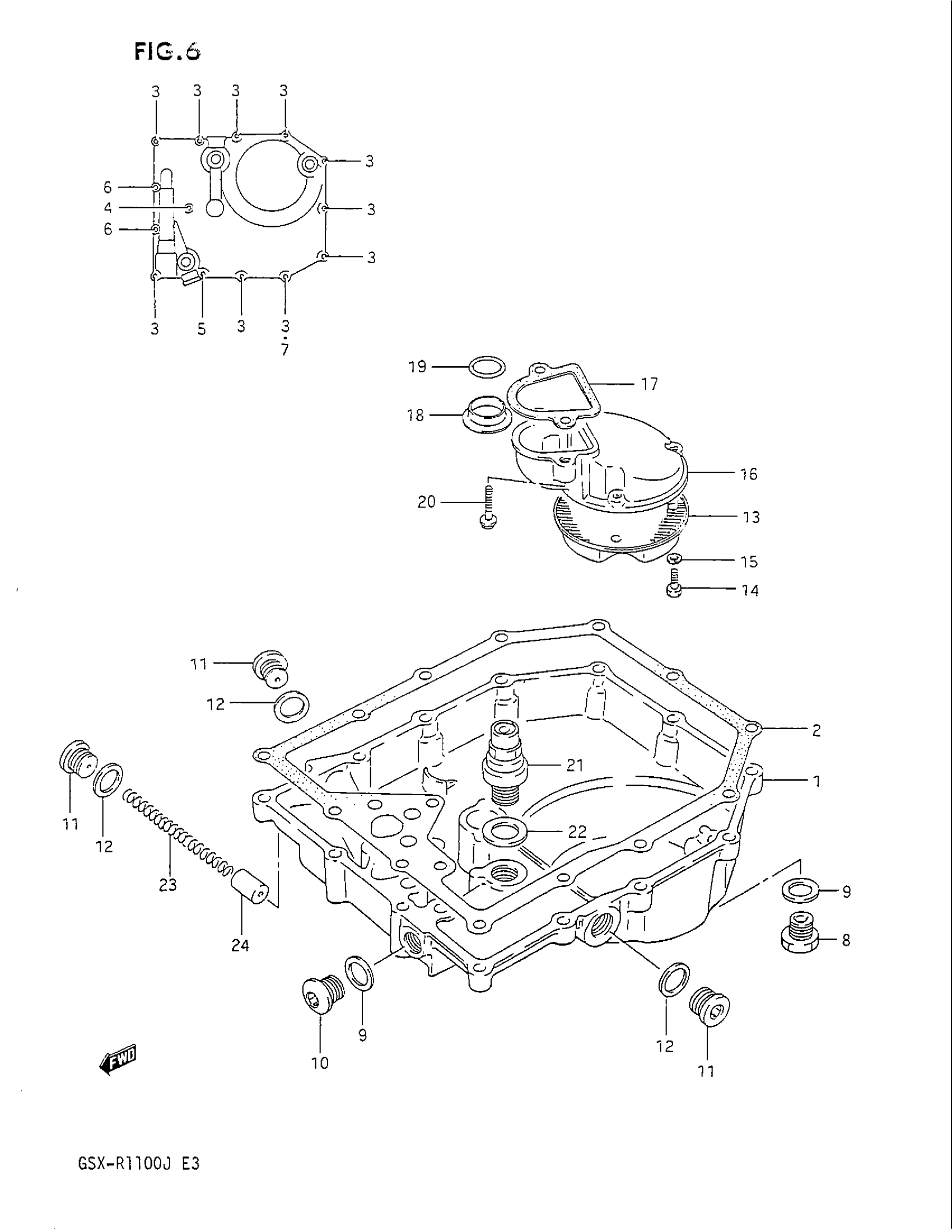

Suzuki GSX-R1100 (1988) OIL PAN Diagram

#

Description
Price

1

PAN, OIL This part replaces 11511-27A01.

11511-17D01

Unavailable

2

O RING, OIL PAN This part replaces 11489-27A00.

11489-27A21

$16.33

3

BOLT This part replaces 07110-06255.

07130-0625B

$3.04

4

BOLT This part replaces 07110-06355.

07130-0635B

$3.37

5

BOLT, STATOR This part replaces 07110-06405.

07130-0640B

$3.38

6

BOLT This part replaces 07110-06455.

07130-0645B

$4.10

7

GASKET

09168-06024

$2.20

8

PLUG (MAGNETO) This part replaces 09247-14001.

09247-14002

$5.24

9

GASKET

09168-14004

$1.83

10

PLUG, CYLINDER HEAD This part replaces 09248-14004.

09248-14010

$5.50

11

PLUG, OIL DRAIN This part replaces 09248-16010.

09248-16012

$4.64

12

GASKET

09168-16002

$1.91

13

STRAINER, ENGINE OIL This part replaces 16520-06B00.

16520-06B01

Unavailable

14

BOLT This part replaces 01107-06127.

01500-06127

$1.97

15

LOCK WASHER This part replaces 08321-21067.

08321-01067

$2.13

16

PROTECTOR, STRAINER

16525-06B00

$28.57

17

GASKET, OIL STR PROTECTOR This part replaces 16528-27A02.

16528-27A21

$5.78

18

GASKET, OIL OUTLET

16529-27A01

$2.15

19

O RING

09280-18009

$5.83

20

BOLT This part replaces 01517-06258.

01550-06257

$2.30

21

VALVE ASSY, OIL RELIEF (6K) This part replaces 16440-27A00.

16440-27A01

$66.40

22

WASHER

09168-16002

$1.91

23

SPRING

09440-09027

Unavailable

24

PLUNGER, OIL CONTROL

16442-34301

Unavailable
