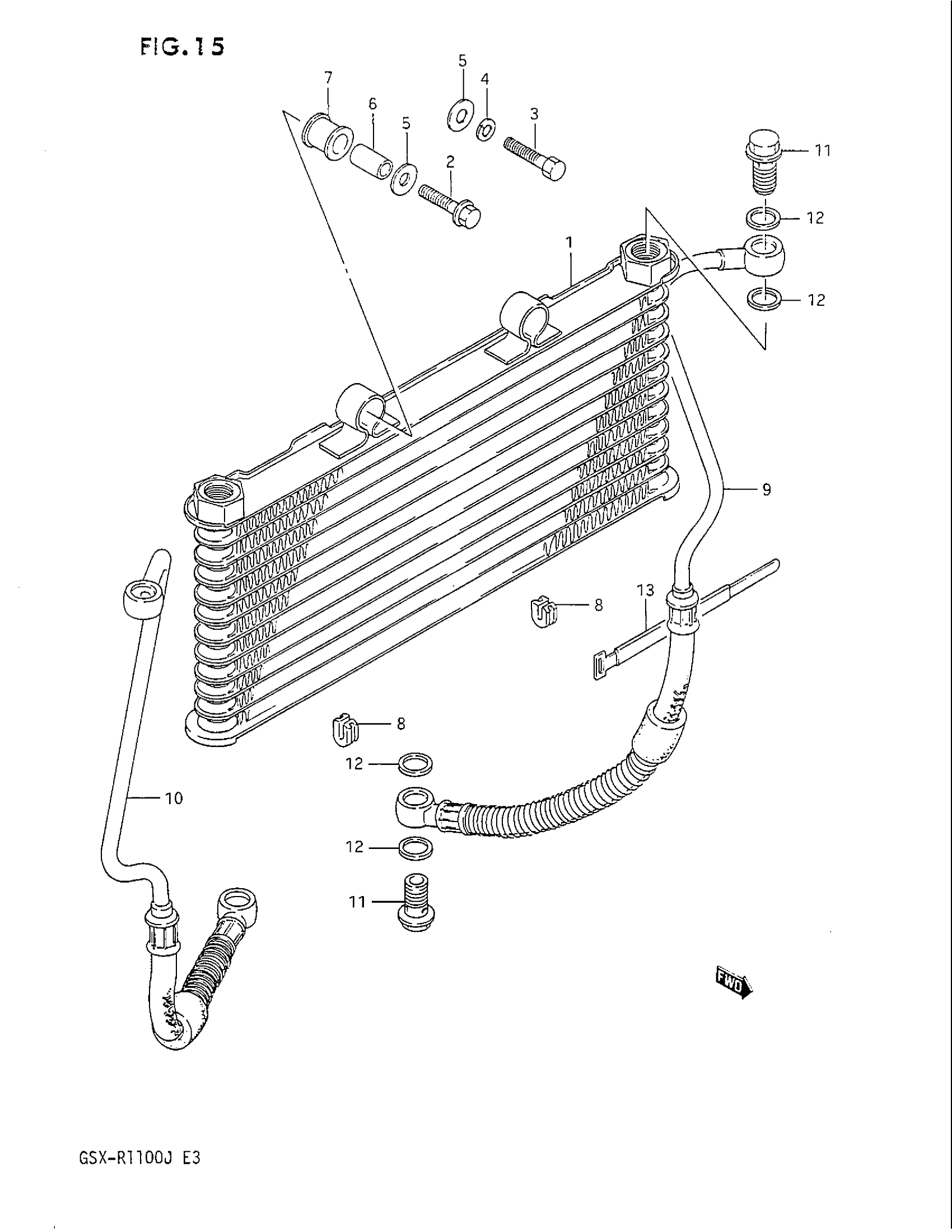

Suzuki GSX-R1100 (1988) OIL COOLER Diagram

#

Description
Price

1

COOLER ASSY, OIL | MODEL G/H

16600-27A01

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL J This part replaces 16600-06B10.

16600-06B11

Unavailable

2

BOLT | MODEL G/H This part replaces 01517-08405.

01550-08407

$3.42

3

BOLT | MODEL J This part replaces 01107-08405.

01500-0840A

$2.60

4

LOCK WASHER | MODEL J This part replaces 08321-21084.

08321-0108A

$1.84

5

WASHER This part replaces 09160-08047.

09160-08130

$2.03

6

SPACER This part replaces 09180-08124.

09180-08304

$6.80

7

CUSHION, NO.1

16629-27A01

$4.52

8

CUSHION, NO.2

16628-27A00

$2.92

9

HOSE, OIL COOLER LH

16460-06B00

Unavailable

10

HOSE, OIL COOLER RH

16470-06B00

Unavailable

11

BOLT, UNION

09360-16002

$14.34

12

GASKET (16X22X2)

09168-16003

$1.91

13

CLAMP This part replaces 09407-18301.

09407-18302

$2.28
