1988 Suzuki GSX-R1100 Muffler Diagram

← All diagrams

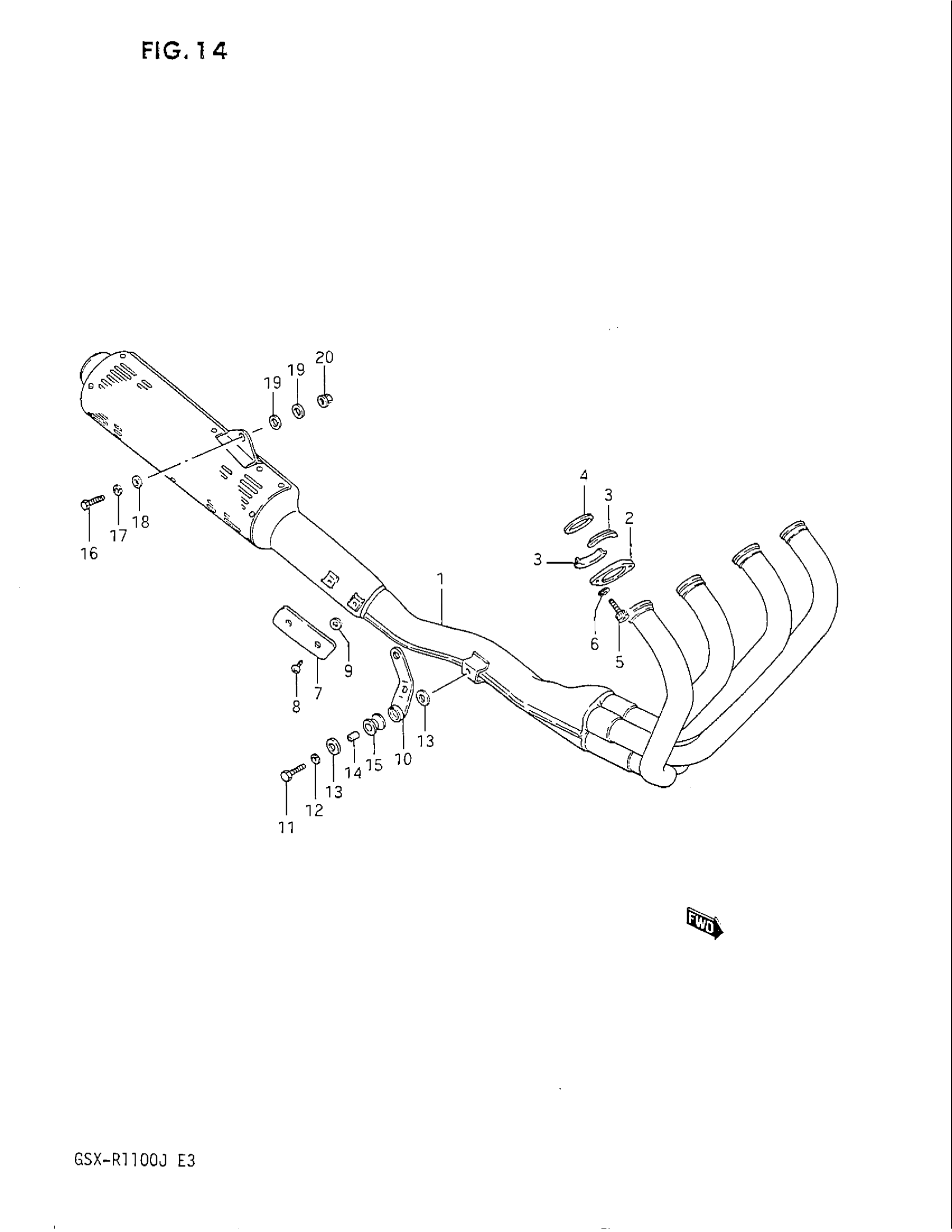

Find the part on the Muffler diagram for your 1988 Suzuki GSX-R1100, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1988 Suzuki GSX-R1100 Muffler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE This part replaces 14305-06B10-H01.

14305-06B61

1
Out of stock

2

CLAMP, EXHAUST PIPE

14182-27A00

4
Out of stock

3

PLATE, EXHAUST PIPE

14155-27A00

8

$3.65

In stock

4

.GASKET,EXHAUST This part replaces 14181-05020.

14181-18C00

4
Out of stock

5

8

$3.26

In stock

6

WASHER

09164-08015

8
Out of stock

7

COVER, MUFFLER FRONT

14782-06B00

1
Out of stock

9

2

$2.92

In stock

10

DAMPER, MUFFLER SUPPORT

14770-06B01

1
Out of stock

11

1

$4.90

In stock

12

1

$1.58

In stock

13

WASHER, EXHAUST SUPPORT This part replaces 09160-08057.

09160-08135

2
Out of stock

14

SPACER This part replaces 09180-08102.

09180-08194

1
Out of stock

15

CUSHION, EXHAUST SUPPORT This part replaces 09320-12026.

09320-12043

1
Out of stock

16

1

$4.18

In stock

17

1

$2.02

In stock

18

1

$1.97

In stock

20

NUT, WHEEL SET This part replaces 08316-16108.

08316-10107

1
Out of stock
