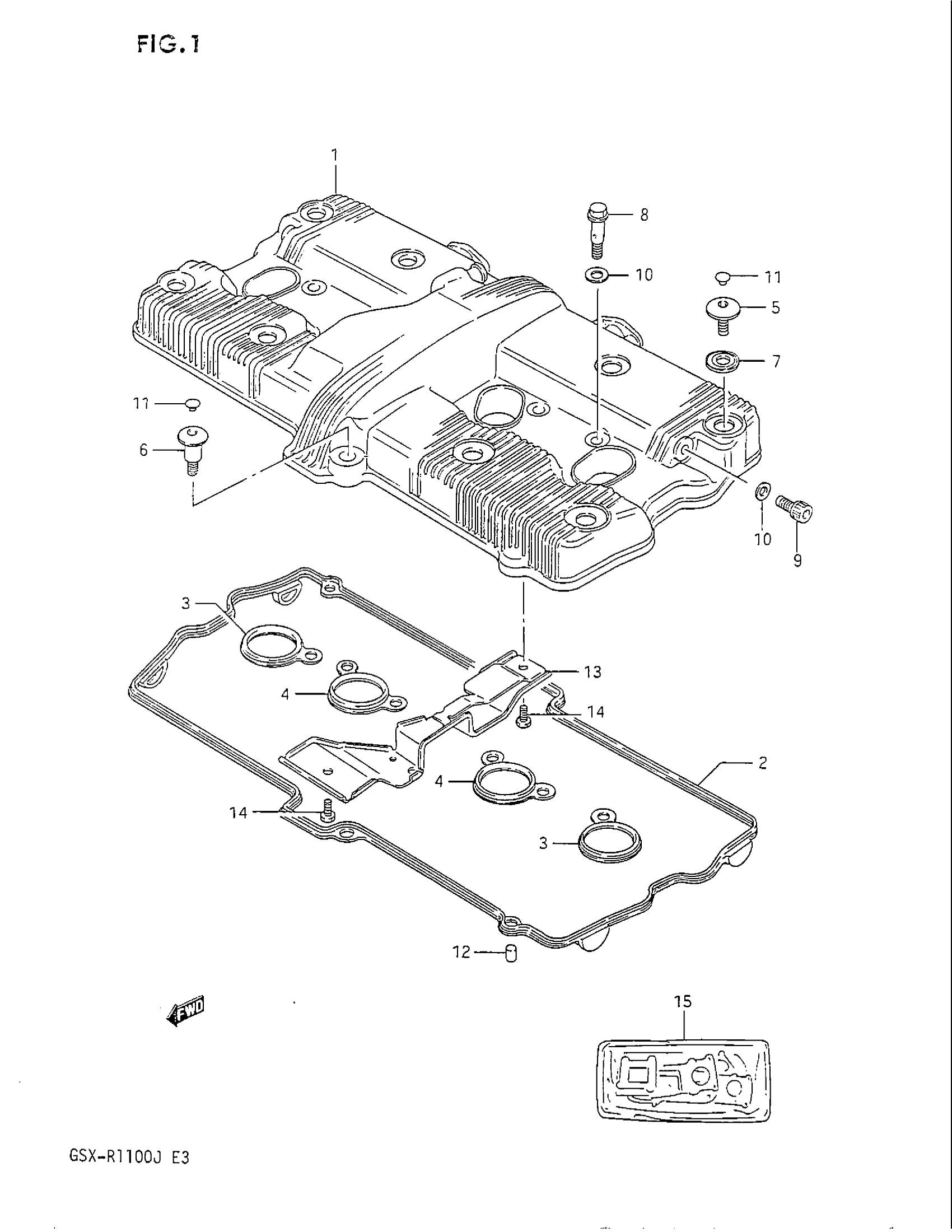

Suzuki GSX-R1100 (1988) CYLINDER HEAD COVER Diagram

#

Description
Price

1

COVER, CYLINDER HEAD

11170-06B05

Unavailable

2

GASKET,CYLINDER This part replaces 11173-06B01.

11173-06B03

$25.85

3

GASKET,HEAD COV This part replaces 11178-27A00.

11178-27A02

$6.50

4

GASKET,HEAD COV This part replaces 11179-27A01.

11179-27A03

$6.91

5

BOLT (7X17.5) This part replaces 09106-07009.

09106-07021

$4.19

6

BOLT (L:19)

09106-07010

$4.38

7

WASHER This part replaces 09161-11006.

09161-11008

$4.17

8

BOLT AND GASKET This part replaces 09360-08009.

11180-27820

Unavailable

9

BOLT This part replaces 07110-08125.

07130-0812A

$4.03

10

GASKET (8.2X14X1) This part replaces 09168-08008.

09168-08016

$1.70

11

CAP This part replaces 09250-06008.

09250-06016

$1.94

12

PIN

04221-08129

$2.07

13

COVER, BREATHER

11180-06B00

Unavailable

14

BOLT, RUBBER STOP This part replaces 01107-05127.

01500-05127

$2.65

15

GASKET SET | OPT MODEL G/H This part replaces 11400-06850.

11400-06877

Unavailable

15

GASKET SET | OPT MODEL J This part replaces 11400-06855.

11400-06877

Unavailable
