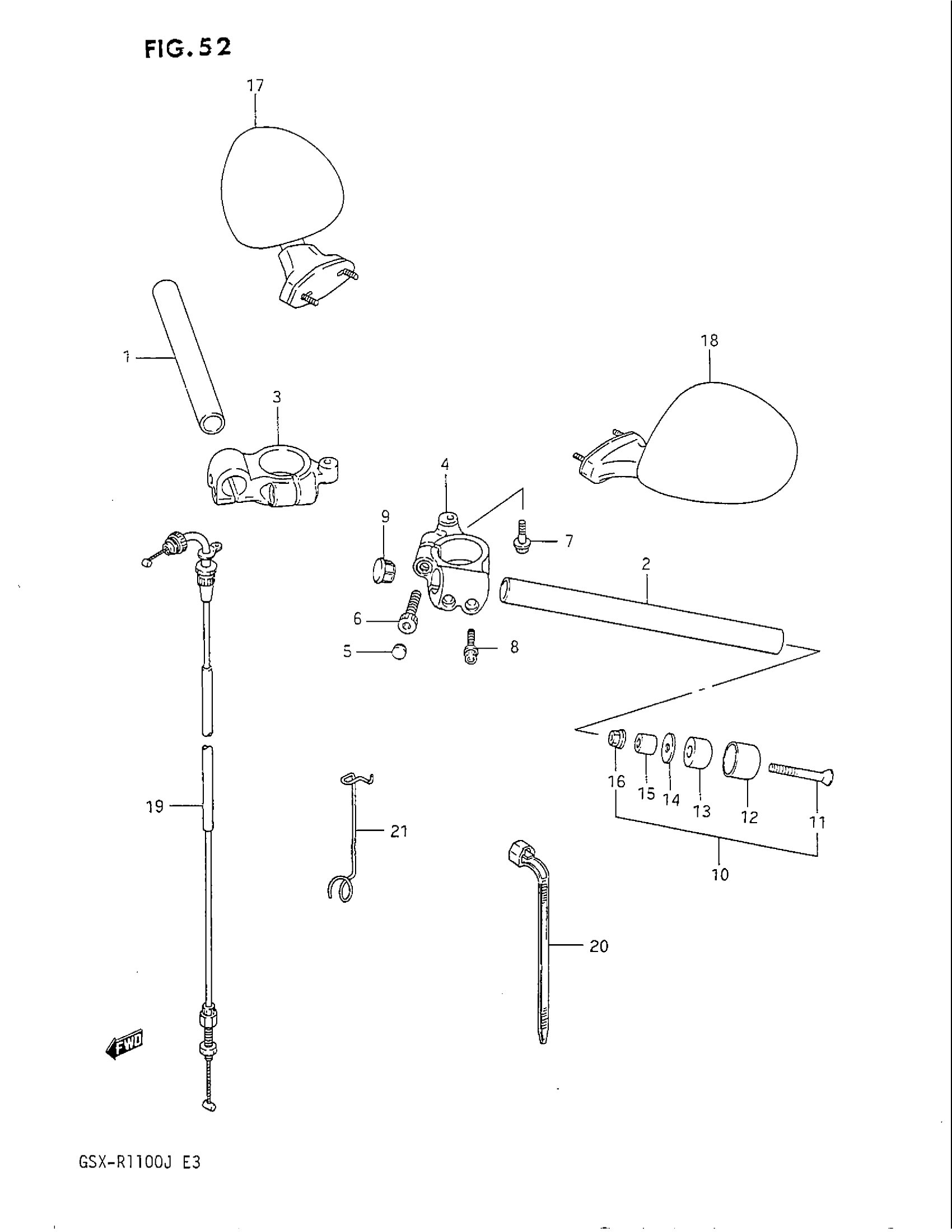

Suzuki GSX-R1100 (1988) HANDLEBAR Diagram

#

Description
Price

1

HANDLEBAR, RH

56110-06B00

Unavailable

2

HANDLEBAR, LH

56150-06B00

Unavailable

3

HOLDER, RH

56211-06B11

Unavailable

4

HOLDER, LH

56221-06B11

Unavailable

5

CAP This part replaces 09250-06008.

09250-06016

$1.96

6

BOLT This part replaces 07110-08355.

07130-0835B

$4.60

7

BOLT This part replaces 01517-06164.

01550-0616A

$1.97

8

BOLT This part replaces 07120-06355.

07120-0635B

$3.38

9

CAP, HANDLEBAR

57215-33400

$5.50

10

BALANCER SET, HANDLEBAR | MODEL G This part replaces 56200-27822.

56200-26850

Unavailable

10

BALANCER SET, HANDLEBAR | MODEL H/J; Includes Item(s) 11 - 16 This part replaces 56200-27830.

56200-26850

Unavailable

11

SCREW | MODEL G This part replaces 02132-06655.

02122-0665B

$2.76

11

SCREW | MODEL H/J This part replaces 02132-06755.

02132-0675B

$3.02

12

CAP This part replaces 56274-05350.

56274-31300

Unavailable

13

BALANCER

56271-49400

Unavailable

14

SPACER This part replaces 56275-34400.

56275-34401

$4.02

15

EXPANDER | MODEL G

56272-44500

$4.42

15

EXPANDER | MODEL H/J

56272-06B00

Unavailable

16

NUT

09159-06024

$2.11

17

MIRROR, REAR VIEW RH

56500-27A30

Unavailable

18

MIRROR, REAR VIEW LH

56600-27A30

Unavailable

19

CABLE, THROTTLE

58300-06B00

Unavailable

20

CLAMP

09407-18402

$2.19

21

GUIDE, CABLE

58874-18B00

Unavailable
