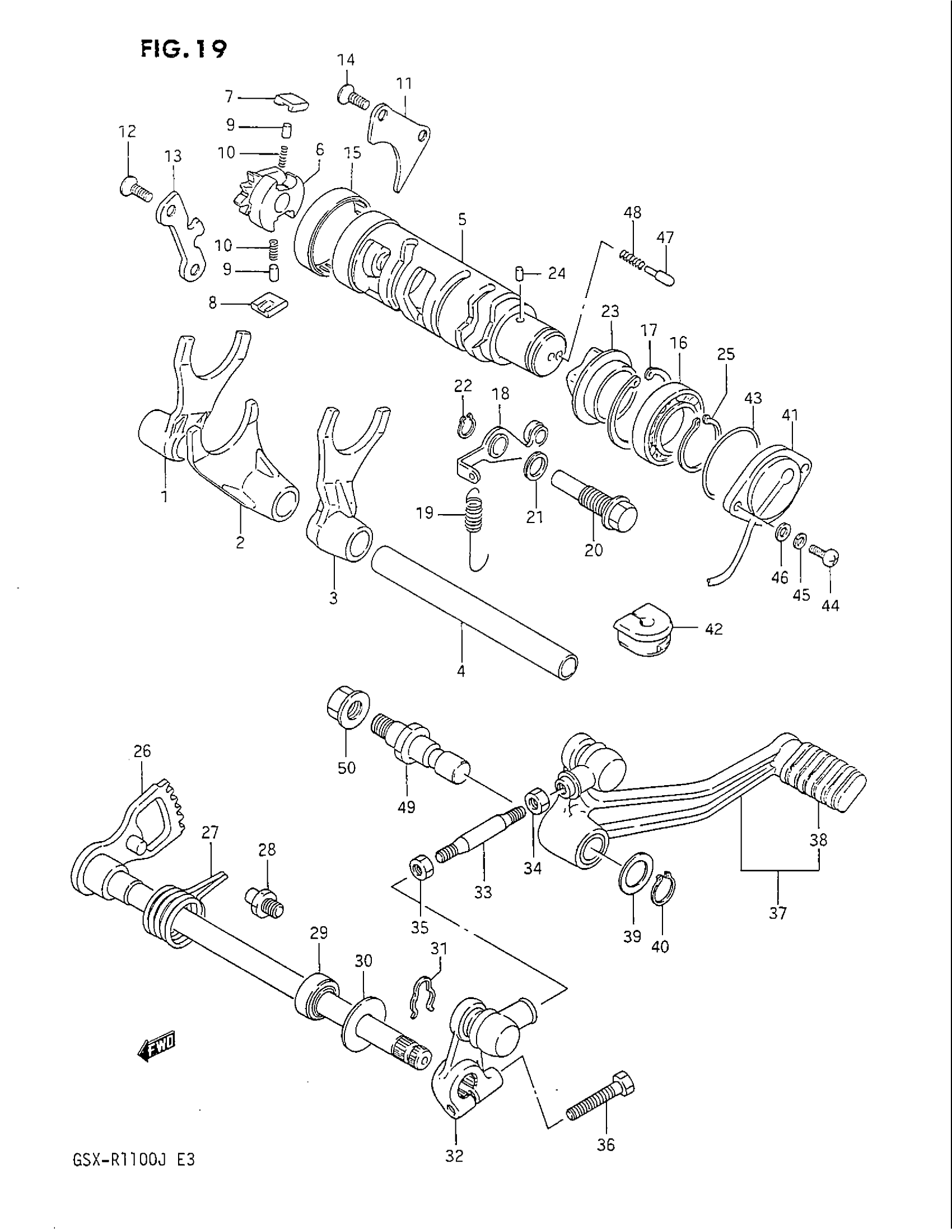

Suzuki GSX-R1100 (1988) GEAR SHIFTING Diagram

#

Description
Price

1

FORK, GEAR SHIFT NO.1 This part replaces 25211-06B01.

25211-06B02

$88.55

2

FORK, GEAR SHIFTING NO.2

25221-06B00

$90.25

3

FORK, GEAR SHIFTING NO.3

25231-06B00

$88.55

4

SHAFT, GEAR SHIFTING FORK

25411-27A00

$29.25

5

CAM, GEAR SHIFT | ~E.NO.108978 This part replaces 25310-06B01.

25310-06B03

$254.02

5

CAM, GEAR SHIFT | E.NO.108979~ This part replaces 25310-06B02.

25310-06B03

$254.02

6

GEAR, GEAR SHIFT CAM DRIVEN This part replaces 25322-31301.

25322-31310

$26.93

7

PAWL, GEAR SHIFT NO.1

25323-34201

$7.22

8

PAWL, GEAR SHIFT NO.2

25324-34201

$7.22

9

PIN

09261-05003

$1.54

10

SPRING

09440-04003

$1.54

11

LIFTER,GEAR SHI This part replaces 25331-31301.

25331-31310

$8.93

12

SCREW This part replaces 02122-06128.

02122-06127

$1.84

13

GUIDE, CAM

25341-27A00

Unavailable

14

SCREW This part replaces 02122-06128.

02122-06127

$1.84

15

BEARING, RH

09263-43001

$33.18

16

BEARING This part replaces 08110-69050.

08113-69050

$35.66

17

CIRCLIP This part replaces 08331-41428.

08331-41429

$2.41

18

STOPPER, CAM

25350-27A00

$16.87

19

SPRING

09443-09031

$3.13

20

SHAFT, STOPPER

25353-27A00

Unavailable

21

WASHER

09168-10002

$2.13

22

CIRCLIP This part replaces 08331-31086.

08331-31089

$1.78

23

PLATE, STOPPER

25381-38400

Unavailable

24

PIN This part replaces 06211-04063.

04221-04069

$2.12

25

CIRCLIP, REAR FINAL DRIVE This part replaces 08331-31258.

08331-31256

$1.49

26

SHAFT, GEAR SHIFT This part replaces 25510-27A00.

25510-19C01

Unavailable

27

SPRING

09444-26017

$4.60

28

STOPPER, ARM This part replaces 25671-01000.

25671-01011

$4.48

29

OIL SEAL (12X22X9) This part replaces 09285-12002.

09285-12006

$6.32

30

WASHER (12.5X26X1.6) This part replaces 09160-12020.

09160-12089

$1.97

31

CIRCLIP This part replaces 09384-12001.

08331-3112A

$1.78

32

ARM,GEAR SHIFT This part replaces 25520-33301.

25520-19C03

$34.66

33

ROD (L:59.5) This part replaces 25525-44100.

25525-44110

$7.36

34

NUT

09140-06011

$1.49

35

.NUT This part replaces 08310-11067.

08310-00067

$2.13

36

BOLT This part replaces 01107-06257.

01500-06257

$1.97

37

LEVER ASSY, GEAR SHIFTING | Includes Item(s) 38

25600-06B00

Unavailable

38

COVER

43151-04701

$5.80

39

WASHER (12.5X20X1)

09160-12011

$1.54

40

CIRCLIP This part replaces 08331-31128.

08331-3112A

$1.78

41

BODY, GEAR SHIFTING SWITCH | MODEL G

37720-09300

Unavailable

41

BODY, GEAR SHIFTING SWITCH | MODEL H/J

37720-48B00

$58.92

42

GROMMET, LEAD WIRE This part replaces 33885-27A00.

33885-27A01

$4.18

43

O RING (D:2.4,ID:36.2)

09280-36001

$3.29

44

SCREW

09125-05102

$1.61

45

LOCK WASHER This part replaces 08321-21057.

08321-0105A

$1.84

46

WASHER This part replaces 08322-21057.

08322-01057

$2.13

47

CONTACT

09209-05011

$2.20

48

SPRING

09440-04010

$1.54

49

SHAFT, LEVER

25617-20A00

$26.15

50

NUT, WHEEL SET This part replaces 08316-16108.

08316-10107

$2.39
