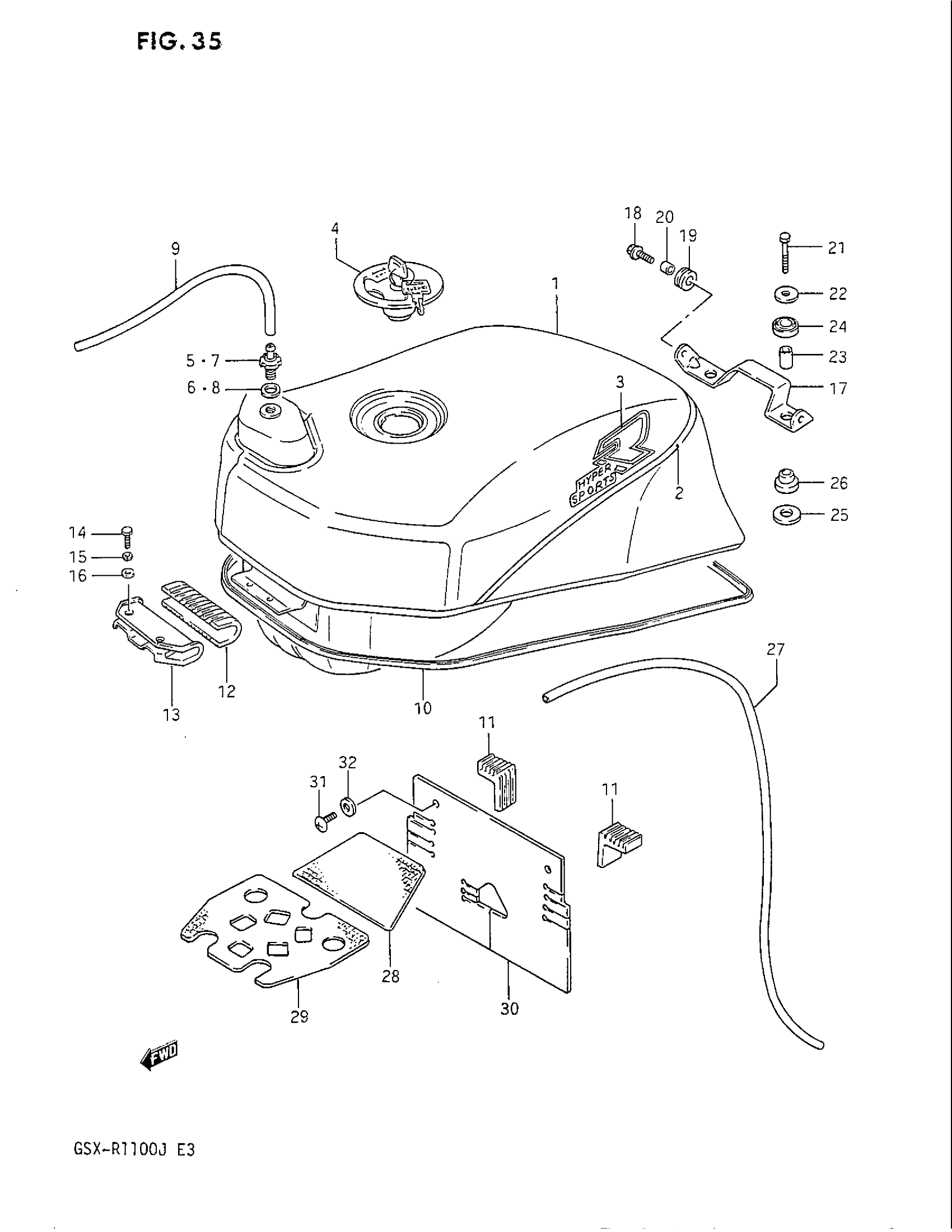

Suzuki GSX-R1100 (1988) FUEL TANK (MODEL J) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | OTHER THAN CALIFORNIA This part replaces 44100-06B70-9HD.

44110-06BV0-13L

Unavailable

1

NO DESCRIPTION AVAILABLE | OTHER THAN CALIFORNIA This part replaces 44100-06B70-9SR.

44110-06BV0-13L

Unavailable

1

NO DESCRIPTION AVAILABLE | CALIFORNIA ONLY This part replaces 44100-06B90-9HD.

44100-06B91-9HD

Unavailable

1

NO DESCRIPTION AVAILABLE | CALIFORNIA ONLY; Includes Item(s) 2 - 3 This part replaces 44100-06B90-9SR.

44110-06B11-13L

Unavailable

2

TAPE SET, FUEL TANK (RED) | FOR 9HD

68115-06B00-22P

Unavailable

2

TAPE SET, FUEL TANK (BLUE) | FOR 9SR

68115-06B00-33N

Unavailable

3

EMBLEM | FOR 9HD

68111-06B00-2GK

Unavailable

3

EMBLEM | FOR 9SR

68111-06B00-2GS

Unavailable

4

CAP SET, FUEL T This part replaces 44200-20A00-KEY.

44200-20841

Unavailable

5

PLUG, FUEL TANK BREATHER | OTHER THAN CALIFORNIA

44240-06B10

$38.33

6

GASKET | OTHER THAN CALIFORNIA

09168-12012

$1.83

7

(CA) VALVE, FUEL TANK BREATHE | CALIFORNIA ONLY

44240-28A01

Unavailable

8

(CA) GASKET | CALIFORNIA ONLY

09168-27001

Unavailable

9

HOSE This part replaces 09352-50823-890.

09352-50005-00B

$13.93

10

MOLDING This part replaces 68241-27A00.

68241-04X50-00B

$27.30

11

CUSHION, FUEL TANK SIDE

44545-27A10

Unavailable

12

CUSHION, FUEL TANK FRONT

44511-27A10

Unavailable

13

BRACKET, FUEL TANK FRONT

44521-27A00

Unavailable

14

BOLT, GEAR SHIFT LINK This part replaces 01107-06205.

01500-0620A

$1.78

15

LOCK WASHER This part replaces 08321-21064.

08321-0106A

$1.84

16

.WASHER This part replaces 08322-21064.

08322-0106B

$2.26

17

BRACKET, SEAT SUPPORT

45211-06B00

Unavailable

18

BOLT,6X20 This part replaces 09138-06042.

09118-06087-XC0

Unavailable

19

CUSHION (8.5X20X8) This part replaces 09320-08007.

09320-08510

$1.97

20

SPACER

09180-06038

$1.98

21

BOLT This part replaces 01107-06356.

01500-0635A

$2.19

22

WASHER, 6.5X24X1.6 This part replaces 09160-06072.

09160-06501

$1.86

23

SPACER This part replaces 09180-06072.

09180-06271

$2.35

24

CUSHION, REAR UPPER

09320-14017

$2.35

25

WASHER This part replaces 09160-12004.

09160-12088

$2.00

26

CUSHION, REAR LOWER

09320-10038

$2.61

27

HOSE This part replaces 09352-50823-890.

09352-50005-00B

$13.93

28

HEAT SHEILD,FRM This part replaces 44191-27A00.

47166-03D00

$23.76

29

NO DESCRIPTION AVAILABLE This part replaces 44192-27A00.

44192-27A01

Unavailable

30

HEAT SHIELD, REAR

44194-06B00

Unavailable

31

SCREW

02142-06207

$1.49

32

WASHER This part replaces 09160-06007.

09160-06084

$1.78
