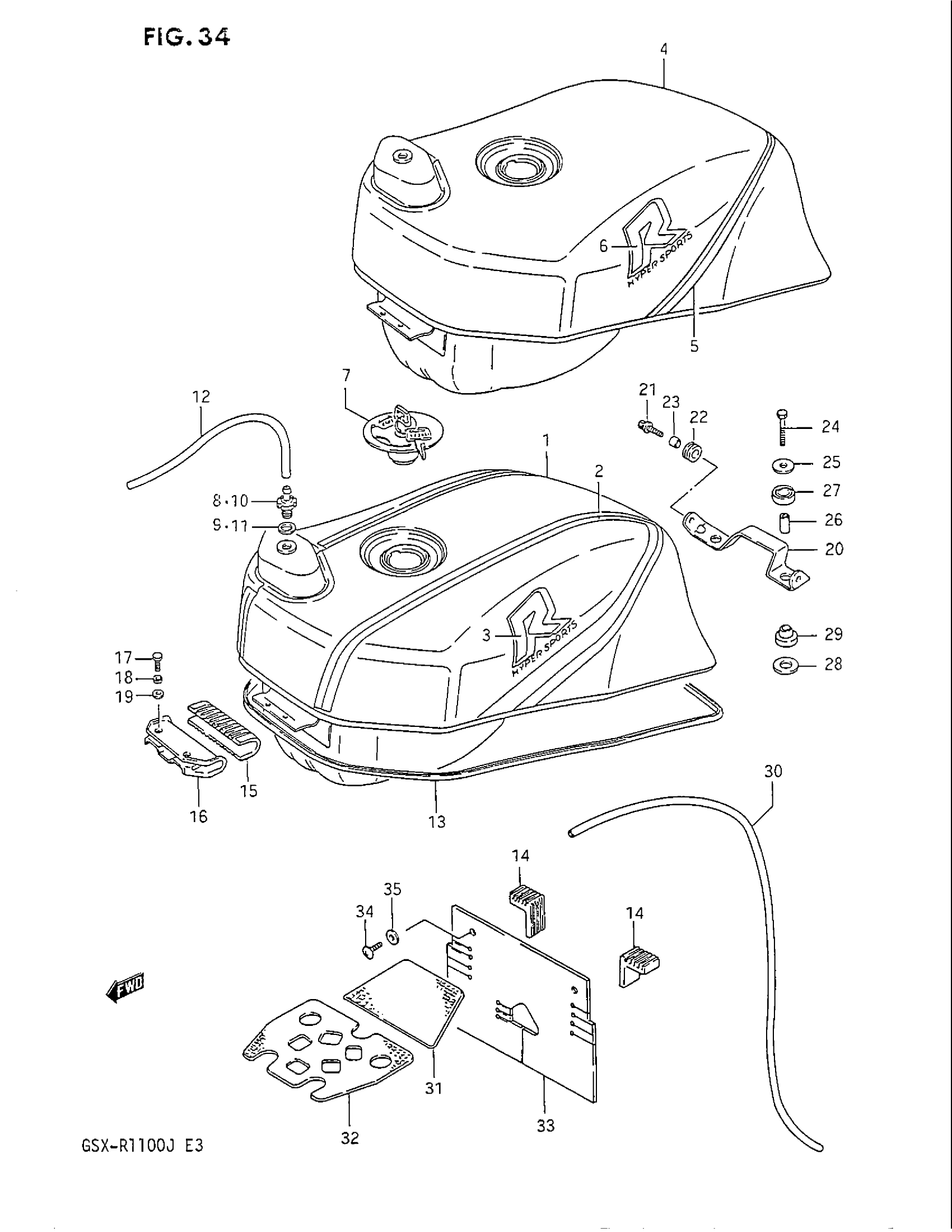

Suzuki GSX-R1100 (1988) FUEL TANK (MODEL G/H) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL GOTHER THAN CALIFORNIA This part replaces 44100-06B20-8JV.

44110-06BV0-13L

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL GOTHER THAN CALIFORNIA This part replaces 44100-06B20-8JW.

44110-06BV0-13L

Unavailable

1

(CA) TANK ASSY, FUEL | MODEL G,CALIFORNIA ONLY

44100-06B30-8JV

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL G,CALIFORNIA ONLY; Includes Item(s) 2 - 3 This part replaces 44100-06B30-8JW.

44100-06B31-8JW

Unavailable

2

TAPE SET, FUEL TANK | MODEL G FOR 8JV

68110-06B11-8KA

Unavailable

2

TAPE SET, FUEL TANK | MODEL G FOR 8JW

68110-06B11-8KB

Unavailable

3

EMBLEM | MODEL G This part replaces 68111-27A00-8KC.

68111-27A00-8SP

Unavailable

4

NO DESCRIPTION AVAILABLE | MODEL HOTHER THAN CALIFORNIA This part replaces 44100-06B40-9HD.

44110-06BV0-13L

Unavailable

4

NO DESCRIPTION AVAILABLE | MODEL HOTHER THAN CALIFORNIA This part replaces 44100-06B40-9HJ.

44110-06BV0-13L

Unavailable

4

NO DESCRIPTION AVAILABLE | MODEL H,CALIFORNIA ONLY This part replaces 44100-06B60-9HD.

44100-06B61-9HD

Unavailable

4

NO DESCRIPTION AVAILABLE | MODEL H,CALIFORNIA ONLY; Includes Item(s) 5 - 6 This part replaces 44100-06B60-9HJ.

44100-06B61-9HD

Unavailable

5

TAPE SET, FUEL TANK | MODEL H FOR 9HD

68110-27A40-9HU

Unavailable

5

TAPE SET, FUEL TANK | MODEL H FOR 9HJ

68110-27A40-9HT

Unavailable

6

EMBLEM | MODEL H FOR 9HD

68111-27A00-8SP

Unavailable

6

EMBLEM | MODEL H FOR 9HJ

68111-27A00-9HJ

Unavailable

7

CAP SET, FUEL T This part replaces 44200-20A00-KEY.

44200-20841

Unavailable

8

PLUG, FUEL TANK BREATHER | OTHER THAN CALIFORNIA

44240-06B10

$38.33

9

GASKET | OTHER THAN CALIFORNIA

09168-12012

$1.83

10

(CA) VALVE, FUEL TANK BREATHE | CALIFORNIA ONLY

44240-28A01

Unavailable

11

(CA) GASKET | CALIFORNIA ONLY

09168-27001

Unavailable

12

HOSE This part replaces 09343-05165.

09352-50005-00B

$13.93

13

MOLDING This part replaces 68241-27A00.

68241-04X50-00B

$27.30

14

CUSHION, FUEL TANK SIDE

44545-27A10

Unavailable

15

CUSHION, FUEL TANK FRONT

44511-27A10

Unavailable

16

BRACKET, FUEL TANK FRONT

44521-27A00

Unavailable

17

BOLT, GEAR SHIFT LINK This part replaces 01107-06205.

01500-0620A

$1.78

18

LOCK WASHER This part replaces 08321-21064.

08321-0106A

$1.84

19

.WASHER This part replaces 08322-21064.

08322-0106B

$2.26

20

BRACKET, SEAT SUPPORT

45211-06B00

Unavailable

21

BOLT,6X20 This part replaces 09138-06042.

09118-06087-XC0

Unavailable

22

CUSHION (8.5X20X8) This part replaces 09320-08007.

09320-08510

$1.97

23

SPACER

09180-06038

$1.98

24

BOLT This part replaces 01107-06356.

01500-0635A

$2.19

25

WASHER, 6.5X24X1.6 This part replaces 09160-06072.

09160-06501

$1.86

26

SPACER This part replaces 09180-06072.

09180-06271

$2.35

27

CUSHION, REAR UPPER

09320-14017

$2.35

28

WASHER This part replaces 09160-12004.

09160-12088

$2.00

29

CUSHION, REAR LOWER

09320-10038

$2.61

30

HOSE This part replaces 09343-05165.

09352-50005-00B

$13.93

31

HEAT SHEILD,FRM This part replaces 44191-27A00.

47166-03D00

$23.76

32

NO DESCRIPTION AVAILABLE This part replaces 44192-27A00.

44192-27A01

Unavailable

33

HEAT SHIELD, REAR

44194-06B00

Unavailable

34

SCREW

02142-06207

$1.49

35

WASHER This part replaces 09160-06007.

09160-06084

$1.78
