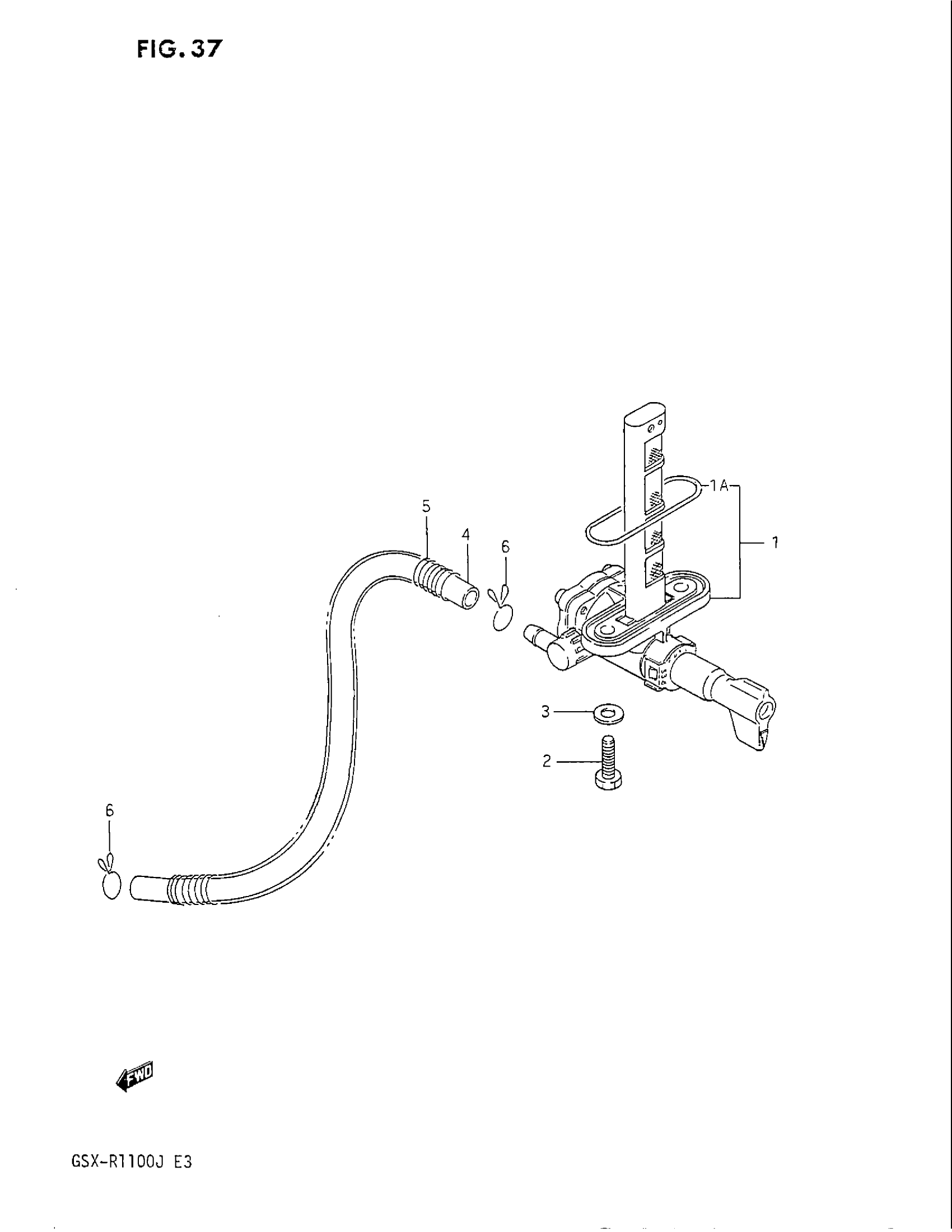

Suzuki GSX-R1100 (1988) FUEL COCK Diagram

#

Description
Price

1

COCK ASSY,FUEL | MODEL G This part replaces 44300-28A01.

44300-28A03

Unavailable

1

COCK ASSY,FUEL | MODEL H/J; Includes Item(s) 1A This part replaces 44300-28A02.

44300-28A03

Unavailable

1A

O RING This part replaces 44348-49170.

44348-49171

$2.88

2

BOLT This part replaces 09128-06006.

09128-06057

$1.65

3

GASKET (5.8X13X1.2) This part replaces 09168-06010.

09168-06023

$2.35

4

HOSE(7X10.2X200 | MODEL G This part replaces 09343-07073.

09352-70104-00B

$15.32

4

HOSE(7X10.2X200 | MODEL H This part replaces 09343-07152.

09352-70104-00B

$15.32

4

HOSE(7X10.2X200 | MODEL J This part replaces 09352-70103-28A.

09352-70104-00B

$15.32

5

SPRING This part replaces 09440-13020.

09440-13051

$10.76

6

CLIP | MODEL G This part replaces 09401-11410.

09401-11413

$2.26

6

CLIP | MODEL H/J

09401-10402

$2.42
