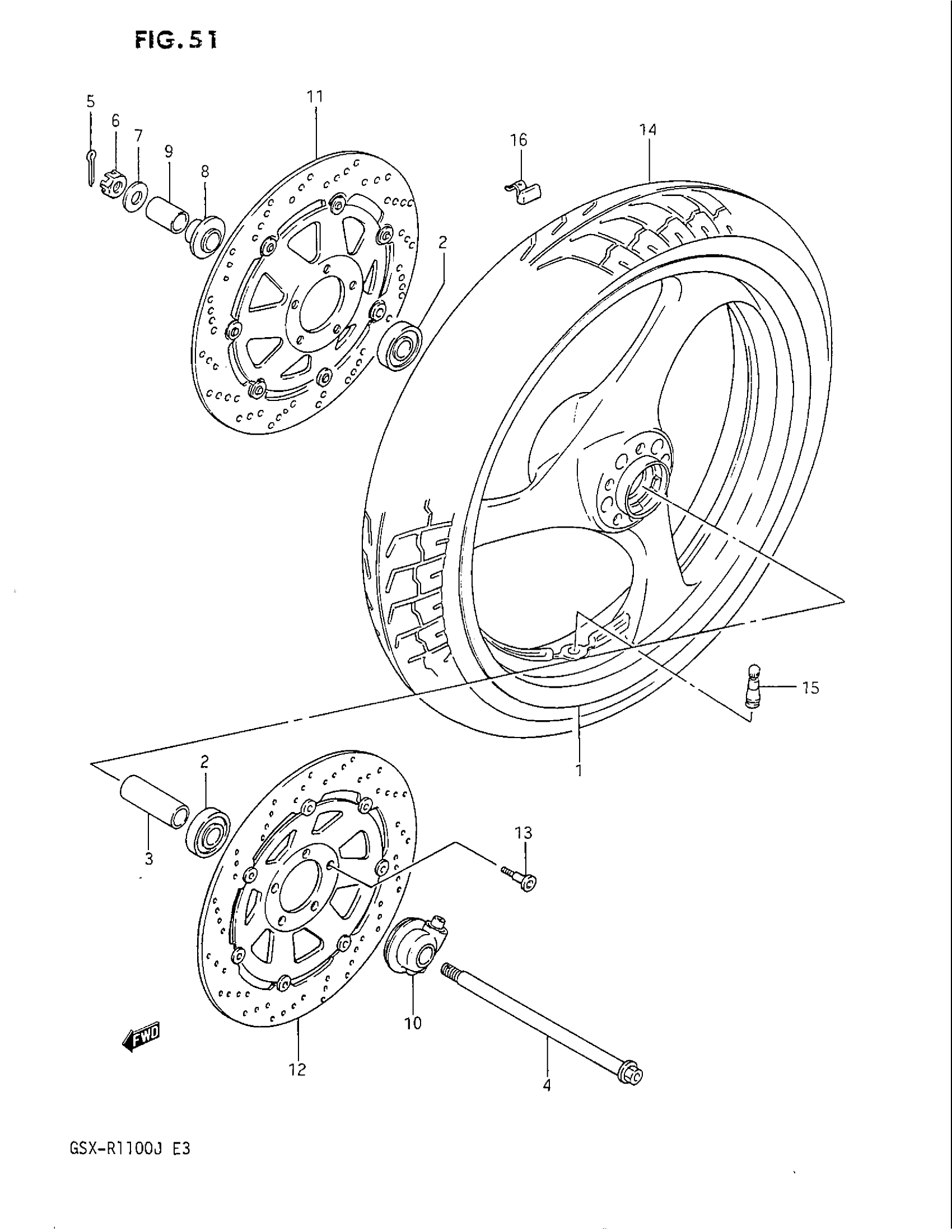

Suzuki GSX-R1100 (1988) FRONT WHEEL (MODEL J) Diagram

#

Description
Price

1

WHEEL, FRONT (2.75X18) WHITE

54111-06B10-28W

Unavailable

2

BEARING This part replaces 08123-63037.

08123-6303B

$15.56

3

SPACER

09180-17093

Unavailable

4

AXLE, FRONT

54711-27A20

Unavailable

5

PIN, REAR AXLE This part replaces 04111-40308.

04111-4030A

$1.49

6

NUT This part replaces 09141-16005.

09141-16002-XC0

Unavailable

7

WASHER This part replaces 08322-11168.

08322-01167

$2.10

8

SPACER, BEARING RH

54740-06B00

Unavailable

9

SPACER, AXLE (17X22X42)

54741-27A20

Unavailable

10

BOX ASSY, SPEEDOMETER GEAR This part replaces 54600-06B10.

54600-06B13

Unavailable

11

DISC, FRONT BRAKE RH

59210-06B01

Unavailable

12

DISC, FRONT BRAKE LH

59220-06B01

Unavailable

13

BOLT (8X33) This part replaces 09106-08062.

09106-08148

$4.80

14

TIRE, T/L FRONT (110/70V-18) | DUNLOP

55100-06B21

Unavailable

15

VALVE ASSY, WHEEL RIM This part replaces 43130-75150.

43130-78030

$9.25

16

BALANCER (10G) BLACK

55411-00A00

$1.49

16

BALANCER, WHEEL NO.2 This part replaces 55412-00A00.

55412-17G00

$7.05

16

BALANCER (30G) This part replaces 55413-00A00.

55413-00A01

Unavailable
