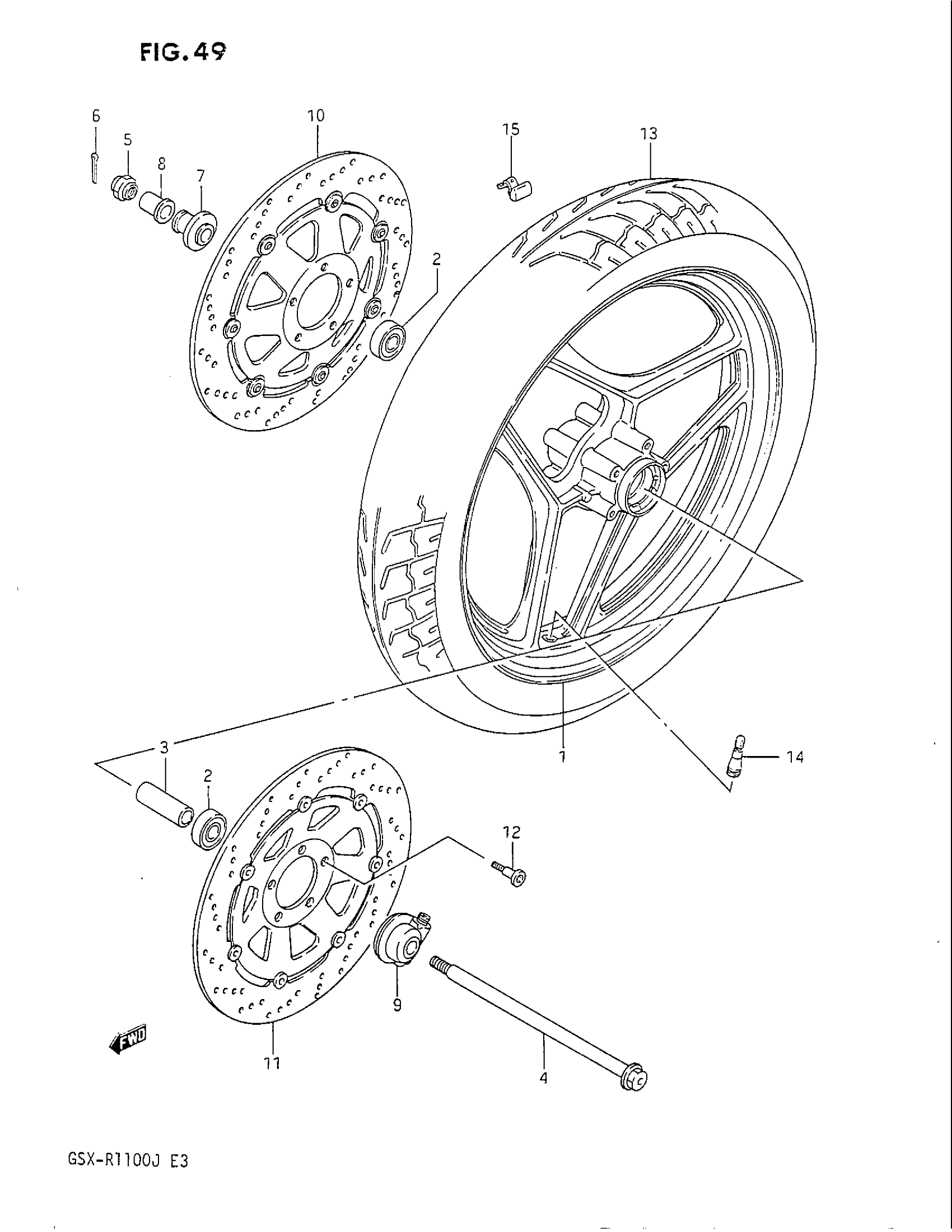

Suzuki GSX-R1100 (1988) FRONT WHEEL (MODEL G) Diagram

#

Description
Price

1

WHEEL, FRONT (2.75X18) BLACK

54111-06B00-291

Unavailable

2

BEARING This part replaces 08123-63027.

08123-6302B

$22.74

3

SPACER

09180-15069

$15.83

4

AXLE, FRONT

54711-27A00

Unavailable

5

NUT

09159-12018

Unavailable

6

PIN This part replaces 04111-30308.

04111-3030A

$1.49

7

SPACER, BEARING RH

54740-27A01

Unavailable

8

SPACER, AXLE

54741-49101

Unavailable

9

BOX ASSY SPEEDO This part replaces 54600-27A01.

54600-27A03

Unavailable

10

DISC, FRONT BRAKE RH This part replaces 59210-06B00.

59210-06B01

Unavailable

11

DISC, FRONT BRAKE LH This part replaces 59220-06B00.

59220-06B01

Unavailable

12

BOLT (8X33) This part replaces 09106-08062.

09106-08148

$4.80

13

TIRE, T/L FRONT (110/70V-18) | DUNLOP

55100-06B21

Unavailable

14

VALVE ASSY, WHEEL RIM This part replaces 43130-75150.

43130-78030

$9.25

15

BALANCER (10G) This part replaces 55411-00A00-291.

55411-00A00

$1.49

15

BALANCER, WHEEL NO.2 This part replaces 55412-00A00-291.

55412-17G00

$7.05

15

BALANCER (30G) This part replaces 55413-00A00-291.

55413-00A01

Unavailable
