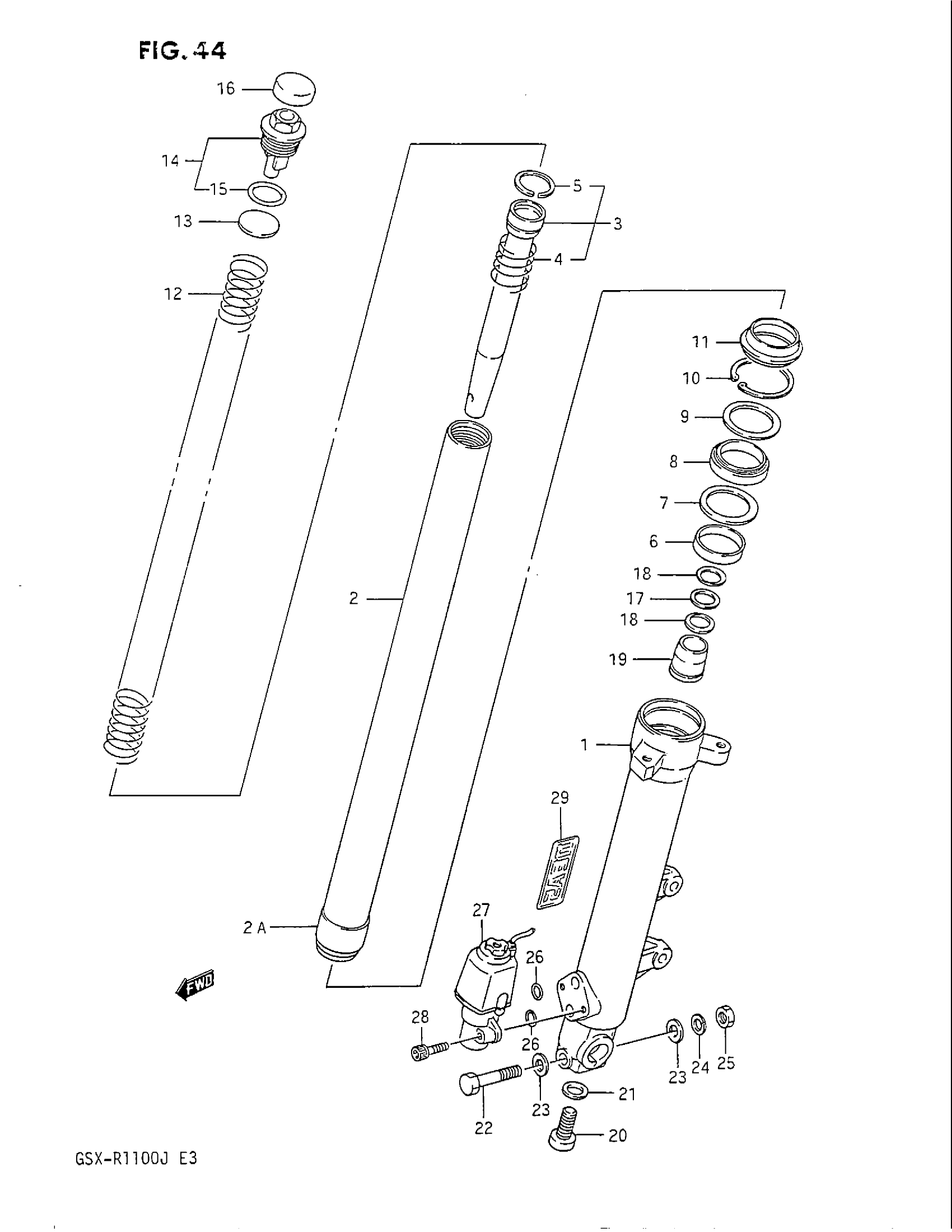

Suzuki GSX-R1100 (1988) FRONT RIGHT DAMPER Diagram

#

Description
Price

NO DESCRIPTION AVAILABLE | MODEL G This part replaces 51103-06B20.

51103-06B21

Unavailable

DAMPER ASSY, RH | MODEL H This part replaces 51103-06B50.

51103-06B51

Unavailable

DAMPER ASSY, RH | MODEL J; Includes Item(s) 1 - 29

51103-06B51

Unavailable

1

TUBE, OUTER RH | MODEL G

51130-06B00

Unavailable

1

TUBE, OUTER RH | MODEL H/J

51130-28A10

Unavailable

2

TUBE, INNER

51110-06B00

Unavailable

2A

PISTON | MODEL J

51121-05A00

Unavailable

3

CYLINDER

51146-06B00

Unavailable

4

SPRING, REBOUND

51177-06B00

Unavailable

5

RING, PISTON

51196-24A00

Unavailable

6

METAL, SLIDE This part replaces 51167-05A00.

51167-26E10

$24.52

7

WASHER

51158-05A00

$5.83

8

SEAL, OIL This part replaces 51153-05A00.

51153-27C20

$13.63

9

WASHER

51158-27A00

Unavailable

10

SNAP RING

51156-49440

$5.05

11

.SEAL, DUST This part replaces 51173-05A00.

51173-14F00

$23.07

12

SPRING

51171-06B00

Unavailable

13

WASHER

51192-27A00

$6.47

14

CAP

51351-27A00

Unavailable

15

O RING

51117-24A00

Unavailable

16

CAP

51189-00A00

Unavailable

17

WASHER

51123-27A00

Unavailable

18

SPRING, LEAF

51125-27A00

Unavailable

19

PIECE, OIL LOCK

51195-27A00

Unavailable

20

BOLT, CYLINDER

51147-14200

Unavailable

21

GASKET

51148-14200

$2.47

22

BOLT This part replaces 01107-10608.

01500-1060A

$4.41

23

WASHER This part replaces 08322-11107.

08322-01107

$2.15

24

LOCK WASHER This part replaces 08321-31108.

08321-01107

$1.84

25

NUT This part replaces 08310-12108.

08310-00107

$2.19

26

O RING (D:2.5,ID:13.8) This part replaces 51799-06B00.

09280-14011

$4.77

27

P.D.F ASSY | MODEL G

51770-06B00

Unavailable

27

P.D.F ASSY | MODEL H/J

51770-28A10

Unavailable

28

BOLT This part replaces 07110-06257.

07130-06257

$3.16

29

EMBLEM, NEAS

68681-06B00

Unavailable
