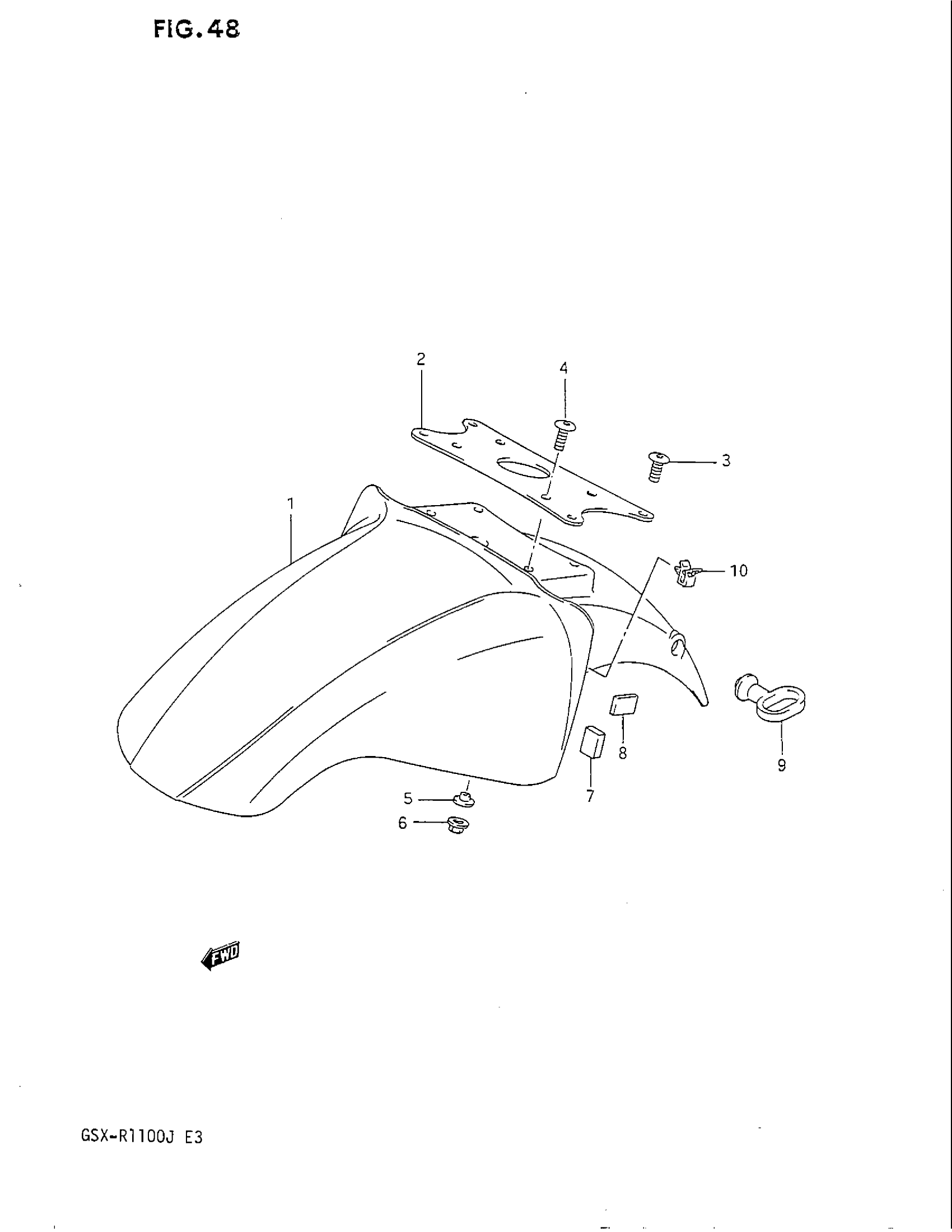

Suzuki GSX-R1100 (1988) FRONT FENDER (MODEL H/J) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL H This part replaces 53111-28A21-22P.

53111-28A51-22P

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL H This part replaces 53111-28A21-22R.

53111-28A51-13L

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL J,FOR 9HD This part replaces 53111-28A21-22P.

53111-28A51-22P

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL J,FOR 9SR This part replaces 53111-28A21-33N.

53111-28A51-13L

Unavailable

2

BRACE, FRONT FENDER

53114-06B00

Unavailable

3

SCREW

09139-08007

$3.70

4

SCREW, FENDER & BRACE

09139-05025

$2.05

5

WASHER

09169-05008

$2.47

6

NUT This part replaces 08319-31056.

08319-3105B

$3.55

7

CUSHION, FENDER FRONT

53145-28A00

Unavailable

8

CUSHION, FENDER SIDE

53431-28A10

Unavailable

9

GUIDE, METER CABLE This part replaces 58621-21203.

58621-21204

$6.68

10

CLIP

09403-05305

Unavailable
