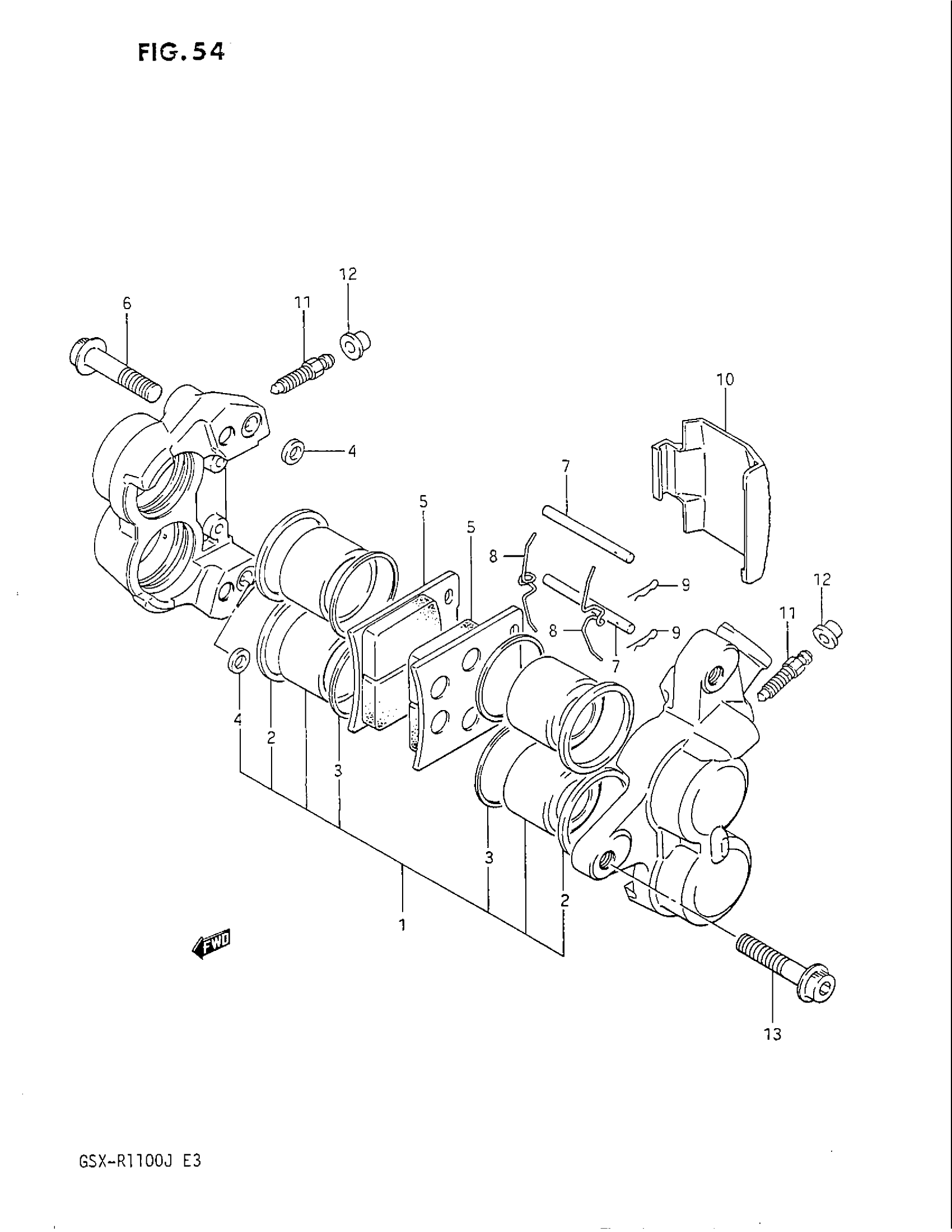

Suzuki GSX-R1100 (1988) FRONT CALIPERS Diagram

#

Description
Price

NO DESCRIPTION AVAILABLE This part replaces 59100-06B10.

59100-06B20

Unavailable

NO DESCRIPTION AVAILABLE | Includes Item(s) 1 - 12 This part replaces 59300-06B10.

59300-06B20

Unavailable

1

PISTON SET This part replaces 59300-27820.

59300-27821

Unavailable

2

SEAL,PISTON This part replaces 59107-27A10.

59107-27A20

$13.30

3

SEAL, WIPER

59108-27A10

$10.09

4

SEAL

69107-34200

$10.71

5

NO DESCRIPTION AVAILABLE This part replaces 59130-06B10.

59100-06820

Unavailable

6

BOLT

59145-16700

$8.83

7

PIN

69141-45000

$5.17

8

SPRING

59143-16700

$5.80

9

.CLIP, PAD PIN

69142-45000

$4.34

10

COVER

59151-04A01

$38.31

11

BLEEDER

59121-18410

$8.73

12

CAP, BLEEDER This part replaces 59122-18410.

55156-66310

$5.17

13

BOLT 8X35 This part replaces 07120-08358.

07120-08357

$3.20
