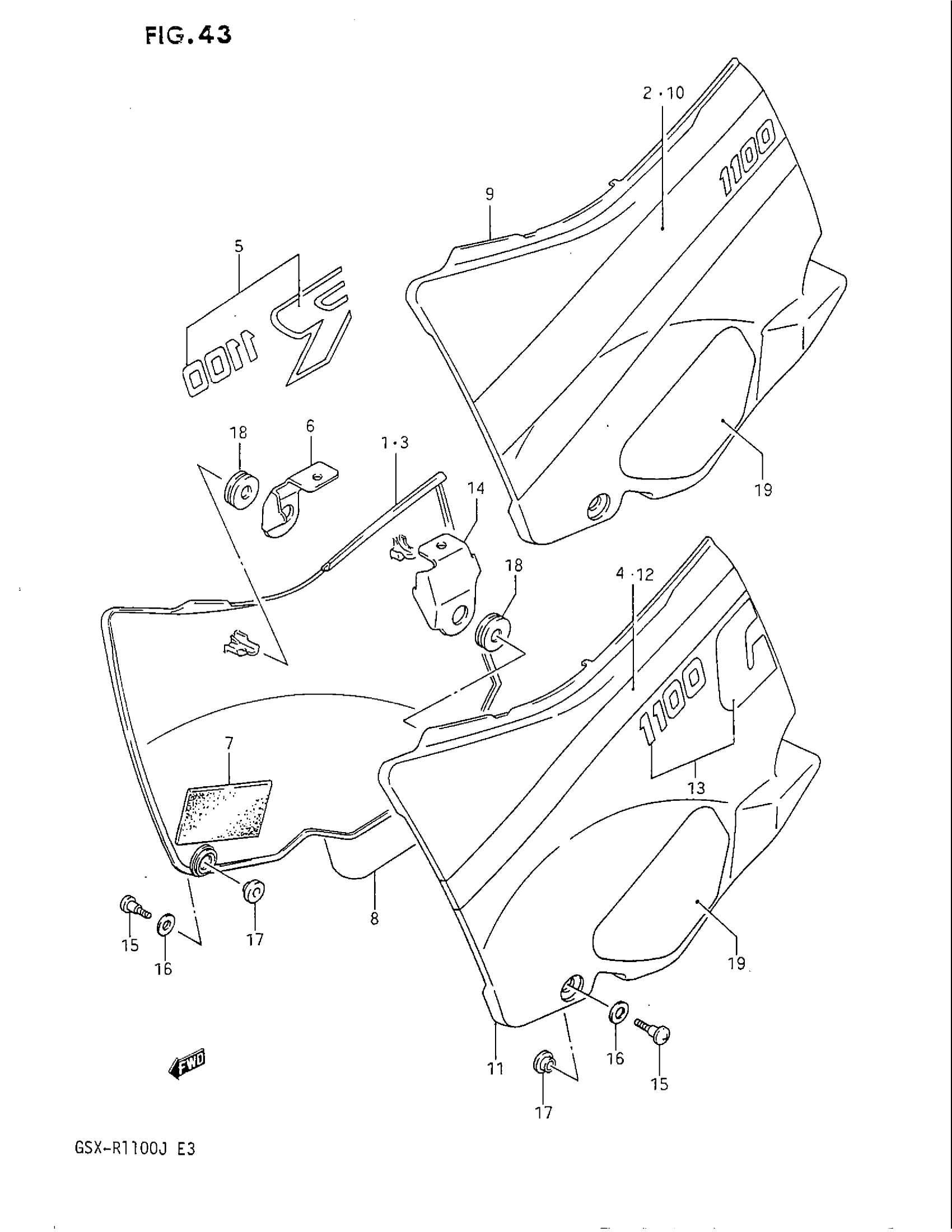

Suzuki GSX-R1100 (1988) FRAME COVER (MODEL J) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | FOR 9HD; Includes Item(s) 2 This part replaces 47110-06B20-22P.

47111-27A02

Unavailable

2

TAPE SET, FRAME COVER RH | FOR 22P

68135-06B00-2GL

Unavailable

3

COVER, FRAME RH (BLUE/BLUE) | FOR 9SR; Includes Item(s) 4 - 5

47110-06B30-2FF

Unavailable

4

TAPE SET, FRAME COVER RH | FOR 2FF

68135-06B10-22R

Unavailable

5

EMBLEM, RH (WHITE) | FOR 2FF

68131-06B00-22R

Unavailable

6

HOLDER, FRAME COVER RH

47141-06B01

Unavailable

7

RUBBER

47161-27A00

Unavailable

8

PROTECTOR, LH This part replaces 47261-06B00.

47261-27A00

Unavailable

9

COVER, FRAME, L | FOR 9HD; Includes Item(s) 10 This part replaces 47210-06B20-22P.

47211-27A02

Unavailable

10

TAPE SET, FRAME COVER LH | FOR 22P

68145-06B00-2GL

Unavailable

11

COVER, FRAME LH (BLUE/BLUE) | FOR 9SR; Includes Item(s) 12 - 13

47210-06B30-2FF

Unavailable

12

TAPE SET, FRAME COVER LH | FOR 2FF

68145-06B10-22R

Unavailable

13

EMBLEM, LH (WHITE) | FOR 2FF

68141-06B00-22R

Unavailable

14

HOLDER, FRAME COVER LH

47171-06B01

Unavailable

15

SCREW

09139-06044

$4.60

16

WASHER This part replaces 08322-11084.

08322-0108A

$1.92

17

CUSHION

09320-08043

Unavailable

18

CUSHION

09320-08018

$3.04

19

PROTECTOR, LH

47261-27A00

Unavailable
